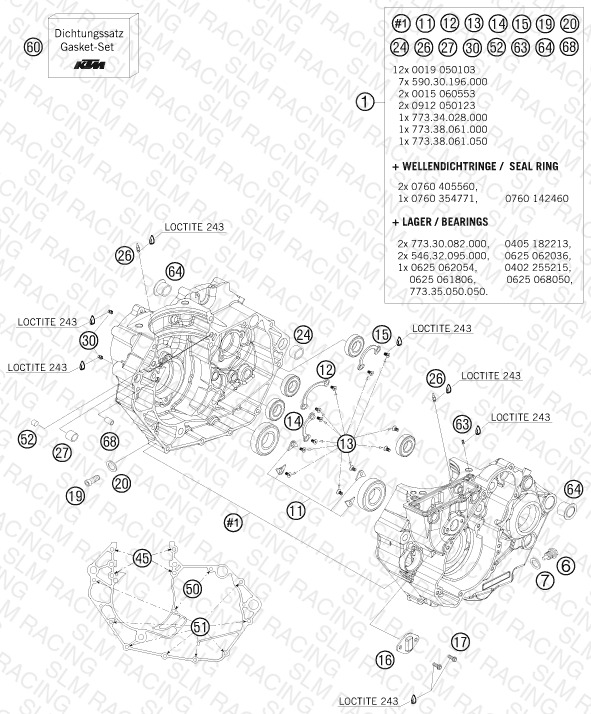

ENGINE CASE
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77330000244 ENGINE CASE CPL. W.TR.BEAR. 08 | ENGINE CASE CPL. W.TR.BEAR. 08 | 1 | — | Obsolete | View Details |
| 6 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 7 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 11 | 77330085000 BUSHING RETAINING PLATE | BUSHING RETAINING PLATE | 4 | $4.99 | Available | 4 |
| 12 | 77333022100 BUSHING RETAINING PLATE | BUSHING RETAINING PLATE | 1 | $4.99 | Available | 1 |
| 13 | 0019050103 INT TORX FLAT HEAD M 5X10 8.8 | INT TORX FLAT HEAD M 5X10 8.8 | 4 | $2.99 | Available | 4 |
| 14 | 77334090000 BUSHING RETAINING PLATE | BUSHING RETAINING PLATE | 1 | $4.99 | Available | 1 |
| 15 | 77333024100 BUSHING RETAINING PLATE | BUSHING RETAINING PLATE | 1 | $4.99 | Out of Stock | Notify Me |
| 16 | 77336075050 RETAINING PLATE | RETAINING PLATE | 1 | $6.15 | Out of Stock | Notify Me |
| 17 | 0015050103 HH COLLAR SCREW M 5X10 WS=8 | HH COLLAR SCREW M 5X10 WS=8 | 3 | — | Obsolete | View Details |
| 19 | 0012080203 AH SCREW DIN6912-M 8X20 | AH SCREW DIN6912-M 8X20 | 1 | $1.99 | Available | 1 |
| 20 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 2 | $3.99 | Available | 2 |
| 24 | 59030024000 DOWEL 17 X 19 X 12 | DOWEL 17 X 19 X 12 | 1 | $6.15 | Available | 1 |
| 26 | 60030063050 oil jet 50 M5 | oil jet 50 M5 | 1 | $11.10 | Available | 1 |
| 27 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | $8.13 | Available | 1 |
| 30 | 59030058000 JET 100 BING(44-031/180) M4 | JET 100 BING(44-031/180) M4 | 2 | $4.99 | Available | 2 |
| 45 | 77330067170 SCREW M7-1,0X70 | SCREW M7-1,0X70 | 4 | $4.99 | Available | 4 |
| 50 | 0015060703 HH COLLAR SCREW M 6X70 WS=8 | HH COLLAR SCREW M 6X70 WS=8 | 4 | $3.99 | Available | 4 |
| 51 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 5 | — | Obsolete | View Details |
| 52 | 0402080120 CYLINDER ROLLER ZRO. 8,0X12 M4 | CYLINDER ROLLER ZRO. 8,0X12 M4 | 3 | $2.99 | Available | 3 |
| 60 | 77330099000 GASKET SET 450/505 SX-F | GASKET SET 450/505 SX-F | 1 | $455.61 | Available | 1 |
| 63 | 77338029052 THROTTLE M5X10X1 | THROTTLE M5X10X1 | 1 | $11.65 | Available | 1 |
| 64 | 75030010000 CASE BUSH | CASE BUSH | 2 | $10.11 | Available | 2 |
| 68 | 59030023000 dowel sleeve 6x8x11.5 | dowel sleeve 6x8x11.5 | 2 | $1.99 | Available | 2 |
