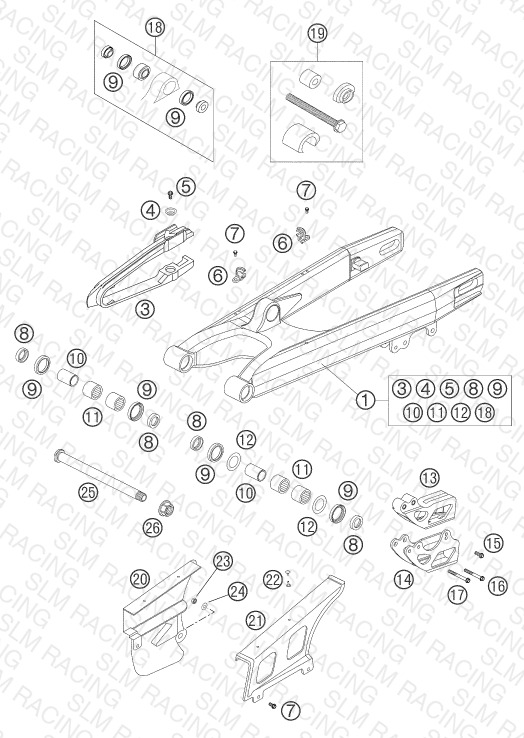

SWING ARM
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 59404030044 SWINGARM CPL. SX RACING 04 | SWINGARM CPL. SX RACING 04 | 1 | — | Obsolete | View Details |
| 3 | 50304066000 CHAIN GUARD '97 | CHAIN GUARD '97 | 1 | $30.02 | Available | 1 |
| 4 | 72210079000 BUCKET | BUCKET | 2 | $3.99 | Available | 2 |
| 5 | 0015060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 1 | $3.99 | Available | 1 |
| 6 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE'96 | RETAIN.CLAMP FOR BRAKE HOSE'96 | 2 | $2.99 | Available | 2 |
| 7 | 0009050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 2 | $2.99 | Available | 2 |
| 8 | 54804034000 Bucket f. shaft seal ring 03 | Bucket f. shaft seal ring 03 | 4 | $15.83 | Available | 4 |
| 9 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 10 | 59404032000 Bearing sleeve 17x22x38.7 03 | Bearing sleeve 17x22x38.7 03 | 2 | $11.87 | Available | 2 |
| 11 | 59004031100 NEEDLE BEARING HK2212V | NEEDLE BEARING HK2212V | 4 | $6.71 | Out of Stock | Notify Me |
| 12 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 13 | 54607066100 CHAIN GUIDE REAR '94 | CHAIN GUIDE REAR '94 | 1 | $33.65 | Available | 1 |
| 14 | 54607070144 RETAINING PLATE CPL. | RETAINING PLATE CPL. | 1 | $36.95 | Available | 1 |
| 15 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 16 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 6 | $3.99 | Available | 6 |
| 17 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 5 | — | Obsolete | View Details |
| 18 | 50304090044 PIVOT BEARING+BUSH. PDS '99 | PIVOT BEARING+BUSH. PDS '99 | 1 | $76.11 | Available | 1 |
| 19 | 50329000044 TOOL BEARING MOUNTING PDS | TOOL BEARING MOUNTING PDS | 1 | $632.71 | Out of Stock | Notify Me |
| 20 | 50304060100 CHAIN GUARD SMALL EXC 2000 | CHAIN GUARD SMALL EXC 2000 | 1 | — | Obsolete | View Details |
| 21 | 54607460000 CHAIN GUARD LARGE EGS | CHAIN GUARD LARGE EGS | 1 | — | Obsolete | View Details |
| 22 | 20012062055 HOLLOW RIVET TWO PARTS | HOLLOW RIVET TWO PARTS | 2 | $3.99 | Available | 2 |
| 23 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 24 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 2 | $2.99 | Available | 2 |
| 25 | 54804037000 SWINGARM BOLT M16X1,5 03 | SWINGARM BOLT M16X1,5 03 | 1 | $66.65 | Available | 1 |
| 26 | 54804038000 Nut with flange M16X1,5 WS=19 | Nut with flange M16X1,5 WS=19 | 1 | $2.99 | Available | 1 |
