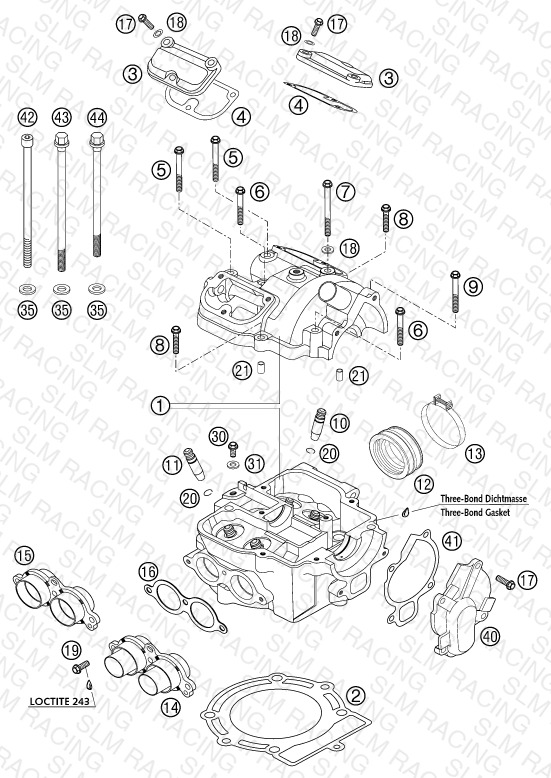

CYLINDER HEAD
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 59036020144 CYL HEAD CPL.450/520 03 | CYL HEAD CPL.450/520 03 | 1 | — | Obsolete | View Details |
| 1 | 59436020044 CYL. HEAD CPL. 450/525 SX 04 | CYL. HEAD CPL. 450/525 SX 04 450/525 SX | 1 | — | Obsolete | View Details |
| 1 | 59836020144 CYLINDER HEAD CPL. 250 4-ST 03 | CYLINDER HEAD CPL. 250 4-ST 03 250 EXC | 1 | — | Obsolete | View Details |
| 2 | 59030036000 CYLINDER HEAD GASKET 95,3 MM | CYLINDER HEAD GASKET 95,3 MM | 1 | $51.36 | Available | 1 |
| 2 | 59530036000 CYLINDER HEAD GASKET 89,3 MM | CYLINDER HEAD GASKET 89,3 MM | 1 | $49.38 | Available | 1 |
| 2 | 59830036000 CYLINDER HEAD GASKET D=75 02 | CYLINDER HEAD GASKET D=75 02 | 1 | — | Obsolete | View Details |
| 3 | 58036052000 VALVE COVER REAR | VALVE COVER REAR | 1 | — | Obsolete | View Details |
| 4 | 58036053000 VALVE COVER GASKET | VALVE COVER GASKET | 2 | $4.99 | Available | 2 |
| 5 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 5 | — | Obsolete | View Details |
| 6 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 1 | $2.99 | Available | 1 |
| 7 | 0015060753 HH COLLAR SCREW M 6X75 WS=8 | HH COLLAR SCREW M 6X75 WS=8 | 1 | $3.99 | Available | 1 |
| 8 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 9 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 6 | $3.99 | Available | 6 |
| 10 | 59036025000 VALVE GUIDE INTAKE | VALVE GUIDE INTAKE | 2 | — | Obsolete | View Details |
| 11 | 59036026000 VALVE GUIDE EXHAUST | VALVE GUIDE EXHAUST | 2 | — | Obsolete | View Details |
| 12 | 59036044100 INTAKE BOOT 03 | INTAKE BOOT 03 | 1 | $10.55 | Available | 1 |
| 12 | 59436044000 INTAKE BOOD 450SX 03 | INTAKE BOOD 450SX 03 450 SX | 1 | $14.07 | Available | 1 |
| 13 | 59030061000 CLAMP D=56MM B=9MM M4X25 | CLAMP D=56MM B=9MM M4X25 EUROPE | 2 | $6.15 | Available | 2 |
| 14 | 59836039100 EXHAUST FLANGE CPL. 250 4T 02 | EXHAUST FLANGE CPL. 250 4T 02 | 1 | — | Obsolete | View Details |
| 15 | 59036039000 EXHAUST FLANGE CPL. RACING | EXHAUST FLANGE CPL. RACING | 1 | — | Obsolete | View Details |
| 16 | 59036041000 GASKET EXHAUST FLANGE | GASKET EXHAUST FLANGE | 1 | $7.58 | Available | 1 |
| 17 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 18 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 19 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 20 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
| 21 | 59030023000 dowel sleeve 6x8x11.5 | dowel sleeve 6x8x11.5 | 2 | $1.99 | Available | 2 |
| 30 | 59036006090 VENT SCREW M6X10 CPL. | VENT SCREW M6X10 CPL. | 1 | $4.99 | Available | 1 |
| 31 | 58036065100 CU-SEAL RING 6 X 10 X 2 | CU-SEAL RING 6 X 10 X 2 | 5 | $2.99 | Available | 5 |
| 35 | 59036090000 WASHER 10,8X18,8X1,5 | WASHER 10,8X18,8X1,5 | 4 | $1.99 | Available | 4 |
| 40 | 59035052000 WATER PUMP COVER RACING 2000 | WATER PUMP COVER RACING 2000 | 1 | — | Obsolete | View Details |
| 41 | 59035053000 WATER PUMP COVER GASKET 0,8MM | WATER PUMP COVER GASKET 0,8MM | 1 | $7.69 | Available | 1 |
| 42 | 0912101503 AH SCREW DIN 912 M10X150 10.9 | AH SCREW DIN 912 M10X150 10.9 | 4 | $11.87 | Available | 4 |
| 43 | 59036079000 CYL.HEAD SCREW M10X158 WS=13 | CYL.HEAD SCREW M10X158 WS=13 | 4 | $12.64 | Available | 4 |
| 44 | 59436079000 CYLINDER HEAD SCREW M10X142 | CYLINDER HEAD SCREW M10X142 | 4 | — | Obsolete | View Details |
