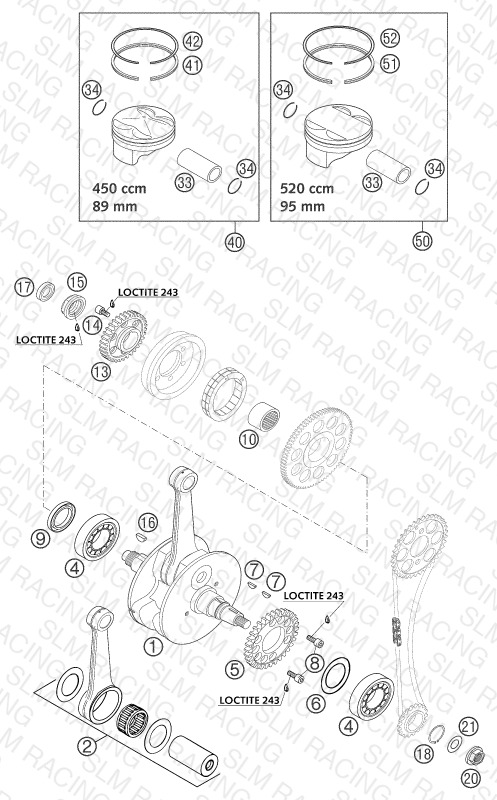

CRANKSHAFT, PISTON
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 59030018200 CRANKSHAFT CMPL. 520 RAC.2001 | CRANKSHAFT CMPL. 520 RAC.2001 | 1 | — | Obsolete | View Details |
| 2 | 59030015044 CON.ROD REP.SET 250/520 RAC.00 | CON.ROD REP.SET 250/520 RAC.00 | 1 | — | Obsolete | View Details |
| 4 | 80030019000 CYL.ROLLBEAR.NJ206ECP/C3HVC058 | CYL.ROLLBEAR.NJ206ECP/C3HVC058 | 2 | $111.53 | Available | 2 |
| 5 | 59030055000 DRIVE GEAR 32-T F.BALANC.SHAFT | DRIVE GEAR 32-T F.BALANC.SHAFT | 1 | — | Obsolete | View Details |
| 6 | 56030081000 THRUST WASHER 30,5X45X0,10 | THRUST WASHER 30,5X45X0,10 | — | $1.99 | Available | 1 |
| 6 | 56030081100 THRUST WASHER 30,7X47X0,15 | THRUST WASHER 30,7X47X0,15 | — | $2.99 | Available | 1 |
| 6 | 56030081200 THRUST WASHER 30,5X45X0,30 | THRUST WASHER 30,5X45X0,30 | — | $2.99 | Available | 1 |
| 7 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 8 | 0984060162 AH SCREW DIN7984-M 6X16 | AH SCREW DIN7984-M 6X16 | 2 | $1.99 | Available | 2 |
| 9 | 0760304771 SHAFT SEAL RING 30X47X7 BSL | SHAFT SEAL RING 30X47X7 BSL | 1 | $23.97 | Available | 1 |
| 10 | 0618301617 NEEDLE BEARING HK 3016 B | NEEDLE BEARING HK 3016 B | 1 | $12.31 | Available | 1 |
| 13 | 59032000033 PRIMARY GEAR 33-T | PRIMARY GEAR 33-T | 1 | $148.93 | Available | 1 |
| 14 | 0912060106 AH SCREW DIN0912-M 6X10 10.9 | AH SCREW DIN0912-M 6X10 10.9 | 6 | $1.99 | Available | 6 |
| 15 | 59030029100 HH NUR M20X1,5 WS=27 LEFT | HH NUR M20X1,5 WS=27 LEFT | 1 | — | Obsolete | View Details |
| 16 | 6946005 WOODRUFF KEY 5X6,5 HARDED | WOODRUFF KEY 5X6,5 HARDED | 1 | $2.99 | Available | 1 |
| 17 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 18 | 0471250120 CIRCLIP DIN0471-25X1,2 | CIRCLIP DIN0471-25X1,2 | 2 | $2.99 | Available | 2 |
| 20 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | $2.99 | Available | 1 |
| 21 | 0137120000 SPRING WASHER DIN0137-B12 | SPRING WASHER DIN0137-B12 | 1 | $1.99 | Backorder — Restocking | 1 |
| 33 | 59030033000 PISTON PIN BOLT 20X15,8/12X50 | PISTON PIN BOLT 20X15,8/12X50 | 1 | — | Obsolete | View Details |
| 34 | 59030074000 CIRCLIP C20X1,5 | CIRCLIP C20X1,5 | 2 | $2.99 | Available | 2 |
| 40 | 59430007000 I PISTON CPL. 450 D=89MM SI.1 03 | PISTON CPL. 450 D=89MM SI.1 03 | 1 | — | Obsolete | View Details |
| 40 | 59430007000 II PISTON CPL. 450 D=89MM SI.2 03 | PISTON CPL. 450 D=89MM SI.2 03 | 1 | — | Obsolete | View Details |
| 41 | 59530031000 OIL SCRAPER RING 89/81,5X3 | OIL SCRAPER RING 89/81,5X3 | 1 | $29.14 | Available | 1 |
| 42 | 57530032000 RECTANGULAR RING 89MM | RECTANGULAR RING 89MM | 1 | $54.11 | Available | 1 |
| 50 | 59030007000 I PISTON I 95MM CPL. FORGED 2000 | PISTON I 95MM CPL. FORGED 2000 | 1 | — | Obsolete | View Details |
| 50 | 59030007000 II PISTON II 95MM CPL.FORGED 2000 | PISTON II 95MM CPL.FORGED 2000 | 1 | — | Obsolete | View Details |
| 51 | 58030631000 OIL SCRAPER RING 95MM | OIL SCRAPER RING 95MM | 1 | — | Obsolete | View Details |
| 52 | 59030032000 RECTANGULAR RING 95/87,2X1,25 | RECTANGULAR RING 95/87,2X1,25 | 1 | $43.44 | Available | 1 |
