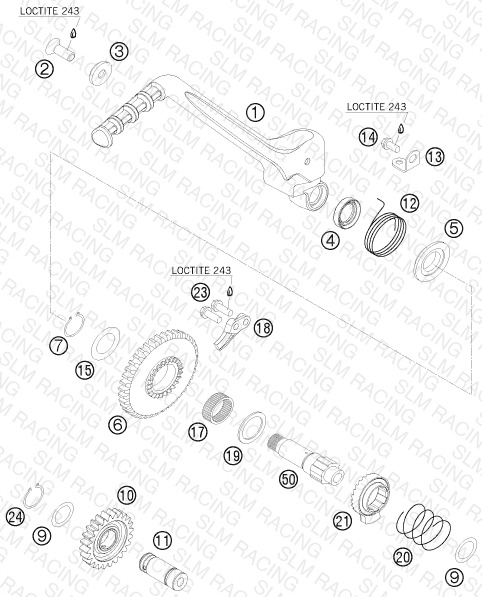

KICK STARTER
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77033170044 KICK STARTER CPL. | KICK STARTER CPL. | 1 | $156.08 | Available | 1 |
| 2 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 2 | $2.99 | Available | 2 |
| 3 | 54633037000 WASHER 8MM GALVANIZED | WASHER 8MM GALVANIZED | 1 | $7.14 | Available | 1 |
| 4 | 0760193070 SHAFT SEAL RING 19X30X7 B | SHAFT SEAL RING 19X30X7 B | 1 | $6.59 | Available | 1 |
| 5 | 59033055000 DRIVING HUB | DRIVING HUB | 1 | $4.99 | Available | 1 |
| 6 | 59033051039 KICKSTARTER GEAR 39-T | KICKSTARTER GEAR 39-T | 1 | $96.35 | Available | 1 |
| 7 | 0471190120 CIRCLIP DIN0471-19X1,2 | CIRCLIP DIN0471-19X1,2 | 1 | $1.99 | Available | 1 |
| 9 | 0988172405 SHIM WASHER DIN0988-17X24X0,5 | SHIM WASHER DIN0988-17X24X0,5 | 1 | $2.99 | Available | 1 |
| 10 | 78033053100 INTERMEDIATE GEAR CPL. | INTERMEDIATE GEAR CPL. | 1 | $85.79 | Available | 1 |
| 11 | 78033018100 BUSHING PIN | BUSHING PIN | 1 | $13.52 | Out of Stock | Notify Me |
| 12 | 59033054000 KICKSTARTER SPRING | KICKSTARTER SPRING | 1 | $9.45 | Available | 1 |
| 13 | 78033074000 SPRINGHOLDER 08 | SPRINGHOLDER 08 | 1 | $3.99 | Available | 1 |
| 14 | 0912060123 AH SCREW DIN0912-M 6X12 | AH SCREW DIN0912-M 6X12 | 1 | $3.99 | Available | 1 |
| 15 | 59033080000 Shim 20x31.9x1 | Shim 20x31.9x1 | 4 | $2.41 | Available | 4 |
| 17 | 0405222610 NEEDLE BEARING K 22X26X10 A | NEEDLE BEARING K 22X26X10 A | 2 | $7.91 | Available | 2 |
| 18 | 59033069000 BUMP PART | BUMP PART | 1 | $15.61 | Available | 1 |
| 19 | 58033031000 STOP DISK 22,2 X 30 X 1,5 | STOP DISK 22,2 X 30 X 1,5 | 1 | $4.99 | Available | 1 |
| 20 | 58033028000 RATCHET GEAR SPRING 1,2 MM | RATCHET GEAR SPRING 1,2 MM | 1 | $2.99 | Available | 1 |
| 21 | 78033052000 RATCHET GEAR KICK STARTER | RATCHET GEAR KICK STARTER | 1 | $55.65 | Available | 1 |
| 23 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 6 | $3.99 | Available | 6 |
| 24 | 0471170010 CIRCLIP DIN0471-17X1 | CIRCLIP DIN0471-17X1 | 2 | $2.99 | Available | 2 |
| 50 | 59033050100 KICKSTARTER SHAFT | KICKSTARTER SHAFT | 1 | $76.77 | Available | 1 |
