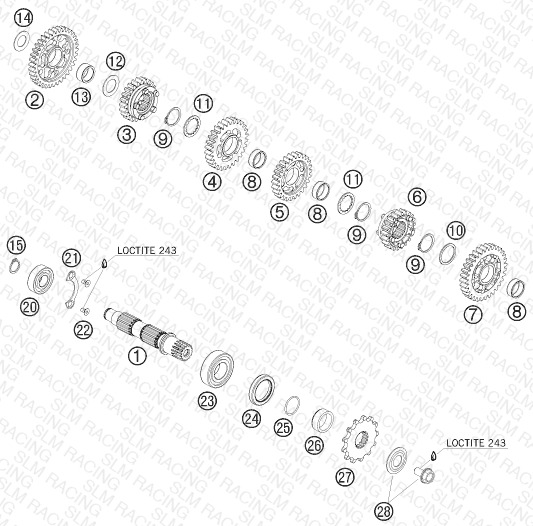

TRANSMISSION II - COUNTERSHAFT
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78033010000 COUNTERSHAFT 08 | COUNTERSHAFT 08 | 1 | — | Check availability | |
| 2 | 78033011000 IDLER GEAR 1.G. 08 | IDLER GEAR 1.G. 08 | 1 | — | Check availability | View Details |
| 3 | 78033015000 SLIDING GEAR 5.G. 08 | SLIDING GEAR 5.G. 08 | 1 | — | Check availability | |
| 4 | 78033013000 IDLER GEAR 3.G. 08 | IDLER GEAR 3.G. 08 | 1 | — | Check availability | |
| 5 | 78033014000 IDLER GEAR 4.G. 08 | IDLER GEAR 4.G. 08 | 1 | — | Check availability | |
| 6 | 78033016000 SLIDING GEAR 6.G. 08 | SLIDING GEAR 6.G. 08 | 1 | — | Check availability | |
| 7 | 78033012000 IDLER GEAR 2.G. 08 | IDLER GEAR 2.G. 08 | 1 | — | Check availability | View Details |
| 8 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED | NEEDLE BEAR.K 22X26X10 DIVIDED | 3 | — | Check availability | |
| 9 | 0471250120 CIRCLIP DIN0471-25X1,2 | CIRCLIP DIN0471-25X1,2 | 3 | — | Check availability | |
| 10 | 78033031000 STOP DISK 26 X 32 X 1,5 | STOP DISK 26 X 32 X 1,5 | 1 | — | Check availability | |
| 11 | 78033033000 STOP DISK 23 X 32 X 1,5 | STOP DISK 23 X 32 X 1,5 | 2 | — | Check availability | |
| 12 | 59033080000 Shim 20x31.9x1 | Shim 20x31.9x1 | 1 | — | Check availability | |
| 13 | 0405202612 NEEDLE BEARING K 20X26X12 | NEEDLE BEARING K 20X26X12 | 1 | — | Check availability | |
| 14 | 56033030000 STOP DISC 17,2X30X1 | STOP DISC 17,2X30X1 | 1 | — | Check availability | |
| 15 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | — | Check availability | |
| 20 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | — | Check availability | |
| 21 | 78033132000 TAB WASHER BEARING COUNT.SHAFT | TAB WASHER BEARING COUNT.SHAFT | 1 | — | Check availability | |
| 22 | 0019050103 INT TORX FLAT HEAD M 5X10 8.8 | INT TORX FLAT HEAD M 5X10 8.8 | 2 | — | Check availability | View Details |
| 23 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | — | Check availability | |
| 24 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | — | Check availability | |
| 25 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | — | Check availability | |
| 26 | 54633014100 SPACER BUSHING 12MM | SPACER BUSHING 12MM | 1 | — | Check availability | |
| 27 | 50033029013 FRONT SPROCKET 13-T | FRONT SPROCKET 13-T | 0 | — | Check availability | View Details |
| 27 | 50033029015 FRONT SPROCKET 15-T | FRONT SPROCKET 15-T | 0 | — | Check availability | |
| 28 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | — | Check availability | |
| 27 | 50033029014 FRONT SPROCKET 14-T | FRONT SPROCKET 14-T | 0 | — | Check availability | View Details |
