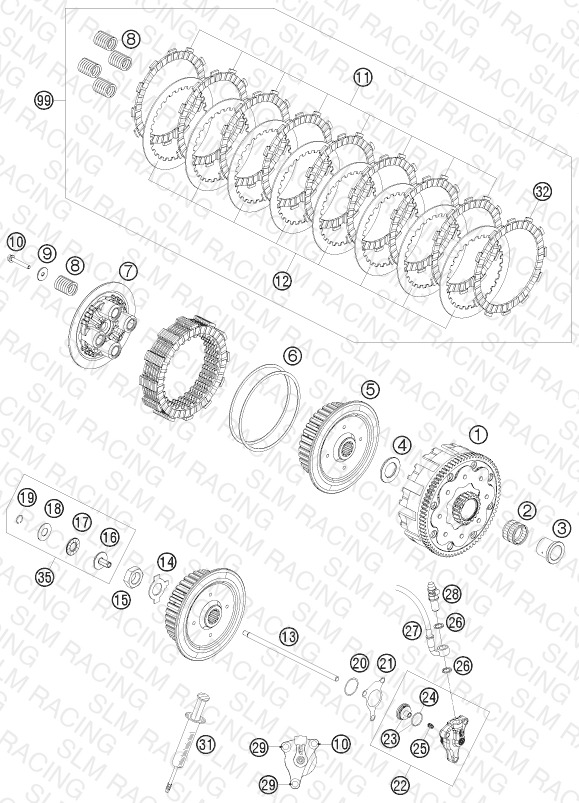

CLUTCH
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78032001000 CLUTCH CAGE CPL. 08 | CLUTCH CAGE CPL. 08 | 1 | $734.13 | Available | 1 |
| 2 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 3 | 78032015000 INNER RING | INNER RING | 1 | $32.33 | Available | 1 |
| 4 | 78032020000 STOP DISC 08 | STOP DISC 08 | 1 | $11.98 | Available | 1 |
| 5 | 78032002200 INNER CLUTCH HUB | INNER CLUTCH HUB | 1 | $188.97 | Available | 1 |
| 6 | 78032009000 JUDDER SPRING CPL. | JUDDER SPRING CPL. | 1 | $54.33 | Available | 1 |
| 7 | 78032003100 PRESSURE PLATE | PRESSURE PLATE | 1 | $132.98 | Available | 1 |
| 8 | 78032005000 CLUTCH SPRING 08 | CLUTCH SPRING 08 | 4 | $14.18 | Available | 4 |
| 9 | 58432081000 WASHER 6,5 X 20 X 2 | WASHER 6,5 X 20 X 2 | 6 | $3.99 | Available | 6 |
| 10 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 11 | 78032011000 LINING DISC 08 | LINING DISC 08 | 8 | — | Obsolete | View Details |
| 12 | 78032010100 FRICTION PLATE STEEL | FRICTION PLATE STEEL | 8 | $15.61 | Available | 8 |
| 13 | 78032054100 PUSH ROD L=186 | PUSH ROD L=186 | 1 | — | Obsolete | View Details |
| 14 | 77332018000 RETAINING PLATE | RETAINING PLATE | 1 | $4.99 | Available | 1 |
| 15 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 16 | 78032057000 PRESSURE PIECE | PRESSURE PIECE | 1 | $30.68 | Available | 1 |
| 17 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 18 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 19 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
| 20 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 21 | 59032065000 GASKET FOR SLAVE CYLINDER | GASKET FOR SLAVE CYLINDER | 1 | $6.59 | Available | 1 |
| 22 | 54832061044 OUTPUT CYLINDER CPL. 06 | OUTPUT CYLINDER CPL. 06 | 1 | $161.69 | Available | 1 |
| 23 | 54832066000 PISTON CPL. | PISTON CPL. | 1 | $80.51 | Available | 1 |
| 24 | 54832067000 O-RING | O-RING | 1 | $3.99 | Available | 1 |
| 25 | 54832069000 PRESSURE SPRING | PRESSURE SPRING | 1 | $14.18 | Available | 1 |
| 26 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | $2.99 | Available | 2 |
| 27 | 54832063000 CLUTCH PIPE 06 | CLUTCH PIPE 06 | 1 | $118.02 | Available | 1 |
| 28 | 62513020000 BLEEDER SCREW CPL. 05 | BLEEDER SCREW CPL. 05 | 1 | $32.33 | Available | 1 |
| 29 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 6 | $3.99 | Available | 6 |
| 31 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 32 | 78032111100 LINING DISC TURNED OFF | LINING DISC TURNED OFF | 1 | $99.43 | Available | 1 |
| 35 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | $30.68 | Available | 1 |
| 99 | 78032011110 CLUTCH-KIT 400-450 EXC 09-11 | CLUTCH-KIT 400-450 EXC 09-11 | 1 | $360.35 | Available | 1 |
