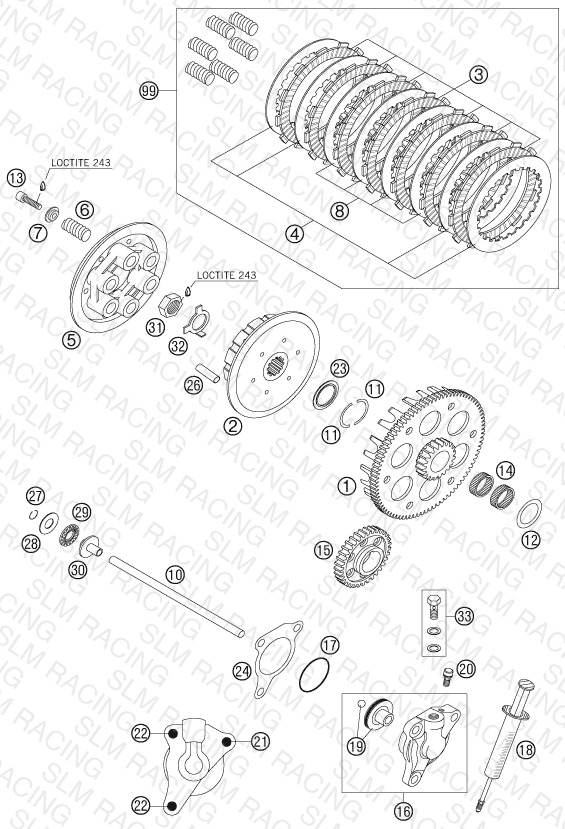

CLUTCH
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 59032000476 OUTER CLUTCH HUB 76-Z/20-Z 01 | OUTER CLUTCH HUB 76-Z/20-Z 01 HARDENED | 1 | — | Obsolete | View Details |
| 2 | 59032002500 INNER HUB - RACING 2007 | INNER HUB - RACING 2007 | 1 | — | Obsolete | View Details |
| 3 | 59032011100 LINING DISC 2MM 04 | LINING DISC 2MM 04 | 8 | $26.39 | Available | 8 |
| 4 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | $11.54 | Available | 1 |
| 5 | 59032003500 PRESSURE CAP WITH OIL BORE 07 | PRESSURE CAP WITH OIL BORE 07 | 1 | $78.53 | Available | 1 |
| 6 | 59032005000 CLUTCH SPRING 2,5X43MM | CLUTCH SPRING 2,5X43MM | 6 | $3.99 | Available | 6 |
| 7 | 59032006050 Spring retainer 6.2X12X18X5.2 | Spring retainer 6.2X12X18X5.2 | 6 | $3.99 | Available | 6 |
| 8 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | $12.86 | Available | 7 |
| 10 | 59032054200 PUSH ROD 7x189,6 MM 06 | PUSH ROD 7x189,6 MM 06 | 1 | — | Obsolete | View Details |
| 11 | 59032007000 HALF-WASHER 03 | HALF-WASHER 03 | 2 | $2.99 | Available | 2 |
| 12 | 59032017000 SUPPORTWASHER 25X35X1 | SUPPORTWASHER 25X35X1 | 1 | $2.99 | Available | 1 |
| 13 | 0984060252 AH SCREW DIN6912 M6X25 | AH SCREW DIN6912 M6X25 | 2 | $2.99 | Available | 2 |
| 14 | 0405252910 NEEDLE BEAR K 25X29X10 | NEEDLE BEAR K 25X29X10 | 2 | $10.44 | Available | 2 |
| 15 | 59032000033 PRIMARY GEAR 33-T | PRIMARY GEAR 33-T | 1 | $148.93 | Available | 1 |
| 16 | 59032061044 OUTPUT CYLINDER CPL. 27MM 03 | OUTPUT CYLINDER CPL. 27MM 03 | 1 | $283.24 | Available | 1 |
| 17 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 18 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 19 | 59032066000 PISTON + O-RING + BALL 27MM | PISTON + O-RING + BALL 27MM | 1 | $283.24 | Available | 1 |
| 20 | 54732064000 BLEEDER SCREW WITH CAP | BLEEDER SCREW WITH CAP | 1 | $25.84 | Available | 1 |
| 21 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | — | $3.99 | Available | 1 |
| 22 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 23 | 59032009000 STEPPED WASHER 03 | STEPPED WASHER 03 | 1 | $9.45 | Available | 1 |
| 24 | 59032065000 GASKET FOR SLAVE CYLINDER | GASKET FOR SLAVE CYLINDER | 1 | $6.59 | Available | 1 |
| 26 | 59032004300 DRIVING SLEEVE D=8, L=33 06 | DRIVING SLEEVE D=8, L=33 06 | 12 | $6.15 | Available | 12 |
| 27 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
| 28 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 29 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 30 | 50332054051 PRESSURE PIECE 125-380 '98 | PRESSURE PIECE 125-380 '98 | 1 | $31.12 | Available | 1 |
| 31 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 32 | 56532018000 LOCK WASHER | LOCK WASHER | 1 | $7.36 | Available | 1 |
| 33 | 59032062000 HOLLOW SCREW + COPPER GASKET | HOLLOW SCREW + COPPER GASKET | 1 | $29.47 | Available | 1 |
| 99 | 59032011010 CLUTCH KIT 400-525 4T 06-12 | CLUTCH KIT 400-525 4T 06-12 | — | — | Obsolete | View Details |
