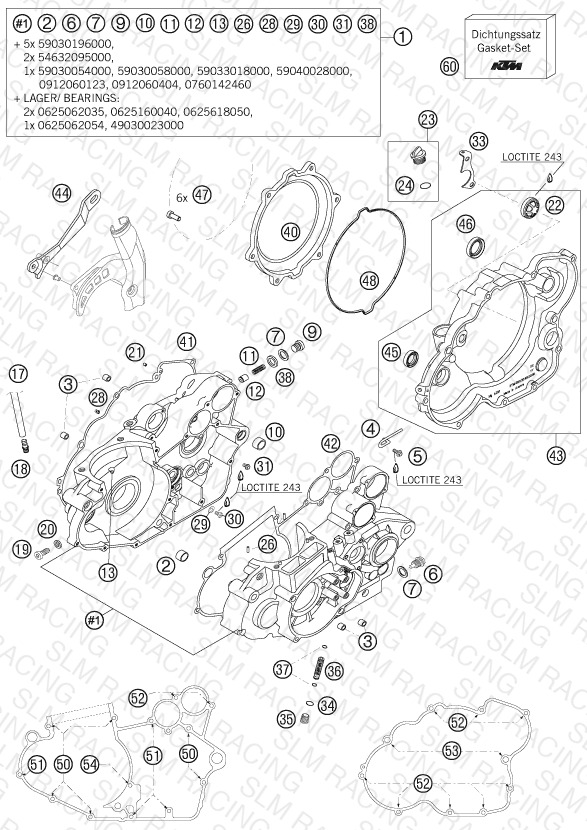

ENGINE CASE
Parts (46)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 59030000444 ENGINE CASE 2006 | ENGINE CASE 2006 | 1 | — | Obsolete | View Details |
| 2 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | $7.58 | Available | 1 |
| 3 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
| 4 | 59030090000 HANGER FOR VENT HOSE | HANGER FOR VENT HOSE | 1 | $4.99 | Available | 1 |
| 5 | 0014060153 HH COLLAR SCREW M 6X15 WS=8 | HH COLLAR SCREW M 6X15 WS=8 | 2 | $3.99 | Available | 2 |
| 6 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 7 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 9 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 10 | 59030024000 DOWEL 17 X 19 X 12 | DOWEL 17 X 19 X 12 | 1 | $6.15 | Available | 1 |
| 11 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 12 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | $44.43 | Available | 1 |
| 13 | 59030054000 JET 60 DELLORTO M6X0,75 | JET 60 DELLORTO M6X0,75 | — | $15.39 | Available | 1 |
| 17 | 59031050100 ENGINE BREATHER TUBE 00 | ENGINE BREATHER TUBE 00 | 1 | $17.15 | Available | 1 |
| 18 | 59030022100 BLEEDER FLANGE M12X1,5 WS=13 | BLEEDER FLANGE M12X1,5 WS=13 | 1 | $9.23 | Available | 1 |
| 19 | 58030080000 LOCATING SCREW M8 L=23 | LOCATING SCREW M8 L=23 | 1 | $14.84 | Available | 1 |
| 20 | 58030081000 CU-SEAL RING 8 X 14 X 3 | CU-SEAL RING 8 X 14 X 3 | 1 | $2.99 | Available | 1 |
| 21 | 0402025980 NEEDLE ROLLER DIN5402 2,5X9,8 | NEEDLE ROLLER DIN5402 2,5X9,8 | 1 | $3.99 | Available | 1 |
| 22 | 59030019000 OIL LEVEL GLASS G 1777 Y | OIL LEVEL GLASS G 1777 Y | 1 | $15.84 | Out of Stock | Notify Me |
| 23 | 58030120000 OIL FILLER CAP M24x3 W. O-R | OIL FILLER CAP M24x3 W. O-R | 1 | $9.45 | Available | 1 |
| 24 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 26 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 28 | 59030058000 JET 100 BING(44-031/180) M4 | JET 100 BING(44-031/180) M4 | 2 | $4.99 | Available | 2 |
| 29 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 2 | $1.99 | Available | 2 |
| 30 | 0985050083 FLAT HEAD SCREW DIN7985-M 5X 8 | FLAT HEAD SCREW DIN7985-M 5X 8 | 1 | — | Obsolete | View Details |
| 31 | 0015060083 HH COLLAR SCREW M 6X8 WS=8 | HH COLLAR SCREW M 6X8 WS=8 | 1 | $2.99 | Available | 1 |
| 33 | 59030001090 RET.BRACKET F.BRAKE LEVER HUB | RET.BRACKET F.BRAKE LEVER HUB | 1 | — | Obsolete | View Details |
| 34 | 0770120020 O-RING 12,00X2,00 NBR 70 | O-RING 12,00X2,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 35 | 59038014100 PLUG M16X1,5 | PLUG M16X1,5 | 1 | $19.79 | Available | 1 |
| 36 | 59038015000 OIL SCREEN 11,8X44,5MM | OIL SCREEN 11,8X44,5MM | 1 | $14.84 | Available | 1 |
| 37 | 0770090015 O-RING 9X1,5 NBR | O-RING 9X1,5 NBR | 2 | $2.99 | Available | 2 |
| 38 | 0603121830 SEAL RING DIN7603 12X18X3 | SEAL RING DIN7603 12X18X3 | 1 | $2.99 | Available | 1 |
| 40 | 59030026000 CLUTCH COVER OUTSIDE 06 | CLUTCH COVER OUTSIDE 06 | 1 | — | Obsolete | View Details |
| 41 | 59030025100 GASKET FOR CLUTCH COVER | GASKET FOR CLUTCH COVER | 1 | $31.12 | Available | 1 |
| 42 | 59030039200 ENGINE CASE GASKET | ENGINE CASE GASKET | 1 | $44.10 | Available | 1 |
| 43 | 59030101044 CLUTCH COVER INSIDE CPL. 06 | CLUTCH COVER INSIDE CPL. 06 | 1 | — | Obsolete | View Details |
| 44 | 59030047100 CHAIN DAMPING PLATE RAC. 2005 | CHAIN DAMPING PLATE RAC. 2005 | 1 | — | Obsolete | View Details |
| 45 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 46 | 0760193070 SHAFT SEAL RING 19X30X7 B | SHAFT SEAL RING 19X30X7 B | 1 | $6.59 | Available | 1 |
| 47 | 0984060163 AH SCREW DIN6912-M 6X16 | AH SCREW DIN6912-M 6X16 WITH LOW HEAD | 1 | $2.99 | Available | 1 |
| 48 | 59030027000 GASKET F. OUTER CLUTCH COV. 06 | GASKET F. OUTER CLUTCH COV. 06 | 1 | $8.35 | Available | 1 |
| 50 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 1 | $2.99 | Available | 1 |
| 51 | 0015060603 HH COLLAR SCREW M 6X60 WS=8 | HH COLLAR SCREW M 6X60 WS=8 | 1 | $3.99 | Available | 1 |
| 52 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 53 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | — | $3.99 | Available | 1 |
| 54 | 0015060753 HH COLLAR SCREW M 6X75 WS=8 | HH COLLAR SCREW M 6X75 WS=8 | 1 | $3.99 | Available | 1 |
| 60 | 59030099000 GASKET SET CPL. RACING 2000 | GASKET SET CPL. RACING 2000 | 1 | $429.10 | Available | 1 |
