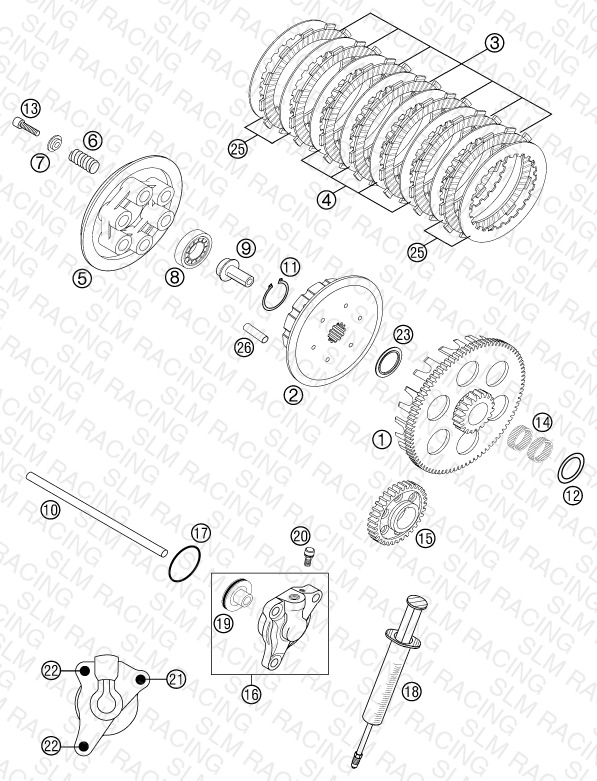

CLUTCH
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 59032000276 OUTER CLUTCH H. 76-T/20-T 2001 | OUTER CLUTCH H. 76-T/20-T 2001 | 1 | — | Obsolete | View Details |
| 2 | 59032002100 INNER CLUTCH HUB RACING 2002 | INNER CLUTCH HUB RACING 2002 | 1 | — | Obsolete | View Details |
| 3 | 59032011000 LINING DISK 1,8MM | LINING DISK 1,8MM | 7 | $27.16 | Available | 7 |
| 4 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | $12.86 | Available | 7 |
| 5 | 59032003000 PRESSURE CAP | PRESSURE CAP | 1 | — | Obsolete | View Details |
| 6 | 59032005000 CLUTCH SPRING 2,5X43MM | CLUTCH SPRING 2,5X43MM | 6 | $3.99 | Available | 6 |
| 7 | 59032006000 SPRING RETAINER 6,2X12X18X3,6 | SPRING RETAINER 6,2X12X18X3,6 | 6 | $2.99 | Available | 6 |
| 8 | 0625160040 GROOVED BALL BEAR. TM 16004 C3 | GROOVED BALL BEAR. TM 16004 C3 | 1 | $27.49 | Available | 1 |
| 9 | 59032055100 PRESSURE BOLT 02 | PRESSURE BOLT 02 | 1 | — | Obsolete | View Details |
| 10 | 59032054000 PUSH ROD 7X188MM | PUSH ROD 7X188MM | 1 | $15.39 | Available | 1 |
| 11 | 0471250120 CIRCLIP DIN0471-25X1,2 | CIRCLIP DIN0471-25X1,2 | 2 | $2.99 | Available | 2 |
| 12 | 59032017000 SUPPORTWASHER 25X35X1 | SUPPORTWASHER 25X35X1 | 1 | $2.99 | Available | 1 |
| 13 | 0984060252 AH SCREW DIN6912 M6X25 | AH SCREW DIN6912 M6X25 | 2 | $2.99 | Available | 2 |
| 14 | 0405252910 NEEDLE BEAR K 25X29X10 | NEEDLE BEAR K 25X29X10 | 2 | $10.44 | Available | 2 |
| 15 | 59032000033 PRIMARY GEAR 33-T | PRIMARY GEAR 33-T | 1 | $148.93 | Available | 1 |
| 16 | 54732061044 CYLINDER CPL. 250-380 '99 | CYLINDER CPL. 250-380 '99 | 1 | $283.24 | Available | 1 |
| 17 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 18 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 19 | 54632066000 PISTON W. O-RING 250-380 '00 | PISTON W. O-RING 250-380 '00 | 1 | $283.24 | Available | 1 |
| 20 | 54732064000 BLEEDER SCREW WITH CAP | BLEEDER SCREW WITH CAP | 1 | $25.84 | Available | 1 |
| 21 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | — | $3.99 | Available | 1 |
| 22 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 23 | 59032014000 WASHER | WASHER | 1 | — | Obsolete | View Details |
| 25 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | $11.54 | Available | 1 |
| 26 | 59032004000 DRIVING SLEEVE D=8,L=31 2002 | DRIVING SLEEVE D=8,L=31 2002 | 12 | — | Obsolete | View Details |
