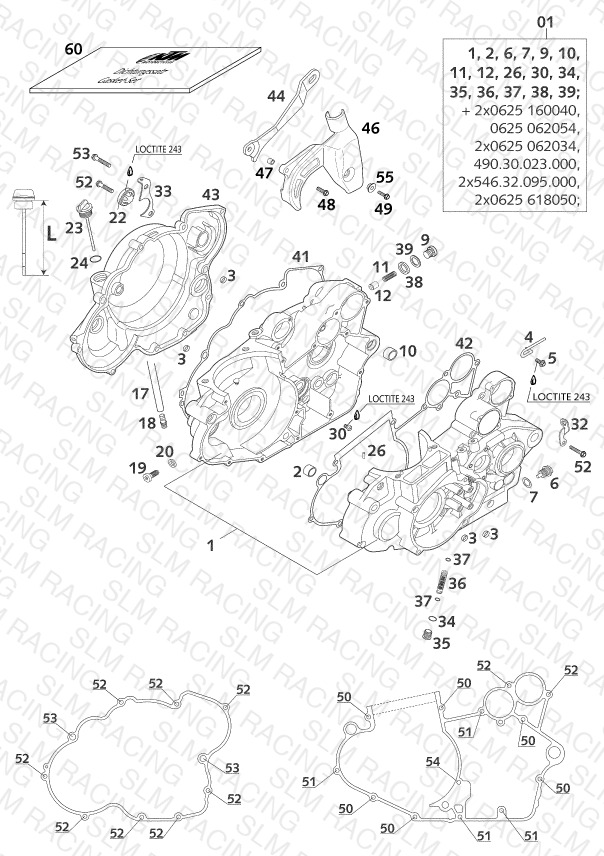

ENGINE CASE
Parts (43)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 59030000044 % ENGINE CASE CPL.W.TR.BEAR.20 | % ENGINE CASE CPL.W.TR.BEAR.20 | 1 | — | Check availability | |
| 2 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | $7.58 | Available | 1 |
| 3 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 4 | $5.55 | Obsolete | View Details |
| 4 | 59030090000 HANGER FOR VENT HOSE | HANGER FOR VENT HOSE | 1 | $4.99 | Available | 1 |
| 5 | 0014060153 HH COLLAR SCREW M 6X15 WS=8 | HH COLLAR SCREW M 6X15 WS=8 | 1 | $0.93 | Obsolete | View Details |
| 6 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $12.48 | Obsolete | View Details |
| 7 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 9 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 10 | 50130027000 DOWEL 19 X15,1X12 | DOWEL 19 X15,1X12 | 1 | $6.39 | Obsolete | View Details |
| 11 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 12 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | $44.43 | Available | 1 |
| 17 | 59031050000 TUBE ENGINE BREATHER 0,71M | TUBE ENGINE BREATHER 0,71M | 1 | — | Check availability | |
| 18 | 59030022100 BLEEDER FLANGE M12X1,5 WS=13 | BLEEDER FLANGE M12X1,5 WS=13 | 1 | $9.23 | Available | 1 |
| 19 | 58030080000 LOCATING SCREW M8 L=23 | LOCATING SCREW M8 L=23 | 1 | $14.84 | Available | 1 |
| 20 | 58030081000 CU-SEAL RING 8 X 14 X 3 | CU-SEAL RING 8 X 14 X 3 | 1 | $2.99 | Out of Stock | Notify Me |
| 22 | 59030019000 OIL LEVEL GLASS G 1777 Y | OIL LEVEL GLASS G 1777 Y | 1 | $16.64 | Obsolete | View Details |
| 23 | 59030020044 OIL DIPSTICK CPL. L=102MM 2000 | OIL DIPSTICK CPL. L=102MM 2000 | 1 | $9.09 | Obsolete | View Details |
| 24 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 26 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Backorder — Early December 2026 | 2 |
| 30 | 0985050083 FLAT HEAD SCREW DIN7985-M 5X 8 | FLAT HEAD SCREW DIN7985-M 5X 8 | 1 | $1.04 | Out of Stock | Notify Me |
| 32 | 59013068000 BRACKET BRAKE FLUID RESERVOIR | BRACKET BRAKE FLUID RESERVOIR | 1 | $8.49 | Obsolete | View Details |
| 33 | 59030001090 RET.BRACKET F.BRAKE LEVER HUB | RET.BRACKET F.BRAKE LEVER HUB | 1 | $3.39 | Obsolete | View Details |
| 34 | 0770120020 O-RING 12,00X2,00 NBR 70 | O-RING 12,00X2,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 35 | 59038014000 PLUG M16X1,5 | PLUG M16X1,5 | 1 | $6.74 | Obsolete | View Details |
| 36 | 59038015000 OIL SCREEN 11,8X44,5MM | OIL SCREEN 11,8X44,5MM | 1 | $13.23 | Obsolete | View Details |
| 37 | 0770090015 O-RING 9X1,5 NBR | O-RING 9X1,5 NBR | 2 | $1.53 | Obsolete | View Details |
| 38 | 0603121830 SEAL RING DIN7603 12X18X3 | SEAL RING DIN7603 12X18X3 | 1 | $2.99 | Available | 1 |
| 39 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 41 | 59030025000 CLUTCH COVER GASKET 0,5MM | CLUTCH COVER GASKET 0,5MM | 1 | $22.04 | Obsolete | View Details |
| 42 | 59030039000 ENGINE CASE GASKET | ENGINE CASE GASKET | 1 | — | Check availability | |
| 43 | 59030001000 CLUTCH COVER RACING 2000 | CLUTCH COVER RACING 2000 | 1 | $144.30 | Obsolete | View Details |
| 44 | 59030047000 CHAIN DAMPERSHEET RACING 20 | CHAIN DAMPERSHEET RACING 20 | 1 | $15.30 | Obsolete | View Details |
| 46 | 59030060000 SPROCKET COVER RACING 20 | SPROCKET COVER RACING 20 | 1 | — | Check availability | |
| 47 | 54613038150 BUSHING 6,5X8X11 | BUSHING 6,5X8X11 | 1 | $4.99 | Available | 1 |
| 48 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 1 | $1.49 | Obsolete | View Details |
| 49 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 1 | $1.14 | Obsolete | View Details |
| 50 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 6 | $1.49 | Obsolete | View Details |
| 51 | 0015060603 HH COLLAR SCREW M 6X60 WS=8 | HH COLLAR SCREW M 6X60 WS=8 | 4 | $1.56 | Obsolete | View Details |
| 52 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 12 | $0.93 | Obsolete | View Details |
| 53 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | 3 | $1.24 | Obsolete | View Details |
| 54 | 0015060753 HH COLLAR SCREW M 6X75 WS=8 | HH COLLAR SCREW M 6X75 WS=8 | 1 | $2.84 | Obsolete | View Details |
| 55 | 50308053000 BUSH FOR SPOILER 6X11X16X7,5 | BUSH FOR SPOILER 6X11X16X7,5 | 1 | $6.70 | Available | 1 |
| 60 | 59030099000 GASKET SET CPL. RACING 2000 | GASKET SET CPL. RACING 2000 | 1 | $197.49 | Obsolete | View Details |
