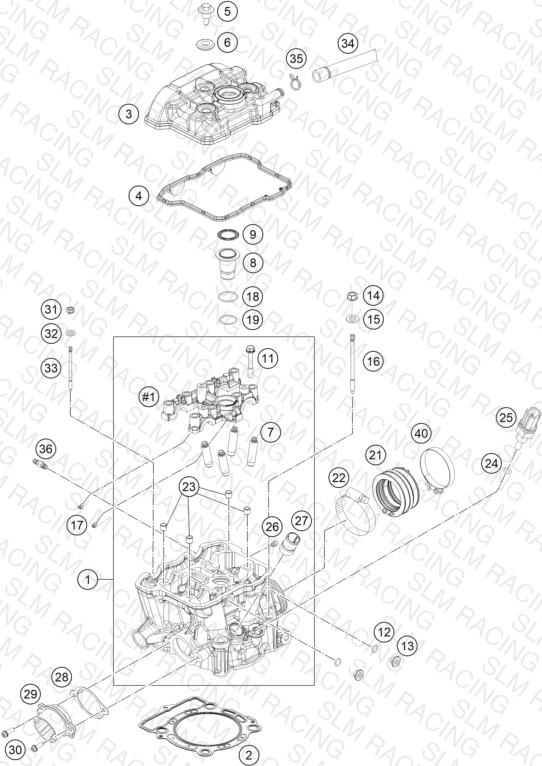

CYLINDER HEAD
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79336120144 Cylinder head cmpl. | Cylinder head cmpl. | 1 | $985.04 | Available | 1 |
| 2 | 79330036086 Cylinder head gasket | Cylinder head gasket | 1 | $61.48 | Available | 1 |
| 3 | 7933605200033 Valve cover | Valve cover | 1 | $54.11 | Available | 1 |
| 4 | 79336053000 Valve Cover Gasket | Valve Cover Gasket | 1 | $8.24 | Available | 1 |
| 5 | 77336054150 VALVE COVER SCREW | VALVE COVER SCREW | 2 | $6.15 | Available | 2 |
| 6 | 77036054150 RUBBER GASKET FOR SCREW | RUBBER GASKET FOR SCREW | 2 | $4.99 | Available | 2 |
| 7 | 77236025001 VALVE GUIDE INTAKT | VALVE GUIDE INTAKT | 4 | $34.20 | Available | 4 |
| 8 | 79336075000 Spark plug shaft insert | Spark plug shaft insert | 1 | $15.06 | Available | 1 |
| 9 | 77336053050 GASKET SPARK-PLUG SHAFT | GASKET SPARK-PLUG SHAFT | 1 | $6.92 | Backorder — Restocking | 1 |
| 11 | 77330067242 Collar screw M7x1x42 | Collar screw M7x1x42 | 8 | $1.99 | Available | 8 |
| 12 | 07700900151 O-RING 9x1,5 V80 SH | O-RING 9x1,5 V80 SH | 2 | $2.99 | Available | 2 |
| 13 | 77236080100 threaded plug | threaded plug | 1 | $7.80 | Available | 1 |
| 14 | 77336088210 COLLAR NUT M10X1,25 SW13 | COLLAR NUT M10X1,25 SW13 | 4 | $2.99 | Available | 4 |
| 15 | 77336089010 washer 19x10.5x2.5 | washer 19x10.5x2.5 | 4 | $4.99 | Available | 4 |
| 16 | 79230044000 STUD BOLT M10X1,25 | STUD BOLT M10X1,25 | 4 | $12.31 | Available | 4 |
| 17 | 60030063050 oil jet 50 M5 | oil jet 50 M5 | 1 | $11.10 | Available | 1 |
| 18 | 07702600151 O-Ring 26x1.5 Viton | O-Ring 26x1.5 Viton | 1 | $1.99 | Available | 1 |
| 19 | 07702300151 O-ring 23x1.5 Viton | O-ring 23x1.5 Viton | 2 | $6.15 | Available | 2 |
| 21 | 79236044100 RUBBER CUP | RUBBER CUP | 1 | $45.53 | Available | 1 |
| 22 | 61036047000 Hose clamp GEMI 63mm 05 | Hose clamp GEMI 63mm 05 | 1 | $8.90 | Available | 1 |
| 23 | 77036090000 DOWEL(BUSH BRIDGE)7/9/8 05 | DOWEL(BUSH BRIDGE)7/9/8 05 | 4 | $6.15 | Available | 4 |
| 24 | 0770100020 o-ring 10.00x2.00 silicone | o-ring 10.00x2.00 silicone | 1 | $2.99 | Available | 1 |
| 25 | 79435047000 water temperature sensor | water temperature sensor | 1 | $27.93 | Backorder — Restocking | 1 |
| 26 | 59030296000 SCREW PLUG | SCREW PLUG | 3 | $7.36 | Available | 3 |
| 27 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | $10.44 | Available | 1 |
| 28 | 77236041000 GASKET EXHAUST FLANGE | GASKET EXHAUST FLANGE | 1 | $12.86 | Available | 1 |
| 29 | 77236139000 ENGINEFLANGE | ENGINEFLANGE | 1 | $58.51 | Available | 1 |
| 30 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 1 | $2.99 | Available | 1 |
| 31 | 77336088106 COLLAR NUT M6X1 SW8 | COLLAR NUT M6X1 SW8 | 1 | $14.84 | Available | 1 |
| 32 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 33 | 79230043000 STUD BOLT M6 | STUD BOLT M6 | 1 | $9.01 | Available | 1 |
| 34 | 79038587000 ENGINE BREATHER HOSE | ENGINE BREATHER HOSE | 1 | $17.04 | Available | 1 |
| 35 | 58431082300 CLAMP YDNAC 10173 (18MM) | CLAMP YDNAC 10173 (18MM) | 1 | $2.99 | Available | 1 |
| 36 | 60036023100 VACUUM CONECTION M6/0,5MM | VACUUM CONECTION M6/0,5MM | 1 | $33.21 | Available | 1 |
| 40 | 77236048000 Hose clip GEMI 58 | Hose clip GEMI 58 | 1 | $14.18 | Available | 1 |
