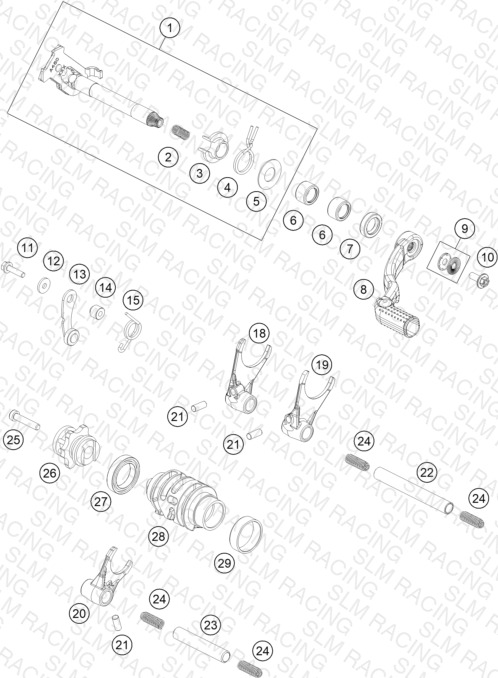

SHIFTING MECHANISM
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A46034005033 Shift shaft cpl. | Shift shaft cpl. | 1 | $44.76 | Available | 1 |
| 2 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 3 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 4 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | $4.99 | Available | 1 |
| 5 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 6 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 7 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 8 | A42034031000 Gear shift lever cmpl. | Gear shift lever cmpl. | 1 | $90.63 | Available | 1 |
| 9 | 50233041500 PAIR NORDLOCK WASHER M6 | PAIR NORDLOCK WASHER M6 | 1 | $4.99 | Available | 1 |
| 10 | 0024060156S HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 1 | $2.99 | Available | 1 |
| 11 | 0025050256S HH collar screw M5x25 TX30 | HH collar screw M5x25 TX30 | 7 | $1.99 | Available | 7 |
| 12 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
| 13 | A46034024044 Detent arm cmpl. | Detent arm cmpl. | 1 | $13.63 | Available | 1 |
| 14 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 15 | 54834023000 LOCKING LEVER SPRING 03 | LOCKING LEVER SPRING 03 | 1 | $3.99 | Available | 1 |
| 18 | 50434003000 SHIFTING FORK 1ST/3RD GEAR | SHIFTING FORK 1ST/3RD GEAR | 1 | $66.98 | Available | 1 |
| 19 | 50534002000 shifting fork 2/4 gear | shifting fork 2/4 gear | 1 | $45.31 | Available | 1 |
| 20 | A42034001000 Shift fork 5/-6 gear | Shift fork 5/-6 gear | 1 | $46.41 | Available | 1 |
| 21 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | $4.99 | Available | 3 |
| 22 | A46034020000 Shift fork shaft (L=66 mm) | Shift fork shaft (L=66 mm) | 1 | $9.23 | Available | 1 |
| 23 | A46034019000 Shift fork shaft (L=93 mm) | Shift fork shaft (L=93 mm) | 1 | $9.78 | Available | 1 |
| 24 | 58038023400 Compression spring L=25mm D=0. | Compression spring L=25mm D=0. | 4 | $1.99 | Available | 4 |
| 25 | 0012060303S Cap head screw M6x30-8.8 | Cap head screw M6x30-8.8 | 1 | $1.99 | Available | 1 |
| 26 | A46034015000 Shift star cmpl. | Shift star cmpl. | 1 | $19.99 | Available | 1 |
| 27 | 0410002500700 Grooved ball bearing 6805 JR C | Grooved ball bearing 6805 JR C | 1 | $51.69 | Available | 1 |
| 28 | A42034012000 Shift drum | Shift drum | 1 | $85.02 | Available | 1 |
| 29 | 79234012010 FRICTION BEARING CONTROLLER | FRICTION BEARING CONTROLLER | 1 | $27.05 | Available | 1 |
