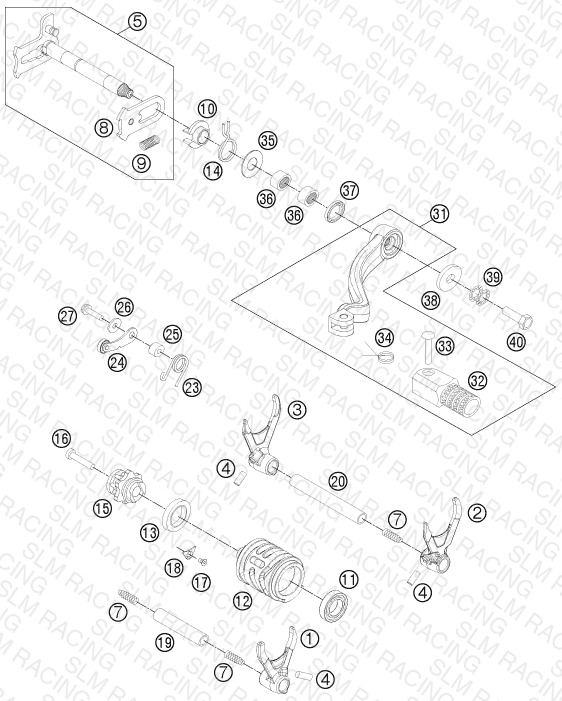

SHIFTING MECHANISM
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54834201000 SHIFT FORK 5./6.G. | SHIFT FORK 5./6.G. | 1 | — | Check availability | |
| 2 | 54834202000 SHIFT FORK 2./4.G. | SHIFT FORK 2./4.G. | 1 | — | Check availability | |
| 3 | 54834203000 SHIFT FORK 1./3. G. | SHIFT FORK 1./3. G. | 1 | — | Check availability | |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | — | Check availability | |
| 5 | 54834005044 SHIFTING SHAFT CPL. 03 | SHIFTING SHAFT CPL. 03 | 1 | — | Check availability | View Details |
| 7 | 58038023200 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 3 | — | Check availability | |
| 8 | 54634008044 SLIDING PLATE CPL. | SLIDING PLATE CPL. | 1 | — | Check availability | View Details |
| 9 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | — | Check availability | |
| 10 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | — | Check availability | |
| 11 | 0625069034 BALL BEARING 6903 C4 | BALL BEARING 6903 C4 | 1 | — | Check availability | |
| 12 | 54834212000 SHIFTING DRUM | SHIFTING DRUM | 1 | — | Check availability | |
| 13 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | — | Check availability | |
| 14 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | — | Check availability | |
| 15 | 77234015000 SHIFT LOCATING DRUM CPL. | SHIFT LOCATING DRUM CPL. | 1 | — | Check availability | |
| 16 | 0912060353 AH SCREW DIN0912-M 6X35 | AH SCREW DIN0912-M 6X35 | 1 | — | Check availability | |
| 17 | 0019050103 INT TORX FLAT HEAD M 5X10 8.8 | INT TORX FLAT HEAD M 5X10 8.8 | 1 | — | Check availability | View Details |
| 18 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | — | Check availability | View Details |
| 19 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 | SHIFT. RAIL MAIN SHAFT 250/300 | 1 | — | Check availability | |
| 20 | 54834020000 SHIFT. RAIL C. SHAFT 250/300 | SHIFT. RAIL C. SHAFT 250/300 | 1 | — | Check availability | |
| 23 | 60034023000 ARRESTING LEVER SPRING 03 | ARRESTING LEVER SPRING 03 | 1 | — | Check availability | |
| 24 | 50334024144 LOCATING LEVER CPL. 08 | LOCATING LEVER CPL. 08 | 1 | — | Check availability | |
| 25 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | — | Check availability | |
| 26 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 1 | — | Check availability | |
| 27 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 1 | — | Check availability | |
| 31 | 54734031000 SHIFT LEVER CPL. 2-STROKE 2001 | SHIFT LEVER CPL. 2-STROKE 2001 | 1 | — | Check availability | |
| 32 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 | STEP PLATE FOR SHIFT LEVER 250 | 1 | — | Check availability | |
| 33 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | — | Check availability | |
| 34 | 54634032100 SHIFTING LEVER SPRING 250 | SHIFTING LEVER SPRING 250 | 1 | — | Check availability | |
| 35 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | — | Check availability | |
| 36 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | — | Check availability | |
| 37 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | — | Check availability | |
| 38 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | — | Check availability | |
| 39 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 1 | — | Check availability | |
| 40 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 | SPECIAL SCREW M6X16 WS=8 10.9 | 1 | — | Check availability |
