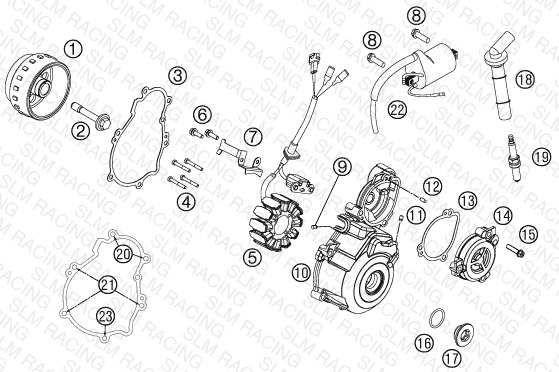

IGNITION SYSTEM
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77239005100 ROTOR EFI | ROTOR EFI | 1 | — | Obsolete | View Details |
| 2 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 3 | 77230040000 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | $15.61 | Available | 1 |
| 4 | 0012040303 AH SCREW DIN6912 M4x30 | AH SCREW DIN6912 M4x30 | 4 | $2.99 | Available | 4 |
| 5 | 77239004000 STATOR | STATOR | 1 | — | Obsolete | View Details |
| 6 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 3 | $2.99 | Available | 3 |
| 7 | 77230002050 WIRING RETAINING BRACKET | WIRING RETAINING BRACKET | 1 | $14.07 | Available | 1 |
| 8 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 6 | $3.99 | Available | 6 |
| 9 | 80030058060 OIL JET ''60'' M4 | OIL JET ''60'' M4 | 1 | $13.96 | Available | 1 |
| 10 | 7723000200015 IGNITION COVER | IGNITION COVER | 1 | $186.44 | Available | 1 |
| 11 | 0913050063 THREAD PIN DIN 913 M5X6 | THREAD PIN DIN 913 M5X6 | 1 | $1.99 | Available | 1 |
| 12 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 13 | 77240043000 GASKET TORQUE LIMITER | GASKET TORQUE LIMITER | 1 | $4.99 | Available | 1 |
| 14 | 7723000201015 COVER TORQUE LIMITER | COVER TORQUE LIMITER | 1 | $131.99 | Available | 1 |
| 15 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | $3.99 | Available | 4 |
| 16 | 07700240251 o-ring 24.00x2.50 Viton | o-ring 24.00x2.50 Viton | 1 | $3.99 | Available | 1 |
| 17 | 7723000206030 FACTORY IGNITION COVER PLUG | FACTORY IGNITION COVER PLUG | 1 | $43.11 | Available | 1 |
| 18 | 77239090000 SPARK PLUG CONNECTOR | SPARK PLUG CONNECTOR | 1 | $39.81 | Available | 1 |
| 19 | 77239093000 PLUG NGK LMAR9AI - 8 | PLUG NGK LMAR9AI - 8 | 1 | $26.72 | Available | 1 |
| 20 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 11 | $3.99 | Available | 11 |
| 21 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 22 | 58439006000 Ignition coil | Ignition coil | 1 | $88.76 | Backorder — Restocking | 1 |
| 23 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
