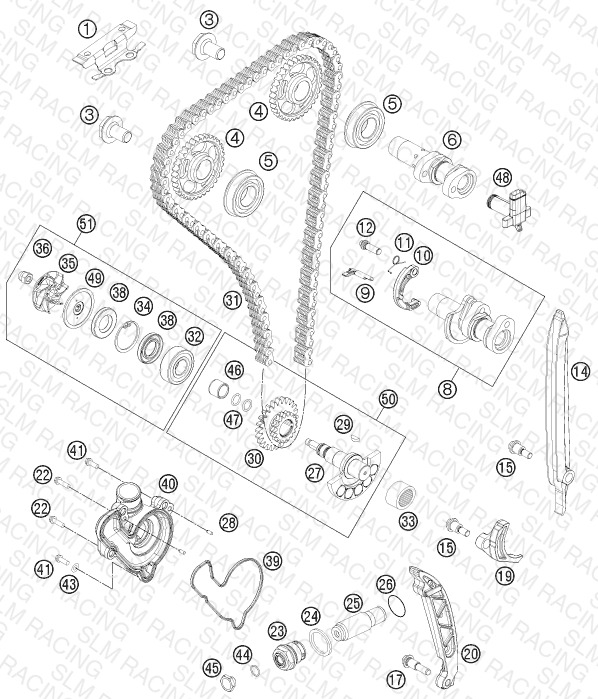

TIMING DRIVE
Parts (43)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77236004000 TIMING CHAIN GUIDE TOP | TIMING CHAIN GUIDE TOP | 1 | $39.15 | Available | 1 |
| 3 | 77036012100 CAMSHAFT GEAR SCREW 08 | CAMSHAFT GEAR SCREW 08 | 2 | $15.72 | Available | 2 |
| 4 | 77236011000 CAMSHAFT GEAR | CAMSHAFT GEAR | 2 | $97.78 | Available | 2 |
| 5 | 0625060043 BALL BEARING 6004 NR C3 ´05 | BALL BEARING 6004 NR C3 ´05 | 2 | $16.38 | Available | 2 |
| 6 | 77236009000 CAMSHAFT INTAKE | CAMSHAFT INTAKE | 1 | — | Obsolete | View Details |
| 8 | 77236010044 CAMSHAFT EXH. WITH DEKO CPL. | CAMSHAFT EXH. WITH DEKO CPL. | 1 | — | Obsolete | View Details |
| 9 | 77236015000 AUTO DECOMPRESSION | AUTO DECOMPRESSION | 1 | $33.43 | Available | 1 |
| 10 | 77036016100 AUTO DECO WEIGHT | AUTO DECO WEIGHT | 1 | $64.12 | Available | 1 |
| 11 | 77236017000 SPRING FOR AUTO DECOMPR. | SPRING FOR AUTO DECOMPR. | 1 | $4.99 | Available | 1 |
| 12 | 77236019000 BUSHING SCREW AUTODEC. | BUSHING SCREW AUTODEC. | 1 | $9.45 | Available | 1 |
| 14 | 77236001000 TIMING CHAIN GUIDE | TIMING CHAIN GUIDE | 1 | $8.90 | Available | 1 |
| 15 | 77236001060 BUSHING SCREW M6 | BUSHING SCREW M6 | 4 | $6.15 | Available | 4 |
| 17 | 77236002060 BUSHING SCREW M8 | BUSHING SCREW M8 | 1 | $3.99 | Available | 1 |
| 19 | 77236005000 SECURING PROTECTION | SECURING PROTECTION | 1 | $3.99 | Available | 1 |
| 20 | 77236002000 TENSIONING RAIL | TENSIONING RAIL | 1 | $23.53 | Available | 1 |
| 22 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 23 | 77336008000 HOLDING BOLT M24X1,5 | HOLDING BOLT M24X1,5 | 1 | $24.19 | Available | 1 |
| 24 | 0603242920 CU SEAL-RING DIN7603 A24X29X2 | CU SEAL-RING DIN7603 A24X29X2 | 1 | $3.99 | Available | 1 |
| 25 | 77036003000 CHAIN ADJUSTER HYD. 05 | CHAIN ADJUSTER HYD. 05 | 1 | $86.89 | Available | 1 |
| 26 | 0770180020 o-ring 18.00x2.00 NBR70 | o-ring 18.00x2.00 NBR70 | 1 | $2.99 | Available | 1 |
| 27 | 77236072000 BALANCER SHAFT | BALANCER SHAFT | 1 | $370.47 | Available | 1 |
| 28 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 29 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 30 | 77236076000 TIMING VALVE TWIN WHEEL | TIMING VALVE TWIN WHEEL | 1 | $140.57 | Available | 1 |
| 31 | 77236013000 TIMING CHAIN | TIMING CHAIN | 1 | $190.40 | Available | 1 |
| 32 | 0625062022 BALL BEARING 6202 C0 2 | BALL BEARING 6202 C0 2 | 1 | $17.04 | Available | 1 |
| 33 | 77230058000 NEEDLE BEARING NK16/16 | NEEDLE BEARING NK16/16 | 1 | $22.21 | Available | 1 |
| 34 | 0472300120 CIRCLIP 30X1,2 | CIRCLIP 30X1,2 | 1 | $1.99 | Available | 1 |
| 35 | 81235055020 WATER PUMP ROTOR | WATER PUMP ROTOR | 1 | $11.87 | Available | 1 |
| 36 | 61230045000 CAP NUT M6 STAINLESS STEEL | CAP NUT M6 STAINLESS STEEL | 1 | $2.99 | Available | 1 |
| 38 | 0760153045 SHAFT SEAL RING 15/30/4,5BA | SHAFT SEAL RING 15/30/4,5BA | 2 | $8.02 | Backorder — Restocking | 2 |
| 39 | 77235053000 GASKET FOR WATER PUMP COVER | GASKET FOR WATER PUMP COVER | 1 | $10.66 | Available | 1 |
| 40 | 77235052000 WATER PUMP COVER | WATER PUMP COVER | 1 | $48.38 | Available | 1 |
| 41 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | $3.99 | Available | 4 |
| 43 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 44 | 0770010010 o-ring 10.00x1.00 NBR70 | o-ring 10.00x1.00 NBR70 | 1 | $2.99 | Available | 1 |
| 45 | 77336008010 HOLDING BOLT | HOLDING BOLT | 1 | $9.78 | Available | 1 |
| 46 | 77236072020 water pump wear bushing | water pump wear bushing | 1 | $12.42 | Available | 1 |
| 47 | 07700900151 O-RING 9x1,5 V80 SH | O-RING 9x1,5 V80 SH | 2 | $2.99 | Available | 2 |
| 48 | 77236081000 ANGLE PIECE F. BREATHER SYSTEM | ANGLE PIECE F. BREATHER SYSTEM | 1 | $4.99 | Available | 1 |
| 49 | 81235055110 DISC WATER PUMP | DISC WATER PUMP | 1 | $6.15 | Available | 1 |
| 50 | 77236072033 AGW CPL. | AGW CPL. | — | — | Obsolete | View Details |
| 51 | 77235055010 WATER PUMP REP. KIT 11-14 | WATER PUMP REP. KIT 11-14 | — | $62.80 | Available | 1 |
