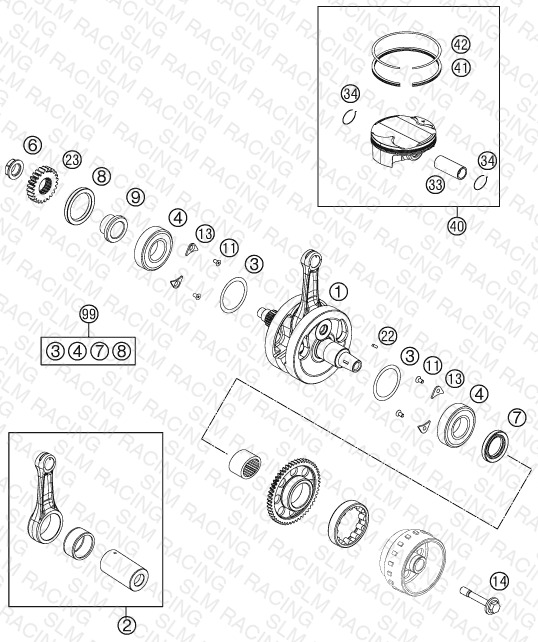

CRANKSHAFT, PISTON
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77230118000 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | — | Obsolete | View Details |
| 2 | 77230115044 CONNECTING ROD REPAIR SET | CONNECTING ROD REPAIR SET | 1 | — | Obsolete | View Details |
| 3 | 56030081000 THRUST WASHER 30,5X45X0,10 | THRUST WASHER 30,5X45X0,10 | — | $1.99 | Available | 1 |
| 3 | 56030081100 THRUST WASHER 30,7X47X0,15 | THRUST WASHER 30,7X47X0,15 | — | $2.99 | Available | 1 |
| 3 | 56030081200 THRUST WASHER 30,5X45X0,30 | THRUST WASHER 30,5X45X0,30 | — | $2.99 | Available | 1 |
| 4 | 77330082100 CYL. ROLLER BEARING NJ206 ECP | CYL. ROLLER BEARING NJ206 ECP | 2 | $113.62 | Available | 2 |
| 6 | 77230029000 NUT PRIMARY WHEEL | NUT PRIMARY WHEEL | 1 | $5.05 | Available | 1 |
| 7 | 0760304772 SH.SEAL RING 30X47X7 BSL VITON | SH.SEAL RING 30X47X7 BSL VITON | 1 | $23.97 | Available | 1 |
| 8 | 0760405560 SHAFT SEAL RING A40x55x6 VITON | SHAFT SEAL RING A40x55x6 VITON | 2 | $13.96 | Available | 2 |
| 9 | 77232022000 SPACER BUSHING PRIMARY GEAR | SPACER BUSHING PRIMARY GEAR | 1 | $12.97 | Available | 1 |
| 11 | 0019050103 INT TORX FLAT HEAD M 5X10 8.8 | INT TORX FLAT HEAD M 5X10 8.8 | 4 | $2.99 | Available | 4 |
| 13 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 4 | $1.99 | Available | 4 |
| 14 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 22 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 23 | 77232023024 PRIMARY GEAR 24T. | PRIMARY GEAR 24T. | 1 | $111.20 | Available | 1 |
| 33 | 77230133000 PISTON PIN 350 | PISTON PIN 350 | 1 | $60.27 | Available | 1 |
| 34 | 77230174000 CIRCLIP | CIRCLIP | 2 | $3.99 | Available | 2 |
| 40 | 77230107000 I PISTON CPL. 350 | PISTON CPL. 350 | 1 | — | Obsolete | View Details |
| 40 | 77230107000 II PISTON CPL. 350 | PISTON CPL. 350 | 1 | $533.38 | Available | |
| 41 | 77230032000 SCRAPER RING 350 | SCRAPER RING 350 | 1 | $50.60 | Out of Stock | Notify Me |
| 42 | 77230030000 COMPRESSIONRING 350 | COMPRESSIONRING 350 | 1 | $50.26 | Available | 1 |
| 99 | 00050002303 CRANKSHAFT REP. KIT 350SX-F | CRANKSHAFT REP. KIT 350SX-F | — | — | Obsolete | View Details |
