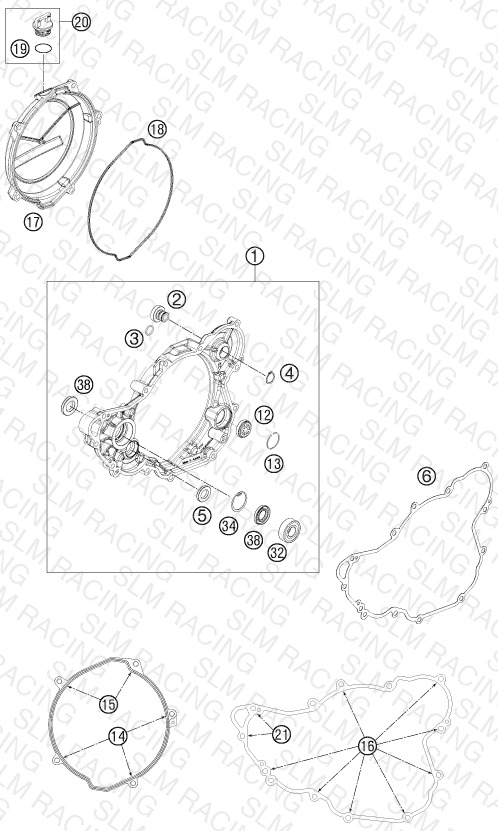

CLUTCH COVER
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77230001044 CLUTCH COVER CPL. | CLUTCH COVER CPL. | 1 | $168.40 | Available | 1 |
| 2 | 77230001010 PLUG STARTING LEVER | PLUG STARTING LEVER | 1 | $12.97 | Available | 1 |
| 3 | 0770140200 O-RING 14,00X2,00 | O-RING 14,00X2,00 | 1 | $2.99 | Available | 1 |
| 4 | 0471170010 CIRCLIP DIN0471-17X1 | CIRCLIP DIN0471-17X1 | 2 | $2.99 | Available | 2 |
| 5 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 6 | 77230025000 CLUTCH COVER GASKET | CLUTCH COVER GASKET | 1 | $28.70 | Available | 1 |
| 12 | 59030019100 OIL LEVEL GLASS | OIL LEVEL GLASS | 1 | $25.07 | Available | 1 |
| 13 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 | CIRCLIP OIL LEVEL GLASS 03 | 1 | $1.99 | Available | 1 |
| 14 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 6 | $3.99 | Available | 6 |
| 15 | 0025060456 HH COLLAR SCREW M6X45 TX30 | HH COLLAR SCREW M6X45 TX30 | 1 | $2.99 | Available | 1 |
| 16 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | $3.99 | Available | 4 |
| 17 | 7723002600015 CLUTCH COVER OUTSIDE | CLUTCH COVER OUTSIDE | 1 | $109.33 | Available | 1 |
| 18 | 77230027000 GASKET FOR OUTER CLUTCH COVER | GASKET FOR OUTER CLUTCH COVER | 1 | $16.27 | Available | 1 |
| 19 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 20 | 58030120000 OIL FILLER CAP M24x3 W. O-R | OIL FILLER CAP M24x3 W. O-R | 1 | $9.45 | Available | 1 |
| 21 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 32 | 0625062022 BALL BEARING 6202 C0 2 | BALL BEARING 6202 C0 2 | 1 | $17.04 | Available | 1 |
| 34 | 0472300120 CIRCLIP 30X1,2 | CIRCLIP 30X1,2 | 1 | $1.99 | Available | 1 |
| 38 | 0760153045 SHAFT SEAL RING 15/30/4,5BA | SHAFT SEAL RING 15/30/4,5BA | 2 | $8.02 | Backorder — Restocking | 2 |
