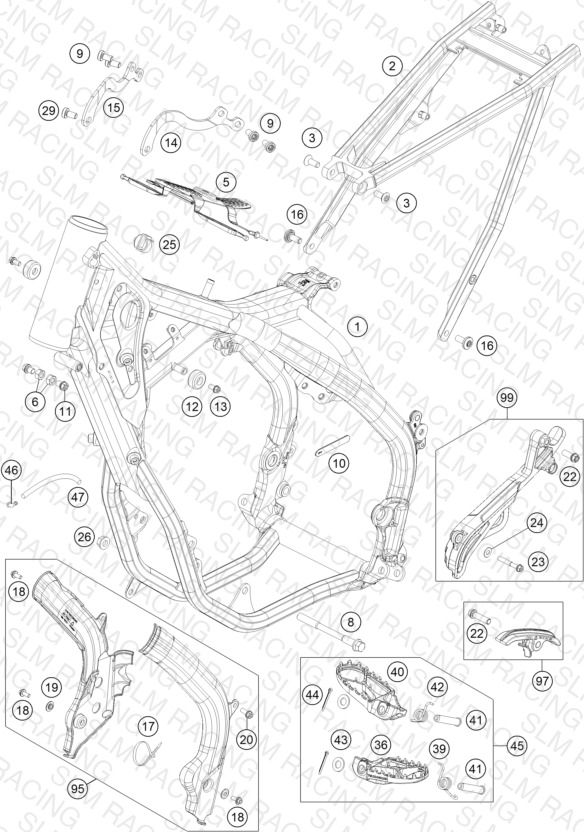

FRAME
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 55603101000EB Frame "556Q2" El. Orange | Frame "556Q2" El. Orange | 1 | — | Obsolete | View Details |
| 2 | 79003002100 Subframe 2018 | Subframe 2018 | 1 | $315.03 | Available | 1 |
| 3 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 2 | $2.99 | Available | 2 |
| 5 | 79607012000 TANK REST RUBBER | TANK REST RUBBER | 1 | $11.87 | Available | 1 |
| 6 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 8 | 77203014000 engine brac.scr. M10x115 | engine brac.scr. M10x115 | 2 | $10.55 | Available | 2 |
| 9 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 | AH-COLLAR SCREW M8X15 TORX45 | 4 | $2.99 | Available | 4 |
| 10 | 60011093075 RUBBER CABLE TIE 75MM 03 | RUBBER CABLE TIE 75MM 03 | — | $6.15 | Available | 1 |
| 11 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | $3.99 | Available | 2 |
| 12 | 50307014000 TANK ROLLER 12X26X12 '98 | TANK ROLLER 12X26X12 '98 | 3 | $12.97 | Available | 3 |
| 13 | 0026060136 COLLAR SCREW M6X13 ISA30 | COLLAR SCREW M6X13 ISA30 | 2 | $3.99 | Available | 2 |
| 14 | 55403113000 ENGINE BRACE LEFT | ENGINE BRACE LEFT | 1 | $28.48 | Available | 1 |
| 15 | 55403114000 ENGINE BRACE RIGHT | ENGINE BRACE RIGHT | 1 | $25.95 | Available | 1 |
| 16 | 79003003000 Special screw M8X18 TORX45 SL | Special screw M8X18 TORX45 SL | 2 | $3.99 | Available | 2 |
| 17 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | 1 | $1.99 | Available | 1 |
| 17 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 3 | $2.99 | Available | 3 |
| 18 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 | HH COLLAR SCREW M 5X12 WS=6 | 4 | $2.99 | Available | 4 |
| 19 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 20 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 3 | $3.99 | Available | 3 |
| 22 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | $3.62 | Available | 2 |
| 23 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 24 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 25 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | $4.99 | Available | 1 |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 29 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 2 | $6.26 | Available | 2 |
| 36 | 79603040000 FOOTREST L/S EXC 2017 | FOOTREST L/S EXC 2017 | 1 | $52.68 | Available | 1 |
| 39 | 79003045000 FOOTREST SPRING L/S 2016 | FOOTREST SPRING L/S 2016 | 1 | $2.99 | Available | 1 |
| 40 | 79603041000 FOOTREST R/S EXC 2017 | FOOTREST R/S EXC 2017 | 1 | $52.68 | Available | 1 |
| 41 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 42 | 79003044000 FOOTREST SPRING R/S 2016 | FOOTREST SPRING R/S 2016 | 1 | $2.99 | Available | 1 |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 45 | 79603040033 FOOTREST-SET | FOOTREST-SET | 1 | $132.98 | Available | 1 |
| 46 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | $6.15 | Available | 1 |
| 47 | 50430087000 preformed hose 6x10 ECO | preformed hose 6x10 ECO | 1 | — | Obsolete | View Details |
| 95 | 79003094000EB FRAME PROTECTION SET ORANGE | FRAME PROTECTION SET ORANGE | 1 | $43.00 | Available | 1 |
| 97 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 | CHAIN SLIDING KIT BELOW CPL.16 | 1 | $21.00 | Available | 1 |
| 99 | 55403096010 SPROCKET COVER KIT | SPROCKET COVER KIT | 1 | $28.92 | Available | 1 |
