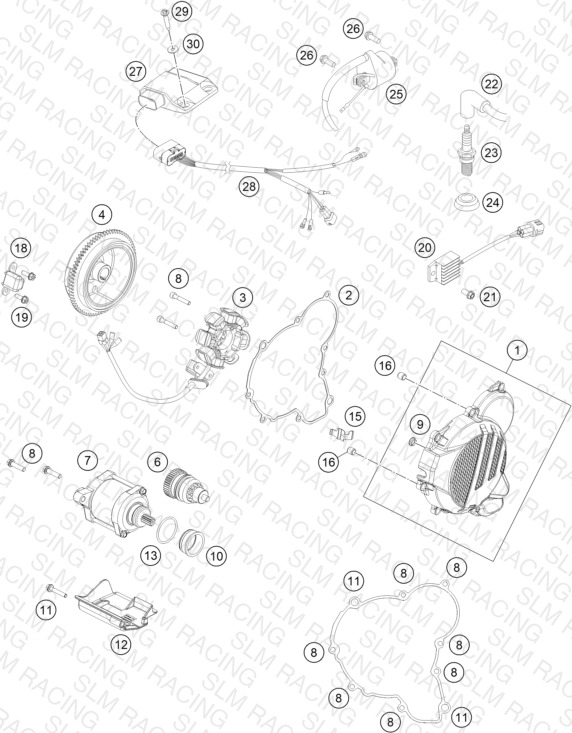

IGNITION SYSTEM
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 5543020214415 Ignition cover cpl. | Ignition cover cpl. | 1 | $105.26 | Available | 1 |
| 2 | 55430040000 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | $17.15 | Available | 1 |
| 3 | 55439204000 STATOR | STATOR | 1 | $152.23 | Available | 1 |
| 4 | 55439205000 ROTOR | ROTOR | 1 | $458.80 | Available | 1 |
| 6 | 55440126000 BENDIX | BENDIX | 1 | $145.96 | Available | 1 |
| 7 | 55440001000 STARTER ENGINE | STARTER ENGINE | 1 | $280.27 | Available | 1 |
| 8 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | $3.99 | Available | 4 |
| 9 | 55140030100 COLLAR BUSHING | COLLAR BUSHING | 4 | $3.99 | Available | 4 |
| 10 | 55440012000 BEARING BUSH | BEARING BUSH | 1 | $14.51 | Available | 1 |
| 11 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 12 | 55440040044 PROTECTION CAP STARTER ENGINE | PROTECTION CAP STARTER ENGINE | 1 | $19.68 | Available | 1 |
| 13 | 0770021260 O-RING 34,59X2,62 | O-RING 34,59X2,62 | 1 | $2.99 | Available | 1 |
| 15 | 55439140220 Holding plate generator cable | Holding plate generator cable | 1 | $18.80 | Available | 1 |
| 16 | 49030090100 DOWEL 9,8 X7X10 | DOWEL 9,8 X7X10 | 2 | $2.99 | Available | 2 |
| 18 | 59039034000 pulse generator KOKUSAN 4K3-A/ | pulse generator KOKUSAN 4K3-A/ | 1 | $105.04 | Available | 1 |
| 19 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 3 | $2.99 | Available | 3 |
| 20 | 80011034000 VOLTAGE REGULATOR 04 | VOLTAGE REGULATOR 04 | 1 | $117.14 | Available | 1 |
| 21 | 0023060123 COLLAR SCREW M6X12 TX | COLLAR SCREW M6X12 TX | 4 | $2.99 | Available | 4 |
| 22 | 47039090000 SPARK PLUG CAP NGK REINFORC.04 | SPARK PLUG CAP NGK REINFORC.04 | 1 | $36.99 | Available | 1 |
| 23 | 54739093000 SPARK PLUG | SPARK PLUG | 1 | $6.37 | Available | 1 |
| 24 | 50231012000 SEALING CUP FOR SPARK PLUG | SEALING CUP FOR SPARK PLUG | 1 | $4.99 | Available | 1 |
| 25 | 59039006000 IGNITIONCOIL ''IG5128'' | IGNITIONCOIL ''IG5128'' | 1 | $77.87 | Available | 1 |
| 26 | 0026060186 COLLAR SCREW M6X18 ISA30 | COLLAR SCREW M6X18 ISA30 | 2 | $1.99 | Available | 2 |
| 27 | 55439131100 Dash board box 250 18 | Dash board box 250 18 | 1 | $314.70 | Available | 1 |
| 28 | 55439032000 HARNESS CDI BOX 2T 2017 | HARNESS CDI BOX 2T 2017 | 1 | $66.98 | Available | 1 |
| 29 | 0017060305 Special screw K60X30 WS=6 | Special screw K60X30 WS=6 | 2 | $2.99 | Available | 2 |
| 30 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
