WIRING HARNESS
Parts (36)

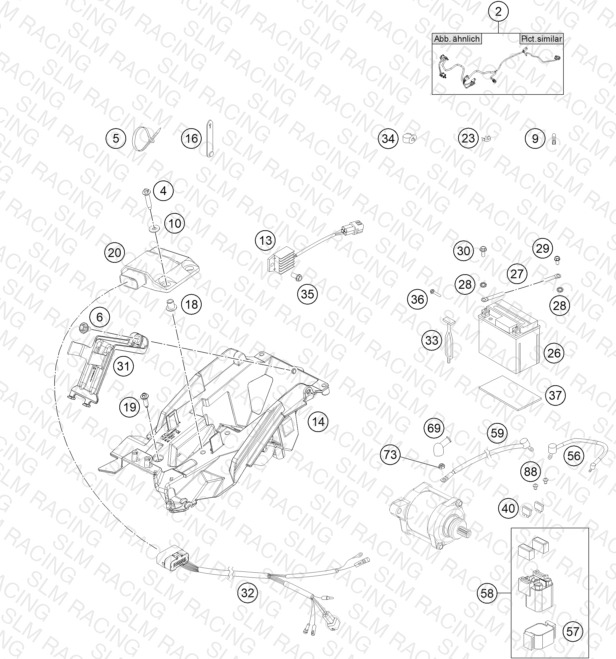

| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 54811075800 WIRING HARNESS 200/300 XC-W 14 | WIRING HARNESS 200/300 XC-W 14 | 1 | $154.76 | Available | 1 |
| 4 | 0017060305 Special screw K60X30 WS=6 | Special screw K60X30 WS=6 | 2 | $2.99 | Available | 2 |
| 5 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | 1 | $1.99 | Available | 1 |
| 5 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 1 | $1.99 | Available | 1 |
| 5 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 3 | $2.99 | Available | 3 |
| 6 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 | SPECIAL SCREW M6X12,5 WS=8 | 6 | $2.99 | Available | 6 |
| 9 | 49111425200 BULB 12V 2,3W (W2X4,6D) | BULB 12V 2,3W (W2X4,6D) | 3 | $2.99 | Available | 3 |
| 10 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
| 13 | 80011034000 VOLTAGE REGULATOR 04 | VOLTAGE REGULATOR 04 | 1 | $117.14 | Available | 1 |
| 14 | 79011055100 BATTERY BOX | BATTERY BOX | 1 | $44.54 | Available | 1 |
| 16 | 60011093060 RUBBER CABLE TIE 60MM 03 | RUBBER CABLE TIE 60MM 03 | 1 | $4.99 | Available | 1 |
| 18 | 60308006000 COLLAR BUSHING 6,2X9,2X15X12,5 | COLLAR BUSHING 6,2X9,2X15X12,5 | 2 | $3.99 | Available | 2 |
| 19 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 | SCREW F. PLASTIC K60X20AL SW6 | 1 | $3.99 | Available | 1 |
| 20 | 55439131100 Dash board box 250 18 | Dash board box 250 18 | 1 | $314.70 | Available | 1 |
| 23 | 57013072000 WIRING HOLDER 12MM | WIRING HOLDER 12MM | 1 | $4.99 | Available | 1 |
| 23 | 57013072100 WIRING HOLDER 16MM | WIRING HOLDER 16MM | 1 | $1.99 | Available | 1 |
| 26 | 77311953000 LITHIUM ION BATTERY 5S | LITHIUM ION BATTERY 5S | 1 | $195.35 | Available | 1 |
| 27 | 58411097100 GROUND CABLE D=6MM L=140MM '97 | GROUND CABLE D=6MM L=140MM '97 | 1 | $10.55 | Available | 1 |
| 28 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 2 | $2.99 | Available | 2 |
| 29 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K | EJOT SPIRAL SCREW SF M5X10-K | 2 | $2.99 | Available | 2 |
| 30 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 1 | $3.99 | Available | 1 |
| 31 | 79011056100 BATTERY BOX SUPPORT | BATTERY BOX SUPPORT | 1 | $3.99 | Available | 1 |
| 32 | 55439032000 HARNESS CDI BOX 2T 2017 | HARNESS CDI BOX 2T 2017 | 1 | $66.98 | Available | 1 |
| 33 | 50303018000 RUBBER L=145MM | RUBBER L=145MM | 1 | $7.58 | Available | 1 |
| 34 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | $4.99 | Available | 1 |
| 35 | 0023060123 COLLAR SCREW M6X12 TX | COLLAR SCREW M6X12 TX | 4 | $2.99 | Available | 4 |
| 36 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 2 | $2.99 | Available | 2 |
| 37 | 59003001099 METAMOLL 90X45X3MM 03 | METAMOLL 90X45X3MM 03 | 1 | $2.99 | Backorder — Restocking | 1 |
| 40 | 58011109110 Plug-in fuse, big 10A | Plug-in fuse, big 10A | 2 | $2.99 | Available | 2 |
| 56 | 58711086000 WIRING HARNESS BATTERY DUKE'99 | WIRING HARNESS BATTERY DUKE'99 | 1 | $18.14 | Available | 1 |
| 57 | 58211058050 BRACKET RUBBER F.STARTRELAY 07 | BRACKET RUBBER F.STARTRELAY 07 | 1 | $6.15 | Available | 1 |
| 58 | 58211058000 Starter reley 12V 99 | Starter reley 12V 99 | 1 | $85.46 | Available | 1 |
| 59 | 55111059000 STARTERCABLE 1100MM 07 | STARTERCABLE 1100MM 07 | 1 | $30.68 | Available | 1 |
| 69 | 77240099000 Protection cap for starter eng | Protection cap for starter eng | 1 | $7.47 | Available | 1 |
| 73 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 88 | 0902060083 Oval head screw ISO 7380 M 6X8 | Oval head screw ISO 7380 M 6X8 | 2 | $1.99 | Available | 2 |
