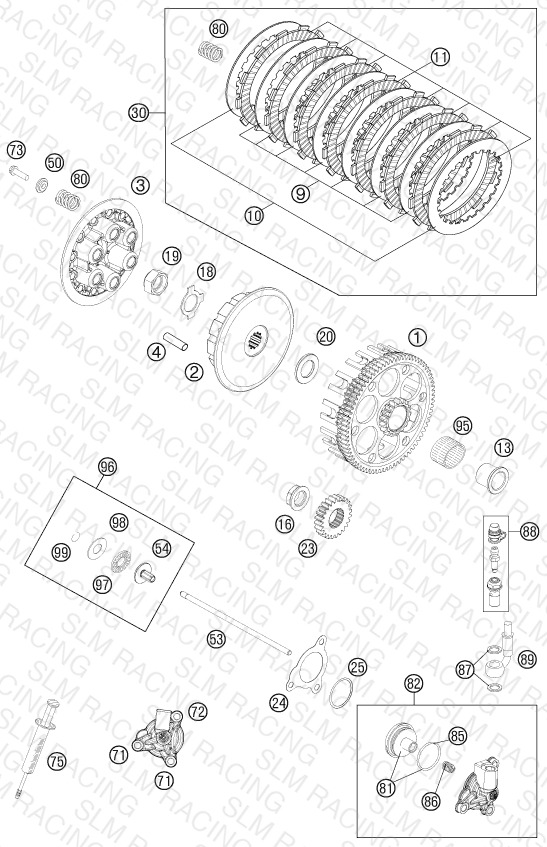

CLUTCH
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77232001073 OUTER CLUTCH CPL. | OUTER CLUTCH CPL. | 1 | — | Obsolete | View Details |
| 2 | 77232002000 INNER CLUTCH HUB | INNER CLUTCH HUB | 1 | $122.53 | Available | 1 |
| 3 | 77232003000 PRESSURE PLATE | PRESSURE PLATE | 1 | $54.88 | Available | 1 |
| 4 | 77232004000 DRIVING SLEEVE D=7,95 L=38 | DRIVING SLEEVE D=7,95 L=38 | 12 | $3.99 | Available | 12 |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | $12.86 | Available | 7 |
| 10 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | $11.54 | Available | 1 |
| 11 | 59032011100 LINING DISC 2MM 04 | LINING DISC 2MM 04 | 8 | $26.39 | Available | 8 |
| 13 | 77232015000 INNER RING | INNER RING | 1 | $24.30 | Available | 1 |
| 16 | 77230029000 NUT PRIMARY WHEEL | NUT PRIMARY WHEEL | 1 | $5.05 | Available | 1 |
| 18 | 77232018000 SHEET METAL LOCK | SHEET METAL LOCK | 1 | $7.69 | Available | 1 |
| 19 | 77232019000 HEXAGON NUT M18X1,5 | HEXAGON NUT M18X1,5 | 1 | $15.17 | Available | 1 |
| 20 | 77232009100 WASHER 21,8 X 37 X 3 | WASHER 21,8 X 37 X 3 | 1 | $10.11 | Available | 1 |
| 23 | 77232023024 PRIMARY GEAR 24T. | PRIMARY GEAR 24T. | 1 | $111.20 | Available | 1 |
| 24 | 77232062000 GASKET F. OUTPUT CYLINDER | GASKET F. OUTPUT CYLINDER | 1 | $4.99 | Available | 1 |
| 25 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 30 | 78132010010 CLUTCH KIT 350 SX-F 11-15 | CLUTCH KIT 350 SX-F 11-15 | 1 | $288.96 | Available | 1 |
| 50 | 59032006000 SPRING RETAINER 6,2X12X18X3,6 | SPRING RETAINER 6,2X12X18X3,6 | 6 | $2.99 | Available | 6 |
| 53 | 77232054000 PUSH ROD | PUSH ROD | 1 | $19.46 | Available | 1 |
| 54 | 78032057000 PRESSURE PIECE | PRESSURE PIECE | 1 | $30.68 | Available | 1 |
| 71 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 4 | $3.99 | Available | 4 |
| 72 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 2 | $3.99 | Available | 2 |
| 73 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | $3.99 | Available | 4 |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 80 | 52332005000 CLUTCH SPRING 2,4X40 200'98 | CLUTCH SPRING 2,4X40 200'98 | 5 | $3.99 | Available | 5 |
| 81 | 77232066000 PISTON CPL. | PISTON CPL. | 1 | $58.62 | Available | 1 |
| 82 | 77232061044 OUTPUT CYLINDER CPL. | OUTPUT CYLINDER CPL. | 1 | $155.53 | Available | 1 |
| 85 | 54832067000 O-RING | O-RING | 1 | $3.99 | Available | 1 |
| 86 | 54832069000 PRESSURE SPRING | PRESSURE SPRING | 1 | $14.18 | Available | 1 |
| 87 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 1 | $2.99 | Available | 1 |
| 88 | 62513020000 BLEEDER SCREW CPL. 05 | BLEEDER SCREW CPL. 05 | 1 | $32.33 | Available | 1 |
| 89 | 54832063000 CLUTCH PIPE 06 | CLUTCH PIPE 06 | 1 | $118.02 | Available | 1 |
| 95 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 96 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | $30.68 | Available | 1 |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
