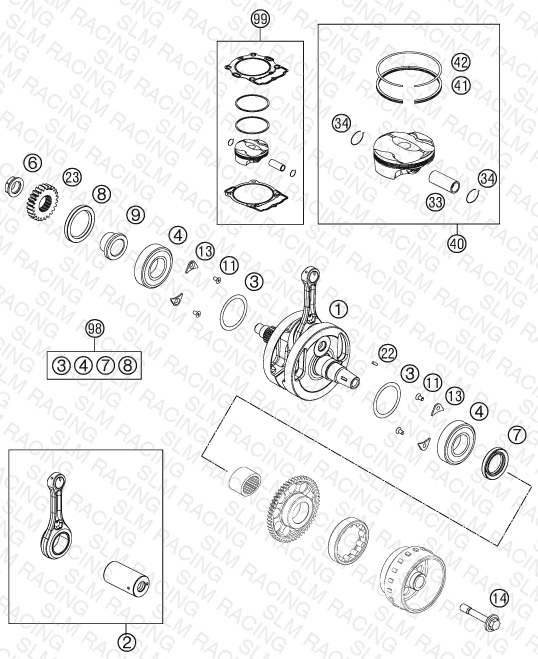

CRANKSHAFT, PISTON
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77730018100 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | $1228.91 | Available | 1 |
| 2 | 77730015144 CONNECTING ROD REPAIR SET | CONNECTING ROD REPAIR SET | 1 | $581.89 | Available | 1 |
| 3 | 0988324510 THRUST WASHER 988ST 32X0,1 | THRUST WASHER 988ST 32X0,1 | — | $1.99 | Available | 1 |
| 3 | 0988324515 THRUST WASHER 988ST 32X0,15 | THRUST WASHER 988ST 32X0,15 | — | $1.99 | Available | 1 |
| 3 | 0988324530 THRUST WASHER 988ST 32X0,30 | THRUST WASHER 988ST 32X0,30 | — | $1.99 | Available | 1 |
| 4 | 77330082200 BEARING NJ 206 ECP/HN3C4HVA624 | BEARING NJ 206 ECP/HN3C4HVA624 | 2 | $110.43 | Available | 2 |
| 6 | 77230029000 NUT PRIMARY WHEEL | NUT PRIMARY WHEEL | 1 | $5.05 | Available | 1 |
| 7 | 0760304772 SH.SEAL RING 30X47X7 BSL VITON | SH.SEAL RING 30X47X7 BSL VITON | 1 | $23.97 | Available | 1 |
| 8 | 0760405560 SHAFT SEAL RING A40x55x6 VITON | SHAFT SEAL RING A40x55x6 VITON | 2 | $13.96 | Available | 2 |
| 9 | 77232022000 SPACER BUSHING PRIMARY GEAR | SPACER BUSHING PRIMARY GEAR | 1 | $12.97 | Available | 1 |
| 11 | 0019050106 INT TORX FLAT HEAD M5X10 10.9 | INT TORX FLAT HEAD M5X10 10.9 | 2 | $2.99 | Available | 2 |
| 13 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 4 | $1.99 | Available | 4 |
| 14 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 22 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 23 | 77232023024 PRIMARY GEAR 24T. | PRIMARY GEAR 24T. | 1 | $111.20 | Available | 1 |
| 33 | 77730033200 PISTON PIN | PISTON PIN | 1 | $55.65 | Available | 1 |
| 34 | 77730074000 CIRCLIP 16X1.4 MM | CIRCLIP 16X1.4 MM | 2 | $13.30 | Out of Stock | Notify Me |
| 40 | 77730007100 I PISTON I CPL. 250 | PISTON I CPL. 250 | — | $445.27 | Available | |
| 40 | 77730007100 II PISTON II CPL. 250 | PISTON II CPL. 250 | — | $583.21 | Available | |
| 41 | 77730032000 SCRAPER RING 250 | SCRAPER RING 250 | 1 | $64.34 | Available | 1 |
| 42 | 77730030000 COMPRESSIONRING 250 | COMPRESSIONRING 250 | 1 | $48.17 | Available | 1 |
| 98 | 00050002311 CRANKSHAFT REP. KIT SX-F 13-15 | CRANKSHAFT REP. KIT SX-F 13-15 | — | $227.14 | Available | 1 |
| 99 | 00050000222 PISTON KIT GR.I 250 SX-F13-14 | PISTON KIT GR.I 250 SX-F13-14 | — | $545.70 | Available | 1 |
| 99 | 00050000223 PISTON KIT GR.II 250 SX-F 13 | PISTON KIT GR.II 250 SX-F 13 | — | $582.44 | Available | 1 |
