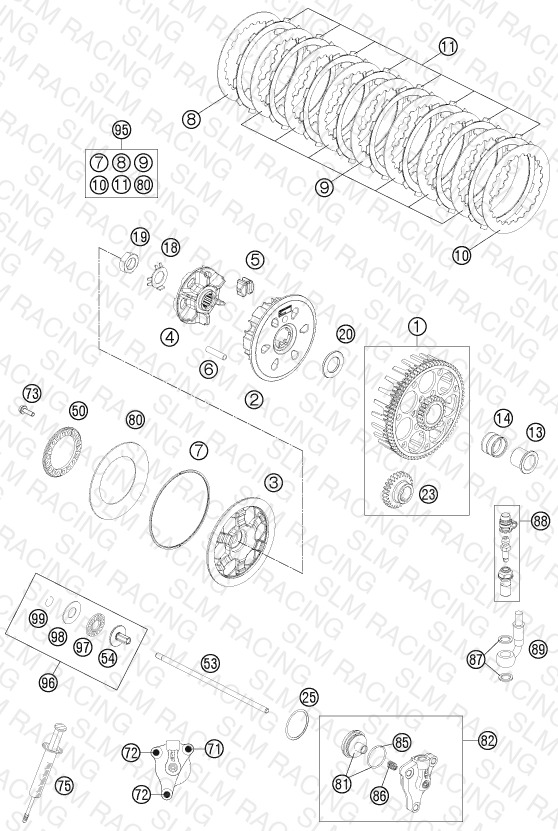

CLUTCH
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54832024044 CLUTCH CAGE INCL. PRIM. WHEEL | CLUTCH CAGE INCL. PRIM. WHEEL | 1 | $534.92 | Available | 1 |
| 2 | 54832002008 INNER CLUTCH HUB | INNER CLUTCH HUB | 1 | $158.50 | Available | 1 |
| 3 | 78132003000 PRESSURE PLATE | PRESSURE PLATE | 1 | $245.73 | Available | 1 |
| 4 | 54832002111 CLUTCH HUB | CLUTCH HUB | 1 | $113.18 | Available | 1 |
| 5 | 78132025100 DAMPING RUBBER | DAMPING RUBBER | 6 | $4.99 | Available | 6 |
| 6 | 78132004000 SLEEVE 7,5X33.4 | SLEEVE 7,5X33.4 | 6 | $4.99 | Available | 6 |
| 7 | 78132013000 WASHER 112X118X1.5 | WASHER 112X118X1.5 | 1 | $12.75 | Available | 1 |
| 8 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | $11.54 | Available | 1 |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | $12.86 | Available | 7 |
| 10 | 78932010000 INTERMEDIATE DISC 1MM | INTERMEDIATE DISC 1MM | 1 | $14.18 | Available | 1 |
| 11 | 54832011100 LINING DISC 1,95 MM | LINING DISC 1,95 MM | 7 | $30.35 | Available | 7 |
| 13 | 54832015000 COLLARSLEEVE | COLLARSLEEVE | 1 | $51.47 | Available | 1 |
| 14 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 18 | 78132018000 TAB WASHER | TAB WASHER | 1 | $6.92 | Available | |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 20 | 54832009000 WASHER 21.7 X 37 X 2.5 | WASHER 21.7 X 37 X 2.5 | 1 | $17.04 | Available | 1 |
| 23 | 54832000026 PRIMARY GEAR 26T 2003 | PRIMARY GEAR 26T 2003 | 1 | $106.58 | Available | 1 |
| 25 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 50 | 54832006000 SPRING RING | SPRING RING | 1 | $43.00 | Available | 1 |
| 53 | 54832054100 PUSH ROD | PUSH ROD | 1 | $13.52 | Available | 1 |
| 54 | 78032057000 PRESSURE PIECE | PRESSURE PIECE | 1 | $30.68 | Available | 1 |
| 71 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 72 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 6 | $3.99 | Available | 6 |
| 73 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 3 | $2.99 | Available | 3 |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 80 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I | BELLEVILLE SPRING 71X115X1,5 I | 1 | $37.61 | Available | 1 |
| 81 | 54832066000 PISTON CPL. | PISTON CPL. | 1 | $80.51 | Available | 1 |
| 82 | 54832061044 OUTPUT CYLINDER CPL. 06 | OUTPUT CYLINDER CPL. 06 | 1 | $161.69 | Available | 1 |
| 85 | 54832067000 O-RING | O-RING | 1 | $3.99 | Available | 1 |
| 86 | 54832069000 PRESSURE SPRING | PRESSURE SPRING | 1 | $14.18 | Available | 1 |
| 87 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | $2.99 | Available | 2 |
| 88 | 62513020000 BLEEDER SCREW CPL. 05 | BLEEDER SCREW CPL. 05 | 1 | $32.33 | Available | 1 |
| 89 | 54832063000 CLUTCH PIPE 06 | CLUTCH PIPE 06 | 1 | $118.02 | Available | 1 |
| 95 | 54832011110 CLUTCH KIT 250/300 13-15 | CLUTCH KIT 250/300 13-15 | — | $269.16 | Available | 1 |
| 96 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | $30.68 | Available | 1 |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
