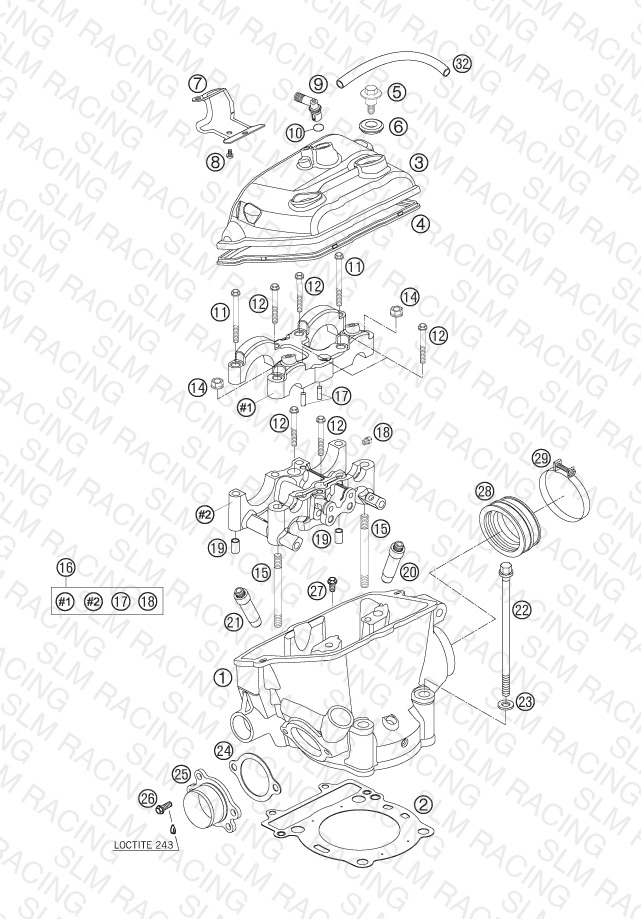

CYLINDER HEAD
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77036020244 CYLINDERHEAD CPL. 07 | CYLINDERHEAD CPL. 07 | 1 | — | Obsolete | View Details |
| 2 | 77030036000 CYLINDER HEAD GASKET 05 | CYLINDER HEAD GASKET 05 | 1 | $50.15 | Available | 1 |
| 3 | 77036052100 VALVE COVER 06 | VALVE COVER 06 | 1 | — | Obsolete | View Details |
| 4 | 77036053000 VALVE COVER GASKET 05 | VALVE COVER GASKET 05 | 1 | $12.86 | Available | 1 |
| 5 | 77036055100 VALVE COVER SCR. M6X12 WS10 07 | VALVE COVER SCR. M6X12 WS10 07 | 3 | $3.99 | Available | 3 |
| 6 | 77036054050 RUBBER GASKET FOR SCREW 05 | RUBBER GASKET FOR SCREW 05 | 3 | $6.47 | Out of Stock | Notify Me |
| 7 | 77036052050 COVER PLATE BREATHER 05 | COVER PLATE BREATHER 05 | 1 | $21.44 | Available | 1 |
| 8 | 0009050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 2 | $2.99 | Available | 2 |
| 9 | 60038082000 ANGLE CONNECTOR LC8 03 | ANGLE CONNECTOR LC8 03 | 1 | $2.99 | Available | 1 |
| 10 | 0770080020 O-RING 8X2 SILICONE | O-RING 8X2 SILICONE | 1 | $1.99 | Available | 1 |
| 11 | 77036081000 SPECIAL SCREW M7X73 WS 10 | SPECIAL SCREW M7X73 WS 10 | 2 | $25.40 | Available | 2 |
| 12 | 77036080000 SPECIAL SCREW M7X40 WS10 | SPECIAL SCREW M7X40 WS10 | 2 | $3.99 | Available | 2 |
| 14 | 77036024000 COLLAR NUT 7X1 05 | COLLAR NUT 7X1 05 | 2 | $6.15 | Available | 2 |
| 15 | 77036023000 STUD 7X1 05 | STUD 7X1 05 | 2 | $6.81 | Available | 2 |
| 16 | 77036020150 BUSH SUPPORT A.BRIDGE CPL '05 | BUSH SUPPORT A.BRIDGE CPL '05 | 1 | — | Obsolete | View Details |
| 17 | 0402050980 needle roller DIN 5402 5x9.8 | needle roller DIN 5402 5x9.8 | 2 | $1.99 | Available | 2 |
| 18 | 60030063050 oil jet 50 M5 | oil jet 50 M5 | 1 | $11.10 | Available | 1 |
| 19 | 77036090000 DOWEL(BUSH BRIDGE)7/9/8 05 | DOWEL(BUSH BRIDGE)7/9/8 05 | 4 | $6.15 | Available | 4 |
| 20 | 77036025201 VALVE GUIDE INTAKE | VALVE GUIDE INTAKE | 2 | — | Obsolete | View Details |
| 21 | 77036026101 VALVE GUIDE OUTLET | VALVE GUIDE OUTLET | 2 | — | Obsolete | View Details |
| 22 | 77036079000 CYLINDER HEAD SCREW 05 | CYLINDER HEAD SCREW 05 | 2 | $12.75 | Available | 2 |
| 23 | 59036090000 WASHER 10,8X18,8X1,5 | WASHER 10,8X18,8X1,5 | 4 | $1.99 | Available | 4 |
| 24 | 77036041000 GASKET EXHAUST FLANGE 06 | GASKET EXHAUST FLANGE 06 | 1 | $8.24 | Available | 1 |
| 25 | 77036039000 EXHAUST FLANGE CPL. 05 | EXHAUST FLANGE CPL. 05 | 1 | — | Out of Stock | Notify Me |
| 26 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 27 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 28 | 77036044000 INTAKE BOOT 06 | INTAKE BOOT 06 | 1 | $35.08 | Available | 1 |
| 29 | 59030061000 CLAMP D=56MM B=9MM M4X25 | CLAMP D=56MM B=9MM M4X25 EUROPE | 2 | $6.15 | Available | 2 |
| 32 | 77031050000 ENGINE BREATHER TUBE | ENGINE BREATHER TUBE | 1 | $15.17 | Backorder — Restocking | 1 |
