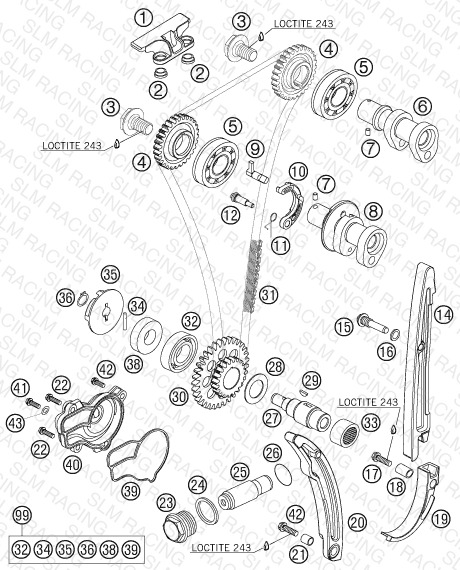

TIMING DRIVE
Parts (42)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77036004000 TIMING CHAIN GUIDE TOP 05 | TIMING CHAIN GUIDE TOP 05 | 1 | $14.84 | Available | 1 |
| 2 | 77036004050 SPACER BUSHING GUIDE RAIL ´05 | SPACER BUSHING GUIDE RAIL ´05 | 2 | $6.15 | Available | 2 |
| 3 | 77036012100 CAMSHAFT GEAR SCREW 08 | CAMSHAFT GEAR SCREW 08 | 2 | $15.72 | Available | 2 |
| 4 | 77036011100 CAMSHAFT GEAR 05 | CAMSHAFT GEAR 05 | 2 | — | Obsolete | View Details |
| 5 | 0625060043 BALL BEARING 6004 NR C3 ´05 | BALL BEARING 6004 NR C3 ´05 | 2 | $16.38 | Available | 2 |
| 6 | 77036009100 CAMSHAFT INTAKE 2006 | CAMSHAFT INTAKE 2006 | 1 | — | Obsolete | View Details |
| 7 | 0402040600 NEEDLE ROOLER DIN5402 NRB 4X6 | NEEDLE ROOLER DIN5402 NRB 4X6 | 2 | $6.15 | Available | 2 |
| 8 | 77036110300 CAMSHAFT EXHAUST | CAMSHAFT EXHAUST | 1 | — | Obsolete | View Details |
| 9 | 77036015100 AUTO DECOMPRESSION SHAFT | AUTO DECOMPRESSION SHAFT | 1 | $57.41 | Available | 1 |
| 10 | 77036016100 AUTO DECO WEIGHT | AUTO DECO WEIGHT | 1 | $64.12 | Available | 1 |
| 11 | 77036017000 SPRING FOR AUTO DECOMPR. 05 | SPRING FOR AUTO DECOMPR. 05 | 1 | $6.15 | Available | 1 |
| 12 | 77036019000 BEARING PIN AUTODECO 06 | BEARING PIN AUTODECO 06 | 1 | — | Obsolete | View Details |
| 14 | 77036001000 TIMING CHAIN GUIDE 05 | TIMING CHAIN GUIDE 05 | 1 | $16.60 | Available | 1 |
| 15 | 77036001160 BUSHING SCREW 06 | BUSHING SCREW 06 | 1 | $3.99 | Available | 1 |
| 16 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 2 | $3.99 | Available | 2 |
| 17 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 18 | 59036001050 SPACER BUSHING 6,1X8,2X13,1 | SPACER BUSHING 6,1X8,2X13,1 | 2 | $4.99 | Available | 2 |
| 19 | 77036005000 SECURING PROTECTION ´05 | SECURING PROTECTION ´05 | 1 | $8.02 | Available | 1 |
| 20 | 77036002000 TIMING CHAIN TENSIONER ´05 | TIMING CHAIN TENSIONER ´05 | 1 | $7.91 | Available | 1 |
| 21 | 77036001050 SPACER BUSHING 6.1X8.2X9.1 05 | SPACER BUSHING 6.1X8.2X9.1 05 | 5 | $4.99 | Available | 5 |
| 22 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 1 | $3.99 | Available | 1 |
| 23 | 78036008000 CHAIN ADJUSTER HOLDING BOLT | CHAIN ADJUSTER HOLDING BOLT | 1 | $25.51 | Available | 1 |
| 24 | 0603242920 CU SEAL-RING DIN7603 A24X29X2 | CU SEAL-RING DIN7603 A24X29X2 | 1 | $3.99 | Available | 1 |
| 25 | 77036003000 CHAIN ADJUSTER HYD. 05 | CHAIN ADJUSTER HYD. 05 | 1 | $86.89 | Available | 1 |
| 26 | 0770180020 o-ring 18.00x2.00 NBR70 | o-ring 18.00x2.00 NBR70 | 1 | $2.99 | Available | 1 |
| 27 | 77036072100 TIMING VALVE JACKSHAFT 08 | TIMING VALVE JACKSHAFT 08 | 1 | $45.31 | Available | 1 |
| 28 | 77036073000 STOP DISK 18,2X30X1 05 | STOP DISK 18,2X30X1 05 | 1 | $3.99 | Available | 1 |
| 29 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 30 | 77036076100 TIMING VALVE TWIN WHEEL 05 | TIMING VALVE TWIN WHEEL 05 | 1 | — | Obsolete | View Details |
| 31 | 77036013000 TIMING CHAIN IWIS 108 ROLLS | TIMING CHAIN IWIS 108 ROLLS | 1 | $118.02 | Available | 1 |
| 32 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 2 | $17.04 | Available | 2 |
| 33 | 0618182412 NEEDLE BEAR.HK1812 18/24/12 05 | NEEDLE BEAR.HK1812 18/24/12 05 | 1 | $9.56 | Available | 1 |
| 34 | 0402031780 Needle roll.DIN5402 NRB 3X17.8 | Needle roll.DIN5402 NRB 3X17.8 | 1 | $1.99 | Available | 1 |
| 35 | 77035055000 WATER PUMP ROTOR 05 | WATER PUMP ROTOR 05 | 1 | $4.99 | Available | 1 |
| 36 | 0471100010 CIRCLIP DIN0471-10X1 | CIRCLIP DIN0471-10X1 | 1 | $2.99 | Available | 1 |
| 38 | 0760123073 SHAFT SEAL RING 12X30X7 PTFE | SHAFT SEAL RING 12X30X7 PTFE | 1 | $14.73 | Available | 1 |
| 39 | 77035053000 MOLDED RING WATER PUMP 05 | MOLDED RING WATER PUMP 05 | 1 | $8.68 | Backorder — Restocking | 1 |
| 40 | 77035052000 WATER PUMP COVER 05 | WATER PUMP COVER 05 | 1 | $47.07 | Available | 1 |
| 41 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 42 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 43 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 99 | 77035055010 WATER PUMP REP. KIT 06-13 | WATER PUMP REP. KIT 06-13 | — | $40.14 | Available | 1 |
