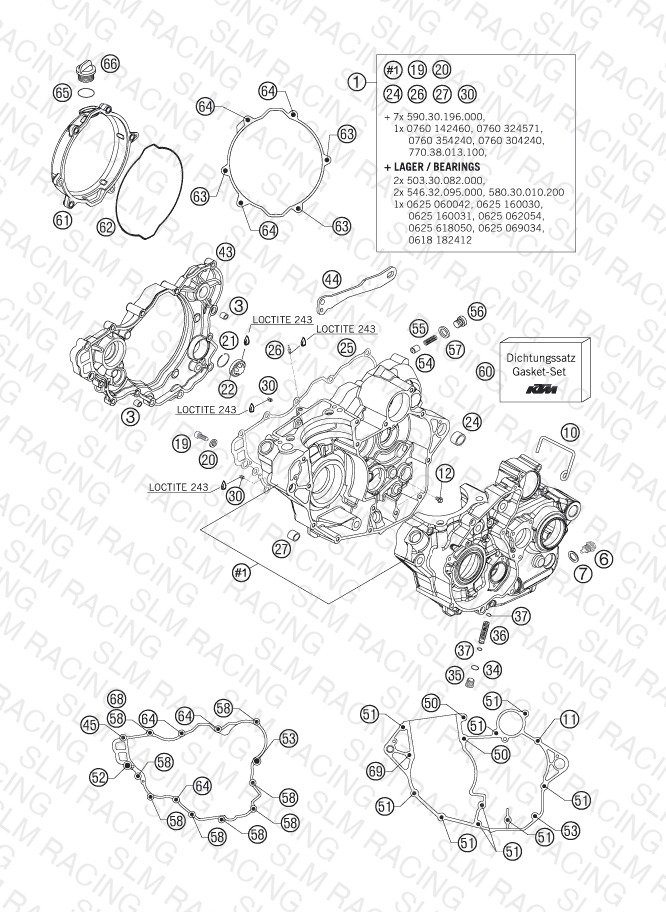

ENGINE CASE
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77030100144 ENGINE CASE CPL. EXC-F/XC-F 07 | ENGINE CASE CPL. EXC-F/XC-F 07 | 1 | — | Obsolete | View Details |
| 3 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
| 6 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 7 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 10 | 77030090000 BRACKET FOR BREATH HOSE | BRACKET FOR BREATH HOSE | 1 | — | Obsolete | View Details |
| 11 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 1 | $2.99 | Available | 1 |
| 12 | 0015060083 HH COLLAR SCREW M 6X8 WS=8 | HH COLLAR SCREW M 6X8 WS=8 | 1 | $2.99 | Available | 1 |
| 19 | 58030080000 LOCATING SCREW M8 L=23 | LOCATING SCREW M8 L=23 | 1 | $14.84 | Available | 1 |
| 20 | 58030081000 CU-SEAL RING 8 X 14 X 3 | CU-SEAL RING 8 X 14 X 3 | 1 | $2.99 | Available | 1 |
| 21 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 | CIRCLIP OIL LEVEL GLASS 03 | 1 | $1.99 | Available | 1 |
| 22 | 59030019000 OIL LEVEL GLASS G 1777 Y | OIL LEVEL GLASS G 1777 Y | 1 | $15.84 | Out of Stock | Notify Me |
| 24 | 59030024000 DOWEL 17 X 19 X 12 | DOWEL 17 X 19 X 12 | 1 | $6.15 | Available | 1 |
| 25 | 77030025100 GASKET FOR CLUTCH COVER 05 | GASKET FOR CLUTCH COVER 05 | 1 | $20.78 | Available | 1 |
| 26 | 60030064070 OIL JET 70 M6X0,75 WS8 03 | OIL JET 70 M6X0,75 WS8 03 | 1 | $13.52 | Available | 1 |
| 27 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | $8.13 | Available | 1 |
| 30 | 59030058000 JET 100 BING(44-031/180) M4 | JET 100 BING(44-031/180) M4 | 2 | $4.99 | Available | 2 |
| 34 | 0770120020 O-RING 12,00X2,00 NBR 70 | O-RING 12,00X2,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 35 | 59038014100 PLUG M16X1,5 | PLUG M16X1,5 | 1 | $19.79 | Available | 1 |
| 36 | 59038015000 OIL SCREEN 11,8X44,5MM | OIL SCREEN 11,8X44,5MM | 1 | $14.84 | Available | 1 |
| 37 | 0770090015 O-RING 9X1,5 NBR | O-RING 9X1,5 NBR | 2 | $2.99 | Available | 2 |
| 43 | 77030001044 CLUTCH COVER CPL. | CLUTCH COVER CPL. | 1 | — | Obsolete | View Details |
| 44 | 77030047100 CHAIN DAMPERSHEET EXC-F 07 | CHAIN DAMPERSHEET EXC-F 07 | 1 | $30.57 | Out of Stock | Notify Me |
| 45 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | — | $3.99 | Available | 1 |
| 50 | 0015060653 HH COLLAR SCREW M 6X65 WS=8 | HH COLLAR SCREW M 6X65 WS=8 | 1 | $2.99 | Available | 1 |
| 51 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 6 | $3.99 | Available | 6 |
| 52 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 1 | $3.99 | Available | 1 |
| 53 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 54 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | $44.43 | Available | 1 |
| 55 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 56 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 58 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 60 | 77030099000 GASKET SET 05 | GASKET SET 05 | 1 | $324.71 | Available | 1 |
| 61 | 77030026100 CLUTCH COVER OUTSIDE 06 | CLUTCH COVER OUTSIDE 06 | 1 | — | Obsolete | View Details |
| 62 | 77030027000 MOLDED RING 05 | MOLDED RING 05 | 1 | $21.99 | Available | 1 |
| 64 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 5 | — | Obsolete | View Details |
| 65 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 66 | 58030020000 PLUG M 24X3 | PLUG M 24X3 | 1 | $6.15 | Available | 1 |
| 68 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 69 | 0015060603 HH COLLAR SCREW M 6X60 WS=8 | HH COLLAR SCREW M 6X60 WS=8 | 1 | $3.99 | Available | 1 |
