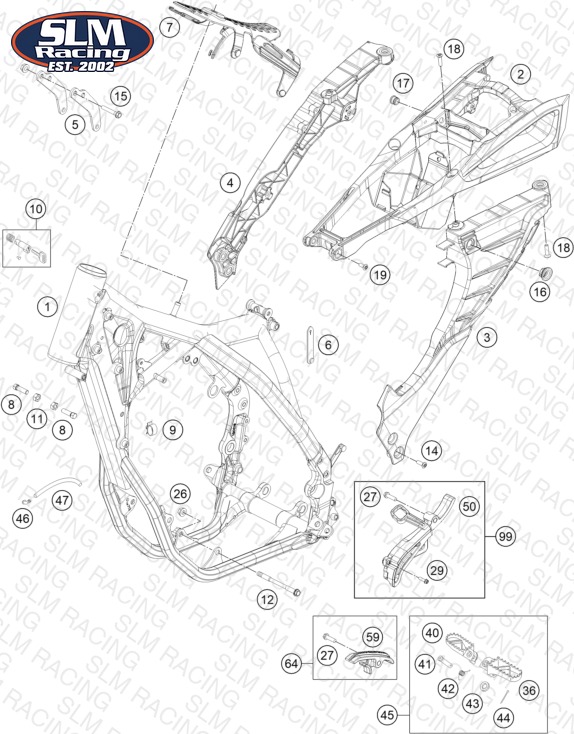

FRAME
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 8130350120028 FRAME 250/350 FE EU 2014 | FRAME 250/350 FE EU 2014 | 1 | — | Check availability | View Details |
| 2 | 8130300211030 SUB FRAME UPPER PART CPL. 14 | SUB FRAME UPPER PART CPL. 14 | 1 | — | Check availability | |
| 3 | 8130300222030 SUB FRAME L/S cpl. | SUB FRAME L/S cpl. | 1 | — | Check availability | |
| 4 | 8130300213030 SUB FRAME R/S CPL. 2014 | SUB FRAME R/S CPL. 2014 | 1 | — | Check availability | |
| 5 | 77703013000 REINFORCING | REINFORCING | 2 | — | Check availability | |
| 6 | 60011093075 RUBBER CABLE TIE 75MM 03 | RUBBER CABLE TIE 75MM 03 | 1 | — | Check availability | |
| 7 | 77207012000 TANK REST RUBBER | TANK REST RUBBER | 1 | — | Check availability | |
| 8 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | — | Check availability | |
| 9 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | — | Check availability | |
| 10 | 78003035000 STEERING HEAD LOCK 08 | STEERING HEAD LOCK 08 | 1 | — | Check availability | View Details |
| 11 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | — | Check availability | |
| 12 | 77203014000 engine brac.scr. M10x115 | engine brac.scr. M10x115 | 2 | — | Check availability | |
| 14 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 4 | — | Check availability | |
| 15 | 56530079000S HH COLLAR SCREW M8X44 WS13 | HH COLLAR SCREW M8X44 WS13 | 2 | — | Check availability | |
| 16 | 47106003160 quick release rubber grommet | quick release rubber grommet | 3 | — | Check availability | |
| 17 | 81303002011 SPACER BUSHING 12X9X6,2 | SPACER BUSHING 12X9X6,2 | 2 | — | Check availability | |
| 18 | 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 | COUNTER-SUNK SCREW ISA45 M8X30 | 4 | — | Check availability | |
| 19 | 0035080306S AH collar screw M8x30 ISA45 | AH collar screw M8x30 ISA45 | 2 | — | Check availability | |
| 25 | 06923080003 Hex. nut DIN EN 1661 M8 WS13 | Hex. nut DIN EN 1661 M8 WS13 | 3 | — | Check availability | |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | — | Check availability | |
| 27 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | — | Check availability | |
| 29 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 1 | — | Check availability | |
| 36 | 78003040050 FOOTREST L/S 08 | FOOTREST L/S 08 | 1 | — | Check availability | |
| 40 | 78003041050 FOOTREST R/S 08 | FOOTREST R/S 08 | 1 | — | Check availability | |
| 41 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | — | Check availability | |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | — | Check availability | |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 45 | 78003040033 FOOTREST L/S + R/S CPL. 09 | FOOTREST L/S + R/S CPL. 09 | 1 | — | Check availability | |
| 46 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 2 | — | Check availability | |
| 47 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | 0 | — | Check availability | |
| 50 | 77203096000 SPROCKET COVER 350 SX-F | SPROCKET COVER 350 SX-F | 1 | — | Check availability | |
| 59 | 77203053000 CHAIN SLIDER LOWER PART CPL. | CHAIN SLIDER LOWER PART CPL. | 1 | — | Check availability | |
| 64 | 77203053010 CHAIN SLIDING KIT BELOW CPL.11 | CHAIN SLIDING KIT BELOW CPL.11 | 1 | — | Check availability | |
| 99 | 77203096010 SPROCKET COVER KIT | SPROCKET COVER KIT | 0 | — | Check availability |
