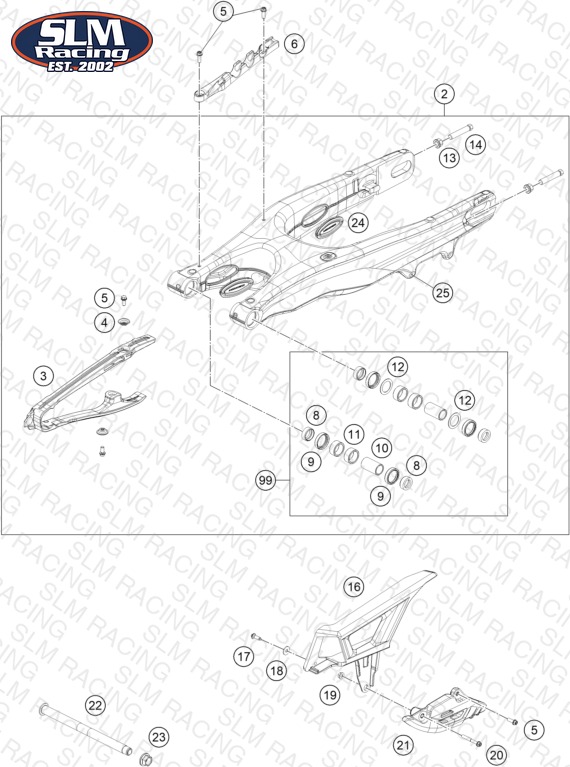

SWING ARM
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | A46004230144 Swingarm cpl | Swingarm cpl | 1 | — | Check availability | |
| 3 | A46004066100 Chain slider | Chain slider | 1 | — | Check availability | |
| 4 | 77304066150 Chain slider bushing | Chain slider bushing | 2 | — | Check availability | |
| 5 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 5 | — | Check availability | |
| 25 | 54603055051 PRESS IN NUT M6 STEEL ZINC | PRESS IN NUT M6 STEEL ZINC | 1 | — | Check availability | |
| 24 | A46004041000 Locking cap swingarm | Locking cap swingarm | 4 | — | Check availability | |
| 13 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | — | Check availability | |
| 14 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | — | Check availability | |
| 99 | 79004030110 Repair kit swingarm bearing | Repair kit swingarm bearing | — | — | Check availability | View Details |
| 11 | 0618222812 Needle bushing HK2212V 22/28/1 | Needle bushing HK2212V 22/28/1 | 4 | — | Check availability | |
| 10 | 59404032000 Bearing sleeve 17x22x38.7 03 | Bearing sleeve 17x22x38.7 03 | 2 | — | Check availability | |
| 12 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | — | Check availability | View Details |
| 9 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | — | Check availability | |
| 8 | 77704034000 Support f. shaft seal ring 16 | Support f. shaft seal ring 16 | 4 | — | Check availability | |
| 16 | A49004060000 Chainguard | Chainguard | 1 | — | Check availability | |
| 17 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 1 | — | Check availability | |
| 18 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 1 | — | Check availability | |
| 19 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 1 | — | Check availability | |
| 20 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 1 | — | Check availability | |
| 21 | A49004070100C1 Chain guide EXC | Chain guide EXC | 1 | — | Check availability | |
| 22 | A46004037000 Swingarm pivot | Swingarm pivot | 1 | — | Check availability | |
| 23 | 54804038000 Nut with flange M16X1,5 WS=19 | Nut with flange M16X1,5 WS=19 | 1 | — | Check availability | |
| 6 | A46004042000 Brake line guide | Brake line guide | 1 | — | Check availability |
