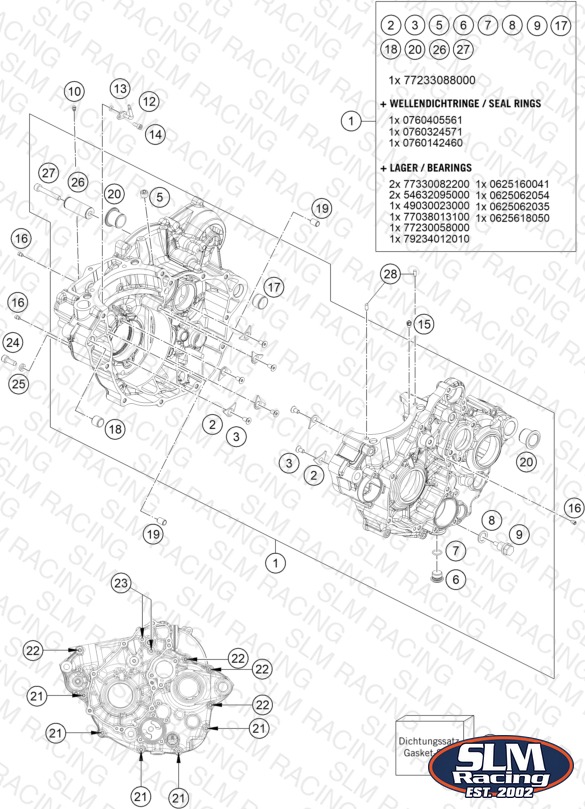

ENGINE CASE
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79230100033 ENGINE CASE CPL. | ENGINE CASE CPL. | 1 | $1614.13 | Available | 1 |
| 2 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 7 | $1.99 | Available | 7 |
| 3 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 7 | $2.99 | Available | 7 |
| 5 | 0906100100 pipe plug DIN 906 M10x1 | pipe plug DIN 906 M10x1 | 1 | $4.99 | Available | 1 |
| 6 | 78036081000 HOLDING BOLT M14X1,5 | HOLDING BOLT M14X1,5 | 1 | $3.99 | Available | 1 |
| 7 | 0770110015 O-ring 11x1.5 VITON | O-ring 11x1.5 VITON | 1 | $6.15 | Available | 1 |
| 8 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 9 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 10 | 80030058060 OIL JET ''60'' M4 | OIL JET ''60'' M4 | 1 | $13.96 | Available | 1 |
| 12 | 77830064070 OIL JET CURVED '' 70 '' | OIL JET CURVED '' 70 '' | 1 | $12.86 | Available | 1 |
| 13 | 0770035020 O-RING 3,5X2,00 NBR | O-RING 3,5X2,00 NBR | 1 | $1.99 | Available | 1 |
| 14 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 1 | $2.99 | Available | 1 |
| 15 | 60030063070 oil jet 70 M5 | oil jet 70 M5 | 1 | $10.11 | Available | 1 |
| 16 | 59030058000 JET 100 BING(44-031/180) M4 | JET 100 BING(44-031/180) M4 | 3 | $4.99 | Available | 3 |
| 17 | 59030024000 DOWEL 17 X 19 X 12 | DOWEL 17 X 19 X 12 | 1 | $6.15 | Available | 1 |
| 18 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | $8.13 | Available | 1 |
| 19 | 59030023000 dowel sleeve 6x8x11.5 | dowel sleeve 6x8x11.5 | 2 | $1.99 | Available | 2 |
| 20 | 79230010000 Housing bush | Housing bush | 2 | $13.96 | Available | 2 |
| 21 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 5 | $3.99 | Available | 5 |
| 22 | 0025060656 HH COLLAR SCREW M6X65 TX30 | HH COLLAR SCREW M6X65 TX30 | 4 | $2.99 | Available | 4 |
| 23 | 0025060706 HH COLLAR SCREW M6X70 TX30 | HH COLLAR SCREW M6X70 TX30 | 2 | $3.99 | Available | 2 |
| 24 | 58030080000 LOCATING SCREW M8 L=23 | LOCATING SCREW M8 L=23 | 1 | $14.84 | Available | 1 |
| 25 | 58030081000 CU-SEAL RING 8 X 14 X 3 | CU-SEAL RING 8 X 14 X 3 | 1 | $2.99 | Available | 1 |
| 26 | 59033018000 BUSHING PIN 2000 | BUSHING PIN 2000 | 1 | $14.84 | Available | 1 |
| 27 | 0912060406 AH SCREW DIN0912 M 6X40 | AH SCREW DIN0912 M 6X40 | 1 | $1.99 | Available | 1 |
| 99 | 79030099000 ENGINE GASKET KIT 350 EXC-F 17 | ENGINE GASKET KIT 350 EXC-F 17 | 1 | $358.81 | Backorder — Restocking | 1 |
| 28 | 0402050080 CYLINDER ROLLER ZRO 5X8 | CYLINDER ROLLER ZRO 5X8 | 2 | $2.99 | Available | 2 |
