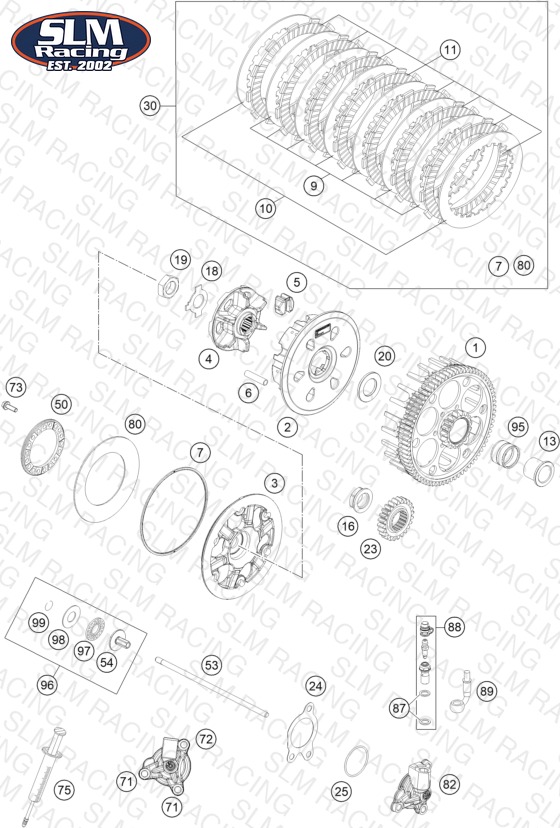

CLUTCH
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79232101073 OUTER CLUTCH HUB EXC | OUTER CLUTCH HUB EXC | 1 | — | Check availability | View Details |
| 2 | 78132002300 CLUTCH HUB | CLUTCH HUB | 1 | — | Check availability | View Details |
| 3 | 79432003000 CLUTCH PRESSURE CAP | CLUTCH PRESSURE CAP | 1 | — | Check availability | View Details |
| 4 | 78132002111 HUB | HUB | 1 | — | Check availability | View Details |
| 5 | 78132025100 DAMPING RUBBER | DAMPING RUBBER | 6 | — | Check availability | |
| 6 | 77232004000 DRIVING SLEEVE D=7,95 L=38 | DRIVING SLEEVE D=7,95 L=38 | 6 | — | Check availability | View Details |
| 7 | 78132013000 WASHER 112X118X1.5 | WASHER 112X118X1.5 | 1 | — | Check availability | |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | — | Check availability | |
| 10 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 2 | — | Check availability | |
| 11 | 77532011000 LINING DISC | LINING DISC | 8 | — | Check availability | |
| 13 | 77232015000 INNER RING | INNER RING | 1 | — | Check availability | View Details |
| 16 | 77230029000 NUT PRIMARY WHEEL | NUT PRIMARY WHEEL | 1 | — | Check availability | View Details |
| 18 | 78132018000 TAB WASHER | TAB WASHER | 1 | — | Check availability | View Details |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | — | Check availability | |
| 20 | 77232009000 WASHER 21,8 X 37 X 5,1 | WASHER 21,8 X 37 X 5,1 | 1 | — | Check availability | |
| 23 | 79232023024 PRIMARY GEAR 24T. | PRIMARY GEAR 24T. | 1 | — | Check availability | View Details |
| 24 | 79232065000 GASKET FOR OUTPUT CYLINDER | GASKET FOR OUTPUT CYLINDER | 1 | — | Check availability | View Details |
| 25 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | — | Check availability | |
| 30 | 78132010110 CLUTCH KIT 350 EXC-F 12-15 | CLUTCH KIT 350 EXC-F 12-15 | 1 | — | Check availability | |
| 50 | 78132006100 SPRING RING | SPRING RING | 1 | — | Check availability | View Details |
| 53 | 79232054000 PUSH ROD | PUSH ROD | 1 | — | Check availability | |
| 54 | 78032057000 PRESSURE PIECE | PRESSURE PIECE | 1 | — | Check availability | View Details |
| 71 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | — | Check availability | |
| 72 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 1 | — | Check availability | |
| 73 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 6 | — | Check availability | |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | — | Check availability | |
| 80 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I | BELLEVILLE SPRING 71X115X1,5 I | 1 | — | Check availability | |
| 82 | 25032061044 OUTPUT CYL. DOT CPL. 27MM M8 | OUTPUT CYL. DOT CPL. 27MM M8 | 1 | — | Check availability | |
| 87 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 2 | — | Check availability | |
| 88 | 25032062000 HOLLOW SCREW CPL. M8 | HOLLOW SCREW CPL. M8 | 1 | — | Check availability | |
| 89 | 25032163000 Clutchpipe L=995mm | Clutchpipe L=995mm | 1 | — | Check availability | |
| 95 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | — | Check availability | |
| 96 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | — | Check availability | |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | — | Check availability | |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | — | Check availability | |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | — | Check availability |
