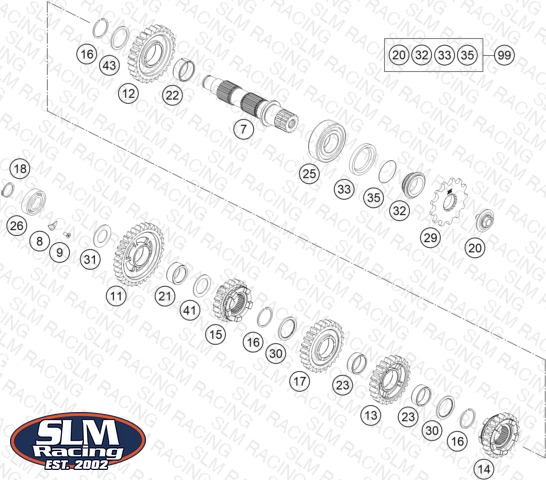

TRANSMISSION II - COUNTERSHAFT
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7 | 77233110000 COUNTERSHAFT | COUNTERSHAFT | 1 | $158.17 | Available | 1 |
| 8 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | $1.99 | Available | 1 |
| 9 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 1 | $2.99 | Available | 1 |
| 11 | 54833211000 IDLER GEAR 1. G, Z=32 | IDLER GEAR 1. G, Z=32 | 1 | $205.58 | Available | 1 |
| 12 | 54833212000 IDLER GEAR 2. G., Z=26 | IDLER GEAR 2. G., Z=26 | 1 | $108.34 | Available | 1 |
| 13 | 54833214000 IDLER GEAR 4.G., Z=23 | IDLER GEAR 4.G., Z=23 | 1 | $137.38 | Available | 1 |
| 14 | 54833215000 SLIDING GEAR 5.G., Z=22 | SLIDING GEAR 5.G., Z=22 | 1 | $110.54 | Out of Stock | Notify Me |
| 15 | 54833216000 SLIDING GEAR 6.G., Z=20 | SLIDING GEAR 6.G., Z=20 | 1 | $145.63 | Available | 1 |
| 16 | 0417024000 CIRCLIP WS24 | CIRCLIP WS24 | 3 | $2.99 | Available | 3 |
| 17 | 54833213000 IDLER GEAR 3.G., Z= 25 | IDLER GEAR 3.G., Z= 25 | 1 | $144.97 | Available | 1 |
| 20 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | $9.23 | Available | 1 |
| 21 | 0405202612 NEEDLE BEARING K 20X26X12 | NEEDLE BEARING K 20X26X12 | 1 | $12.86 | Available | 1 |
| 22 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. | NEDDLE BEAR. K24X28X11,9 DIV. | 1 | $8.57 | Available | 1 |
| 23 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED | NEEDLE BEAR.K 22X26X10 DIVIDED | 2 | $13.74 | Available | 2 |
| 25 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | $87.55 | Backorder — Restocking | 1 |
| 26 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | $17.04 | Available | 1 |
| 29 | 79233029013 Sprocket 13-t | Sprocket 13-t | — | $36.40 | Available | 1 |
| 29 | 79233129014 ENGINE SPROCKET 14Z | ENGINE SPROCKET 14Z | 1 | $41.57 | Available | 1 |
| 30 | 54833043000 STOP DISC 25X0,8X30X30X7H | STOP DISC 25X0,8X30X30X7H | 2 | $6.15 | Available | 2 |
| 31 | 77233020000 STOP DISK 17,2X30X1,3 | STOP DISK 17,2X30X1,3 | 1 | $4.99 | Available | 1 |
| 32 | 78133014000 SPACER SLEEVE COUNTER | SPACER SLEEVE COUNTER | 1 | $33.43 | Available | 1 |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | $6.15 | Available | 1 |
| 35 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | $3.99 | Available | 1 |
| 41 | 54833080000 STOP DISC 20,2X30X1 | STOP DISC 20,2X30X1 | 1 | $3.99 | Available | 1 |
| 43 | 54833044000 STOP DISC 25X31X1,5 | STOP DISC 25X31X1,5 | 1 | $6.15 | Available | 1 |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | — | $61.04 | Available | 1 |
| 18 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | $1.99 | Available | 1 |
