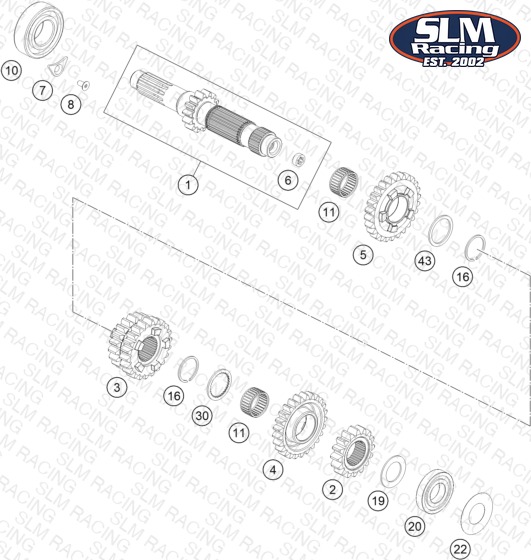

TRANSMISSION I - MAIN SHAFT
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77233101000 MAIN SHAFT CPL. 14 T. | MAIN SHAFT CPL. 14 T. | 1 | $135.62 | Available | 1 |
| 2 | 54833202000 SOLID GEAR | SOLID GEAR | 1 | $52.57 | Available | 1 |
| 3 | 54833203000 SLIDING GEAR 3./4.GANG,Z=20/22 | SLIDING GEAR 3./4.GANG,Z=20/22 | 1 | $185.56 | Available | 1 |
| 4 | 54833205000 IDLER GEAR 5.G, Z =25 | IDLER GEAR 5.G, Z =25 | 1 | $102.62 | Available | 1 |
| 5 | 54833206000 IDLER GEAR 6. G, Z=26 | IDLER GEAR 6. G, Z=26 | 1 | $111.86 | Available | 1 |
| 6 | 78033001110 BUSHING | BUSHING | 1 | $13.41 | Available | 1 |
| 7 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | $1.99 | Available | 1 |
| 8 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 1 | $2.99 | Available | 1 |
| 10 | 0625062054 BALL BEARING 6205 C3 NTN | BALL BEARING 6205 C3 NTN | 1 | $24.30 | Available | 1 |
| 11 | 0405222613 NEEDLE BEAR. K 22X26X13 TN | NEEDLE BEAR. K 22X26X13 TN | 2 | $10.77 | Available | 2 |
| 16 | 0417024000 CIRCLIP WS24 | CIRCLIP WS24 | 2 | $2.99 | Available | 2 |
| 19 | 77233015000 DISK 20,2X32X1,3 | DISK 20,2X32X1,3 | 1 | $6.15 | Available | 1 |
| 20 | 0625160040 GROOVED BALL BEAR. TM 16004 C3 | GROOVED BALL BEAR. TM 16004 C3 | 1 | $27.49 | Available | 1 |
| 22 | 77233088000 SPACER SHIM 21X42X0.2 | SPACER SHIM 21X42X0.2 | 1 | $6.81 | Available | 1 |
| 30 | 54833043000 STOP DISC 25X0,8X30X30X7H | STOP DISC 25X0,8X30X30X7H | 1 | $6.15 | Available | 1 |
| 43 | 54833044000 STOP DISC 25X31X1,5 | STOP DISC 25X31X1,5 | 1 | $6.15 | Available | 1 |
