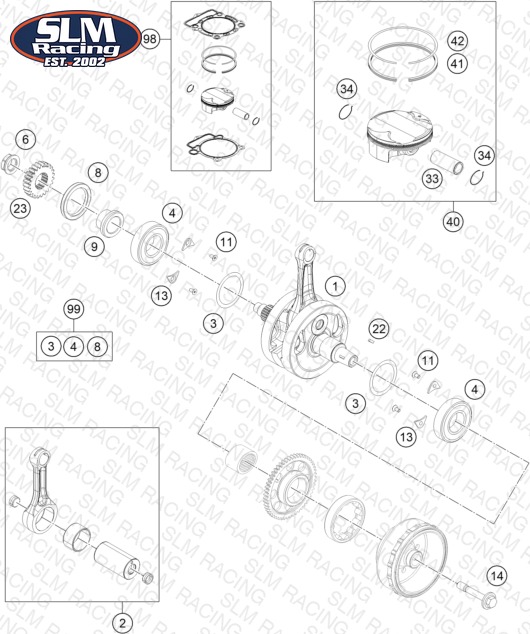

CRANKSHAFT, PISTON
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77530018200 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | $1190.19 | Out of Stock | Notify Me |
| 2 | 77830015044 CONNECTING ROD REPAIR SET | CONNECTING ROD REPAIR SET | 1 | $506.21 | Available | 1 |
| 3 | 0988324510 THRUST WASHER 988ST 32X0,1 | THRUST WASHER 988ST 32X0,1 | — | $1.99 | Available | 1 |
| 3 | 0988324515 THRUST WASHER 988ST 32X0,15 | THRUST WASHER 988ST 32X0,15 | — | $1.99 | Available | 1 |
| 3 | 0988324530 THRUST WASHER 988ST 32X0,30 | THRUST WASHER 988ST 32X0,30 | — | $1.99 | Available | 1 |
| 4 | 77330082200 BEARING NJ 206 ECP/HN3C4HVA624 | BEARING NJ 206 ECP/HN3C4HVA624 | 2 | $110.43 | Backorder — Restocking | 2 |
| 6 | 77230029000 NUT PRIMARY WHEEL | NUT PRIMARY WHEEL | 1 | $5.05 | Available | 1 |
| 8 | 0760405560 SHAFT SEAL RING A40x55x6 VITON | SHAFT SEAL RING A40x55x6 VITON | 1 | $13.96 | Available | 1 |
| 9 | 77232022000 SPACER BUSHING PRIMARY GEAR | SPACER BUSHING PRIMARY GEAR | 1 | $12.97 | Available | 1 |
| 11 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 4 | $2.99 | Available | 4 |
| 13 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 4 | $1.99 | Available | 4 |
| 14 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 22 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 23 | 77232023024 PRIMARY GEAR 24T. | PRIMARY GEAR 24T. | 1 | $111.20 | Available | 1 |
| 33 | 77230133000 PISTON PIN 350 | PISTON PIN 350 | 1 | $60.27 | Available | 1 |
| 34 | 77230174000 CIRCLIP | CIRCLIP | 2 | $3.99 | Available | 2 |
| 40 | 77530107100 I PISTON I CPL. 350 | PISTON I CPL. 350 | — | $538.00 | Available | 1 |
| 40 | 77530107100 II PISTON II CPL. 350 | PISTON II CPL. 350 | — | $511.16 | Available | 1 |
| 41 | 77230032100 SCRAPER RING 350 | SCRAPER RING 350 | 1 | $181.99 | Available | 1 |
| 42 | 77230030000 COMPRESSIONRING 350 | COMPRESSIONRING 350 | 1 | $50.26 | Available | 1 |
| 98 | 77530007010 I PISTON KIT GR. I 350 EXC-F 14 | PISTON KIT GR. I 350 EXC-F 14 | — | $540.64 | Available | 1 |
| 98 | 77530007010 II PISTON KIT GR. II 350 EXC-F 14 | PISTON KIT GR. II 350 EXC-F 14 | — | $540.64 | Available | 1 |
| 99 | 00050002317 CRANKSHAFT REP.KIT 250/350EXCF | CRANKSHAFT REP.KIT 250/350EXCF | — | — | Obsolete | View Details |
