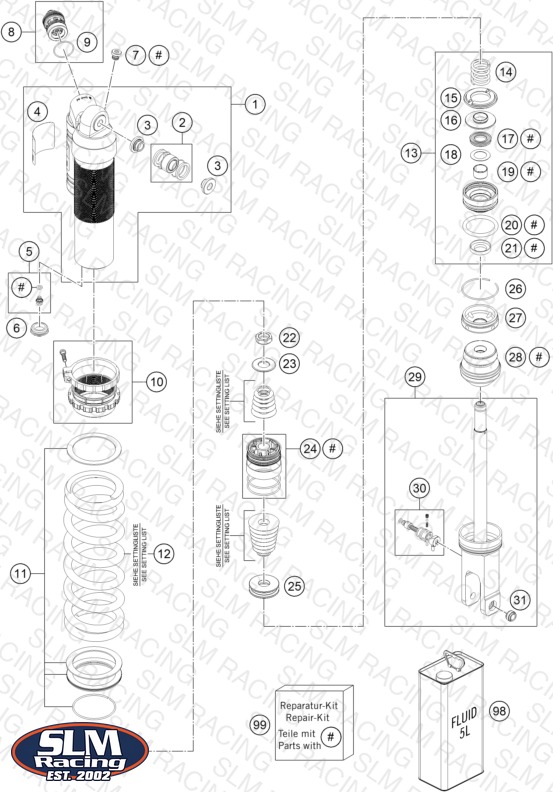

SHOCK ABSORBER DISASSEMBLED
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50180944S1 MONOSHOCK UPPER PART CPL. | MONOSHOCK UPPER PART CPL. | 1 | — | Check availability | |
| 2 | R12012 Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 1 | — | Check availability | View Details |
| 3 | 46180010 Distance bush 10x15/18/24,5x10 | Distance bush 10x15/18/24,5x10 | 2 | — | Check availability | |
| 4 | 52000087 sticker WP warning 47x63 | sticker WP warning 47x63 | 1 | — | Check availability | View Details |
| 5 | 36120151S PLUG SCREW M5X6 CPL. | PLUG SCREW M5X6 CPL. | 1 | — | Check availability | View Details |
| 6 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | — | Check availability | |
| 7 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | — | Check availability | |
| 8 | 50180213S10 DCC-COMPR.DAMP.CONTROL CPL. 07 | DCC-COMPR.DAMP.CONTROL CPL. 07 | 1 | — | Check availability | |
| 9 | 50180218 O-ring 25x1,5 Viton70 | O-ring 25x1,5 Viton70 | 1 | — | Check availability | |
| 10 | 50180938SA Spring retainer M56x2x63,8x33 | Spring retainer M56x2x63,8x33 | 1 | — | Check availability | |
| 11 | 50180824S1 SPRING PLATE KIT | SPRING PLATE KIT | 1 | — | Check availability | |
| 12 | 91210101S SPRING 260 48 N/MM | SPRING 260 48 N/MM | — | — | Check availability | |
| 12 | 91210102S SPRING 260 51 N/MM | SPRING 260 51 N/MM | — | — | Check availability | |
| 12 | 91210103S SPRING 260 54 N/MM | SPRING 260 54 N/MM | — | — | Check availability | |
| 12 | 91210104S SPRING 260 57 N/MM | SPRING 260 57 N/MM | — | — | Check availability | |
| 12 | 91210105S SPRING 260 60 N/MM | SPRING 260 60 N/MM | — | — | Check availability | |
| 13 | 50180603SA Sealholder 50x28 cpl. | Sealholder 50x28 cpl. | 1 | — | Check availability | View Details |
| 14 | 50180780 Spring (3,2) 30-30 | Spring (3,2) 30-30 | 1 | — | Check availability | |
| 15 | 50180798 Rubber pad rebound 28,8x48x8 | Rubber pad rebound 28,8x48x8 | 1 | — | Check availability | |
| 16 | 50180800 Spring retainer 18,6x43,7x2 re | Spring retainer 18,6x43,7x2 re | 1 | — | Check availability | |
| 17 | 50180605S Seal ring cpl. 18x30x5 | Seal ring cpl. 18x30x5 | 1 | — | Check availability | View Details |
| 18 | 50180604 Shim 29.75x19x0.4 | Shim 29.75x19x0.4 | 1 | — | Check availability | |
| 19 | 46180119 Guide bushing 18x20x12 | Guide bushing 18x20x12 | 1 | — | Check availability | |
| 20 | 50180103 O-ring 41x5 NBR70 | O-ring 41x5 NBR70 | 1 | — | Check availability | |
| 21 | 50180606 Dirt scarper NOK 18mm black | Dirt scarper NOK 18mm black | 1 | — | Check availability | |
| 22 | 50180141 Piston rod nut 16x1 | Piston rod nut 16x1 | 1 | — | Check availability | |
| 23 | 50180836 Rebound disc 16x34x2 h0 | Rebound disc 16x34x2 h0 | 1 | — | Check availability | |
| 24 | 50180786E PISTON D50 | PISTON D50 | 1 | — | Check availability | |
| 25 | 50180801 Rebound disc 16x43x12,5 h8 | Rebound disc 16x43x12,5 h8 | 1 | — | Check availability | |
| 26 | 50180126 Round-wire snap ring 53x1,75 | Round-wire snap ring 53x1,75 | 1 | — | Check availability | |
| 27 | 50180626 Cover 50x6 h16 | Cover 50x6 h16 | 1 | — | Check availability | |
| 28 | 50181077 Rubber pad 17x57x54 | Rubber pad 17x57x54 | 1 | — | Check availability | |
| 29 | 50180773SA1 MONOSHOCK BOTTOM PART CPL. | MONOSHOCK BOTTOM PART CPL. | 1 | — | Check availability | |
| 30 | 46180522S1 TAP ADJ. REBOUND | TAP ADJ. REBOUND | 1 | — | Check availability | |
| 31 | 46811205 Bush M10x12/15/13x9,5 | Bush M10x12/15/13x9,5 | 1 | — | Check availability | |
| 99 | R12022 REPAIR KIT | REPAIR KIT | 1 | — | Check availability | |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | — | Check availability |
