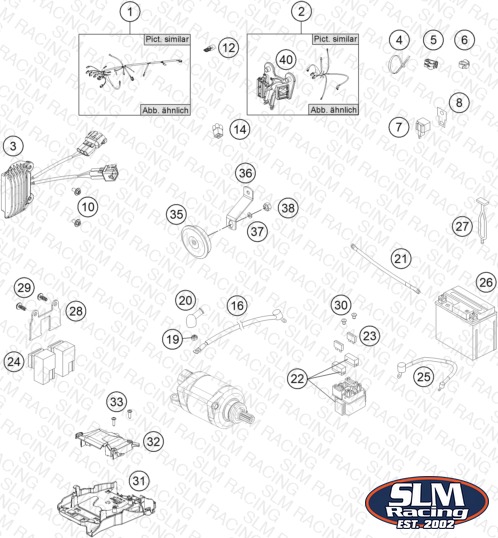

WIRING HARNESS
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78111075133 WIRING HARN.EFI VMT. EU/AUS 14 | WIRING HARN.EFI VMT. EU/AUS 14 | 1 | $572.21 | Available | 1 |
| 2 | 77711079000 WIRING HARNESS LIGHT CPL. EU | WIRING HARNESS LIGHT CPL. EU | 1 | $98.77 | Available | 1 |
| 3 | 78111034000 VOLTAGE REGULATOR | VOLTAGE REGULATOR | 1 | $250.57 | Available | 1 |
| 4 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | — | $1.99 | Available | 1 |
| 4 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | — | $1.99 | Available | 1 |
| 4 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | — | $2.99 | Available | 1 |
| 5 | 83013026000 Line guide | Line guide | 2 | $3.99 | Available | 2 |
| 6 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | $4.99 | Available | 1 |
| 7 | 76511030000 FLASHER UNIT | FLASHER UNIT | 1 | $27.27 | Available | 1 |
| 8 | 58211031100 BRACKET FOR FLASHER RELAY | BRACKET FOR FLASHER RELAY | 1 | $6.70 | Available | 1 |
| 10 | 0023060123 COLLAR SCREW M6X12 TX | COLLAR SCREW M6X12 TX | 2 | $2.99 | Available | 2 |
| 12 | 49111425200 BULB 12V 2,3W (W2X4,6D) | BULB 12V 2,3W (W2X4,6D) | 3 | $2.99 | Available | 3 |
| 14 | 81211096000 DUMMY PLUG AN 4-PIN | DUMMY PLUG AN 4-PIN | 1 | $10.22 | Available | 1 |
| 16 | 81311059000 STARTER CABLE | STARTER CABLE | 1 | $23.53 | Available | 1 |
| 19 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 20 | 77240099000 Protection cap for starter eng | Protection cap for starter eng | 1 | $7.47 | Available | 1 |
| 21 | 58411059100 STARTERCABLE 700 MM '97 | STARTERCABLE 700 MM '97 | 1 | $27.82 | Available | 1 |
| 22 | 76211058000 Starter relay | Starter relay | 1 | $93.16 | Available | 1 |
| 23 | 58011109120 Plug-in fuse, big 20A | Plug-in fuse, big 20A | 2 | $1.99 | Available | 2 |
| 24 | 61111057000 RELAY CM1A-R-12V-H80 07 | RELAY CM1A-R-12V-H80 07 | 2 | $19.79 | Available | 2 |
| 25 | 81311059050 WIRING HARNESS BATTERY | WIRING HARNESS BATTERY | 1 | $20.78 | Available | 1 |
| 26 | 58511053000 BATTERY 12V 4AH YTX5L-BS | BATTERY 12V 4AH YTX5L-BS | 1 | $131.88 | Available | 1 |
| 27 | 50303018000 RUBBER L=145MM | RUBBER L=145MM | 2 | $7.58 | Available | 2 |
| 28 | 81311037000 BRACKET POWERRELAIS | BRACKET POWERRELAIS | 1 | $4.99 | Available | 1 |
| 29 | 0081050121 EJOT PT screw K50x12 | EJOT PT screw K50x12 | 2 | $2.99 | Available | 2 |
| 30 | 0902060083 Oval head screw ISO 7380 M 6X8 | Oval head screw ISO 7380 M 6X8 | 2 | $1.99 | Available | 2 |
| 31 | 77711094000 ELECTRIC BOX | ELECTRIC BOX | 1 | $12.97 | Available | 1 |
| 32 | 77711094050 ECU SPLASH PROTECT. | ECU SPLASH PROTECT. | 1 | $12.20 | Available | 1 |
| 33 | 0081050181 SCREW FOR PLASTIC K50X18 T20 | SCREW FOR PLASTIC K50X18 T20 | 2 | $2.99 | Available | 2 |
| 35 | 50311060200 DC HORN 12V 07 | DC HORN 12V 07 | 1 | $38.16 | Available | 1 |
| 36 | 78011061000 HORN BRACKET EXC 08 | HORN BRACKET EXC 08 | 1 | $6.15 | Available | 1 |
| 37 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 1 | $1.99 | Available | 1 |
| 38 | 0934050003 HEXAGON NUT DIN0934-M 5 | HEXAGON NUT DIN0934-M 5 | 1 | $2.99 | Available | 1 |
| 40 | 77711083000 SUPPORT BRACKET | SUPPORT BRACKET | 1 | $26.50 | Available | 1 |
