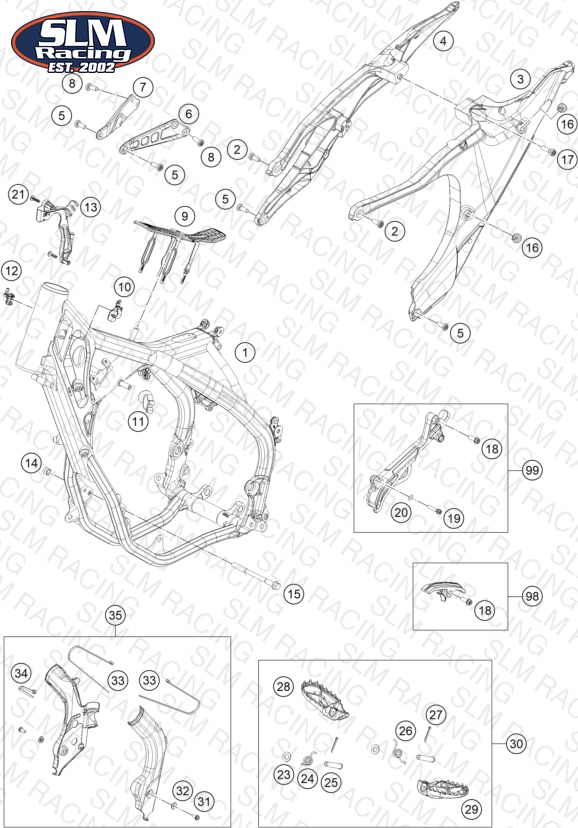

FRAME
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2460310100024 frame 246T2 | frame 246T2 | 1 | $1525.03 | Out of Stock | Notify Me |
| 2 | 0035080256S ISA collar screw M8x25 ISA45 | ISA collar screw M8x25 ISA45 | 2 | $2.99 | Available | 2 |
| 3 | 25103002210C1 Subframe, left | Subframe, left | 1 | $313.93 | Available | 1 |
| 4 | 25103002220C1 Subframe, right | Subframe, right | 1 | $335.60 | Available | 1 |
| 5 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 4 | $6.26 | Available | 4 |
| 6 | 5570301300001S Engine brace, left 250/300 TPI | Engine brace, left 250/300 TPI | 1 | $56.42 | Available | 1 |
| 7 | 5570301400001S Engine brace, right 250/300 TP | Engine brace, right 250/300 TP | 1 | $58.07 | Available | 1 |
| 8 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 | AH-COLLAR SCREW M8X15 TORX45 | 4 | $2.99 | Available | 4 |
| 9 | 79607012000 TANK REST RUBBER | TANK REST RUBBER | 1 | $11.87 | Available | 1 |
| 10 | 79111014010 Cable holder | Cable holder | 1 | $2.99 | Available | 1 |
| 11 | 79711013010 Cable bracket d8 | Cable bracket d8 | 1 | $1.99 | Available | 1 |
| 12 | 79111013010 Cover control head sheet | Cover control head sheet | 1 | $2.99 | Available | 1 |
| 13 | 79711013000 Cable holder throttle cable gu | Cable holder throttle cable gu | 1 | $11.87 | Available | 1 |
| 14 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 15 | 54603013000 engine brac.scr. M10x105 WS13 | engine brac.scr. M10x105 WS13 | 2 | $14.29 | Available | 2 |
| 16 | 47106003160 quick release rubber grommet | quick release rubber grommet | 2 | $4.99 | Available | 2 |
| 17 | 0035080306S AH collar screw M8x30 ISA45 | AH collar screw M8x30 ISA45 | 1 | $3.99 | Available | 1 |
| 18 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | $3.62 | Available | 2 |
| 19 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 20 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 21 | 0081050181 SCREW FOR PLASTIC K50X18 T20 | SCREW FOR PLASTIC K50X18 T20 | 2 | $2.99 | Available | 2 |
| 23 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 24 | 79003044000 FOOTREST SPRING R/S 2016 | FOOTREST SPRING R/S 2016 | 1 | $2.99 | Available | 1 |
| 25 | 79003046000 Footpeg bolt | Footpeg bolt | 2 | $14.62 | Available | 2 |
| 26 | 79003045000 FOOTREST SPRING L/S 2016 | FOOTREST SPRING L/S 2016 | 1 | $2.99 | Available | 1 |
| 27 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 28 | 79603041100 Foot grid right EXC 2017 | Foot grid right EXC 2017 | 1 | $52.68 | Available | 1 |
| 29 | 79603040100 Foot grid left EXC 2017 | Foot grid left EXC 2017 | 1 | $52.68 | Available | 1 |
| 30 | 79603040133 Footrest-Set | Footrest-Set | 1 | $132.98 | Available | 1 |
| 31 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 | HH COLLAR SCREW M 5X12 WS=6 | 2 | $2.99 | Available | 2 |
| 32 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 33 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 2 | $2.99 | Available | 2 |
| 34 | 76311093200 CABLE TIE 200MM | CABLE TIE 200MM | 1 | $1.99 | Available | 1 |
| 35 | 25103094100BJ Frame protection set | Frame protection set | 1 | $24.99 | Available | 1 |
| 98 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 | CHAIN SLIDING KIT BELOW CPL.16 | 1 | $21.00 | Available | 1 |
| 99 | 55403096010 SPROCKET COVER KIT | SPROCKET COVER KIT | 1 | $28.92 | Available | 1 |
