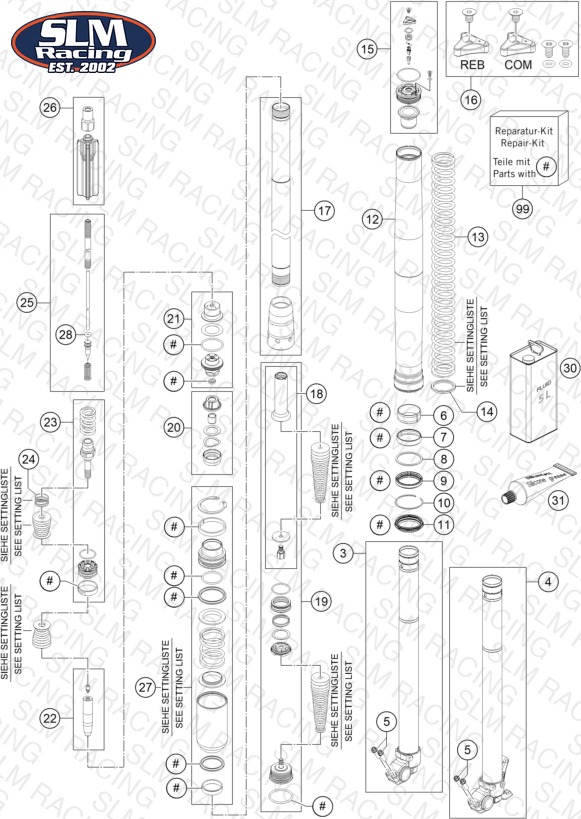

FRONT FORK DISASSEMBLED

← →

Parts (40)

#	Part Number	Description	Qty	Price	Status
5	0025080256 HH collar screw M8x25	HH collar screw M8x25	4	$2.41	Available	4
3	48601029S1 AXLE CLAMP R/S WITH INNER TUBE	AXLE CLAMP R/S WITH INNER TUBE	1	$400.04	Out of Stock	Notify Me
16	R14033 SCREW CAP SMALL PART KIT	SCREW CAP SMALL PART KIT	1	$24.59	Obsolete	View Details
17	48601031S CARTRIDGE KIT	CARTRIDGE KIT	2	$128.69	Available	2
18	R14034 HYDROSTOP KIT	HYDROSTOP KIT	2	$49.44	Out of Stock	Notify Me
19	48601279S BASE VALVE KIT	BASE VALVE KIT	2	$66.89	Out of Stock	Notify Me
21	R14035 SCREW SLEEVE KIT	SCREW SLEEVE KIT	2	$43.29	Obsolete	View Details
22	48601123S NEEDLE KIT	NEEDLE KIT	1	$41.59	Out of Stock	Notify Me
13	91410092S SPRING D43,8 L465 4,8N/MM SET	SPRING D43,8 L465 4,8N/MM SET	—	$148.56	Obsolete	View Details
23	R14036 TAP KIT	TAP KIT	2	$77.32	Obsolete	View Details
25	48601054S PISTON ROD CPL.	PISTON ROD CPL.	2	$102.99	Out of Stock	Notify Me
26	48601035S SPRING GUIDE CPL.	SPRING GUIDE CPL.	2	$16.93	Available	2
4	48601028S1 AXLE CLAMP L/S WITH INNER TUBE	AXLE CLAMP L/S WITH INNER TUBE	1	$462.10	Backorder — Mid December 2026	1
6	48601008 Guide bushing 47x49x20	Guide bushing 47x49x20	2	$14.18	Available	2
7	48601009 Guide bushing 48x52x12	Guide bushing 48x52x12	2	$14.18	Available	2
9	48601179 Shaft seal SKF 48x57.9x11.4 re	Shaft seal SKF 48x57.9x11.4 re	2	$18.46	Obsolete	View Details
10	48600070 Snap ring SB58x1,5 acc drawing	Snap ring SB58x1,5 acc drawing	2	$2.41	Available	2
11	48601178 Dirt scarper SKF 48mm red	Dirt scarper SKF 48mm red	2	$22.39	Obsolete	View Details
12	48600736 Fork outer tube 49,13x577 dt54	Fork outer tube 49,13x577 dt54	2	$543.94	Available	2
13	91410082S SPRING D43,8 L465 3,8N/MM SET	SPRING D43,8 L465 3,8N/MM SET	—	$148.56	Out of Stock	Notify Me
14	48600456 Washer 35x43x2,5 plastic	Washer 35x43x2,5 plastic	—	$2.41	Available	1
14	48600458 Washer 35x43x1,5 plastic	Washer 35x43x1,5 plastic	—	$2.41	Available	1
15	48601116E Screw cap M51x1,5 compression	Screw cap M51x1,5 compression	1	$75.69	Obsolete	View Details
15	48601050E Screw cap M51x1,5 Zugsture cpl	Screw cap M51x1,5 Zugsture cpl	1	$75.69	Obsolete	View Details
20	48601025S1 Check valve d21mm cpl.	Check valve d21mm cpl.	2	$33.98	Available	2
24	48600382 Spring (11,4) 0,4-8 valve	Spring (11,4) 0,4-8 valve	2	$2.41	Available	2
30	48601166S1 Fork Fluid Viscosity 4.0 5L	Fork Fluid Viscosity 4.0 5L	1	$175.99	Available	1
31	T511 SILICONE GREASE F. DUST STRI	SILICONE GREASE F. DUST STRI	1	$70.14	Obsolete	View Details
99	R24001 REPAIR - KIT	REPAIR - KIT	—	$167.32	Obsolete	View Details
8	48600013 Supportwasher 50x57,6x1,5	Supportwasher 50x57,6x1,5	2	$3.62	Available	2
13	91410081S SPRING D43.8 L465 3.6N/MM SET	SPRING D43.8 L465 3.6N/MM SET	—	$155.99	Out of Stock	Notify Me
13	91410083S SPRING D43,8 L465 4,0N/MM SET	SPRING D43,8 L465 4,0N/MM SET	—	$148.56	Obsolete	View Details
13	91410084S SPRING D43,8 L465 4,2N/MM SET	SPRING D43,8 L465 4,2N/MM SET	—	$148.56	Out of Stock	Notify Me
13	91410085S SPRING D43,8 L465 4,4N/MM SET	SPRING D43,8 L465 4,4N/MM SET	—	$155.99	Out of Stock	Notify Me
13	91410086S SPRING D43,8 L465 4,6N/MM SET	SPRING D43,8 L465 4,6N/MM SET	—	$155.99	Out of Stock	Notify Me
27	48601021S Reservoir 36x74,5 cpl.	Reservoir 36x74,5 cpl.	—	$80.73	Out of Stock	Notify Me
27	48601021S2 PRESSURE TANK L74,5 D36 S2 CPL	PRESSURE TANK L74,5 D36 S2 CPL	—	$88.40	Out of Stock	Notify Me
27	48601021S3 PRESSURE TANK L74,5 D36 S3 CPL	PRESSURE TANK L74,5 D36 S3 CPL	—	$84.19	Obsolete	View Details
27	48601021S4 PRESSURE TANK L74,5 D36 S4 CPL	PRESSURE TANK L74,5 D36 S4 CPL	—	$95.12	Out of Stock	Notify Me
28	46811265 O-ring 2,2x1,6 Viton75 green	O-ring 2,2x1,6 Viton75 green	2	$1.20	Available	2
