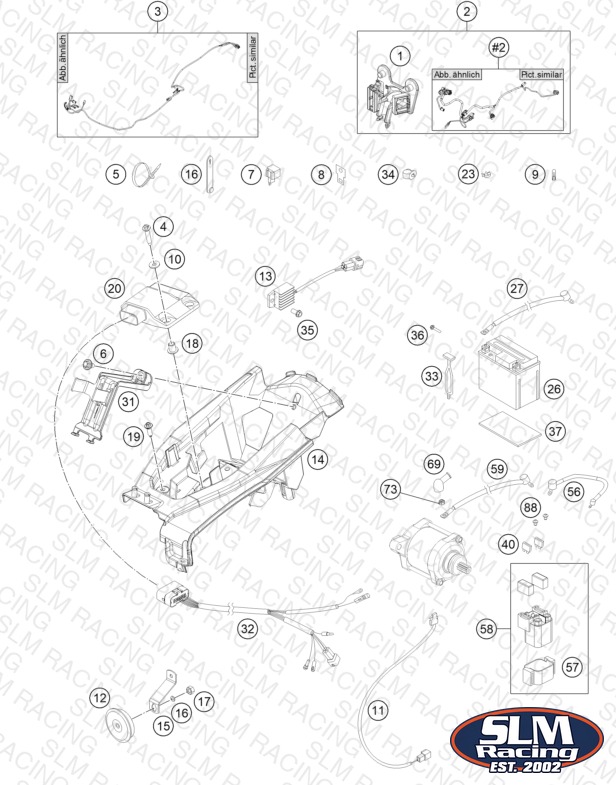

WIRING HARNESS
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77711083000 SUPPORT BRACKET | SUPPORT BRACKET | 1 | $26.50 | Available | 1 |
| 2 | 54811075700 WIRING HARNESS 2T. EXC 14 | WIRING HARNESS 2T. EXC 14 | 1 | — | Obsolete | View Details |
| 3 | 77711081100 TURN SIGNAL WIRING HARNESS | TURN SIGNAL WIRING HARNESS | 1 | $76.44 | Available | 1 |
| 4 | 0017060305 Special screw K60X30 WS=6 | Special screw K60X30 WS=6 | 1 | $2.99 | Available | 1 |
| 5 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | — | $1.99 | Available | 1 |
| 5 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | — | $1.99 | Available | 1 |
| 5 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | — | $2.99 | Available | 1 |
| 7 | 76511030000 FLASHER UNIT | FLASHER UNIT | 1 | $27.27 | Available | 1 |
| 6 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 | SPECIAL SCREW M6X12,5 WS=8 | 1 | $2.99 | Available | 1 |
| 8 | 58211031100 BRACKET FOR FLASHER RELAY | BRACKET FOR FLASHER RELAY | 1 | $6.70 | Available | 1 |
| 9 | 49111425200 BULB 12V 2,3W (W2X4,6D) | BULB 12V 2,3W (W2X4,6D) | 2 | $2.99 | Available | 2 |
| 10 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
| 11 | 77711050000 BRAKE LIGHT SWITCH FRONT 2014 | BRAKE LIGHT SWITCH FRONT 2014 | 1 | $62.25 | Available | 1 |
| 12 | 50311060200 DC HORN 12V 07 | DC HORN 12V 07 | 1 | $38.16 | Available | 1 |
| 13 | 80011034000 VOLTAGE REGULATOR 04 | VOLTAGE REGULATOR 04 | 1 | $117.14 | Available | 1 |
| 14 | 25011055100 BATTERY BOX | BATTERY BOX | 1 | $23.42 | Available | 1 |
| 15 | 78011061000 HORN BRACKET EXC 08 | HORN BRACKET EXC 08 | 1 | $6.15 | Available | 1 |
| 16 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 1 | $1.99 | Available | 1 |
| 17 | 0934050003 HEXAGON NUT DIN0934-M 5 | HEXAGON NUT DIN0934-M 5 | 1 | $2.99 | Available | 1 |
| 18 | 60308006000 COLLAR BUSHING 6,2X9,2X15X12,5 | COLLAR BUSHING 6,2X9,2X15X12,5 | 2 | $3.99 | Available | 2 |
| 19 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 | SCREW F. PLASTIC K60X20AL SW6 | 1 | $3.99 | Available | 1 |
| 20 | 55439131100 Dash board box 250 18 | Dash board box 250 18 | 1 | $314.70 | Available | 1 |
| 23 | 57013072000 WIRING HOLDER 12MM | WIRING HOLDER 12MM | — | $4.99 | Available | 1 |
| 23 | 57013072100 WIRING HOLDER 16MM | WIRING HOLDER 16MM | — | $1.99 | Available | 1 |
| 26 | 77311053000 BATTERY 12V 3AH YTX4L-BS | BATTERY 12V 3AH YTX4L-BS | 1 | $195.35 | Backorder — Restocking | 1 |
| 27 | 58411059100 STARTERCABLE 700 MM '97 | STARTERCABLE 700 MM '97 | 1 | $27.82 | Available | 1 |
| 31 | 79011056100 BATTERY BOX SUPPORT | BATTERY BOX SUPPORT | 1 | $3.99 | Available | 1 |
| 32 | 55439032000 HARNESS CDI BOX 2T 2017 | HARNESS CDI BOX 2T 2017 | 1 | $66.98 | Available | 1 |
| 33 | 50303018000 RUBBER L=145MM | RUBBER L=145MM | 1 | $7.58 | Available | 1 |
| 34 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | $4.99 | Available | 1 |
| 35 | 0023060123 COLLAR SCREW M6X12 TX | COLLAR SCREW M6X12 TX | 1 | $2.99 | Available | 1 |
| 36 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 3 | $2.99 | Available | 3 |
| 37 | 59003001099 METAMOLL 90X45X3MM 03 | METAMOLL 90X45X3MM 03 | 1 | $2.99 | Backorder — Restocking | 1 |
| 40 | 58011109110 Plug-in fuse, big 10A | Plug-in fuse, big 10A | 2 | $2.99 | Available | 2 |
| 56 | 58711086000 WIRING HARNESS BATTERY DUKE'99 | WIRING HARNESS BATTERY DUKE'99 | 1 | $18.14 | Available | 1 |
| 58 | 58211058000 Starter reley 12V 99 | Starter reley 12V 99 | 1 | $85.46 | Available | 1 |
| 59 | 55111059000 STARTERCABLE 1100MM 07 | STARTERCABLE 1100MM 07 | 1 | $30.68 | Available | 1 |
| 69 | 77240099000 Protection cap for starter eng | Protection cap for starter eng | 1 | $7.47 | Available | 1 |
| 73 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 88 | 0902060083 Oval head screw ISO 7380 M 6X8 | Oval head screw ISO 7380 M 6X8 | 2 | $1.99 | Available | 2 |
| 57 | 58211058050 BRACKET RUBBER F.STARTRELAY 07 | BRACKET RUBBER F.STARTRELAY 07 | 1 | $6.15 | Available | 1 |
