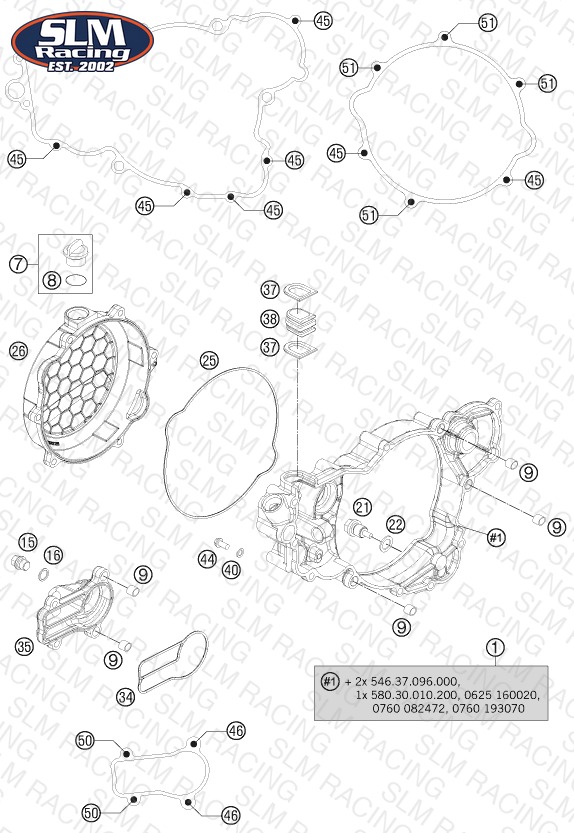

CLUTCH COVER
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54830001244 INTERM. CLUTCH COVER CPL. | INTERM. CLUTCH COVER CPL. | 1 | $253.32 | Available | 1 |
| 7 | 58030120000 OIL FILLER CAP M24x3 W. O-R | OIL FILLER CAP M24x3 W. O-R | 1 | $9.45 | Available | 1 |
| 8 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 9 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 5 | $2.99 | Available | 5 |
| 15 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 1 | $4.99 | Available | 1 |
| 16 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 1 | $2.99 | Available | 1 |
| 21 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 22 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 25 | 55130027000 CLUTCH COVER GASKET | CLUTCH COVER GASKET | 1 | $13.74 | Available | 1 |
| 26 | 55130626000KA CLUTCH COVER OUTSIDE ''HQV'' | CLUTCH COVER OUTSIDE ''HQV'' | 1 | $94.59 | Available | 1 |
| 34 | 54835003000 GASKET WAPU-COVER 250 2003 | GASKET WAPU-COVER 250 2003 | 1 | $7.03 | Available | 1 |
| 35 | 54835001100 WATERPUMP COVER 250/300 | WATERPUMP COVER 250/300 | 1 | — | Obsolete | View Details |
| 37 | 54637107000 SEALING ELEMENT BOTTOM | SEALING ELEMENT BOTTOM | 2 | $8.68 | Available | 2 |
| 38 | 54837091100 SEALING CARRIER 07 | SEALING CARRIER 07 | 1 | $3.99 | Available | 1 |
| 40 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 44 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | $3.99 | Available | 1 |
| 45 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 7 | $3.99 | Available | 7 |
| 46 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 2 | $3.99 | Available | 2 |
| 50 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 2 | $3.99 | Available | 2 |
| 51 | 0025060606 HH collar screw M6x60 TX30 | HH collar screw M6x60 TX30 | 4 | $3.99 | Available | 4 |
