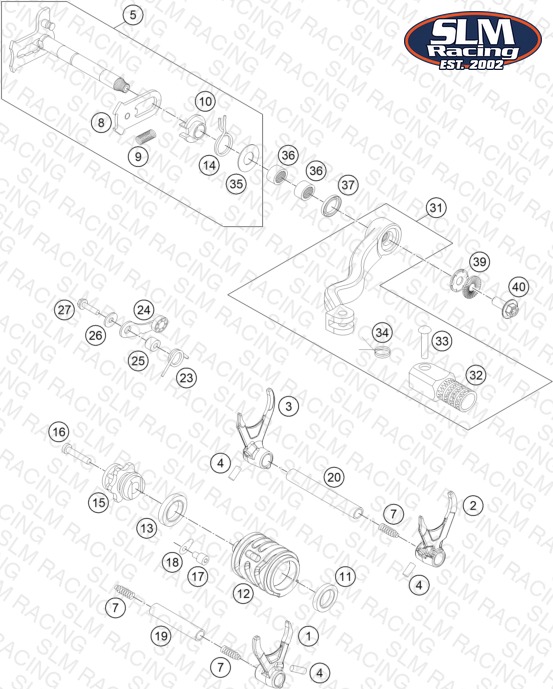

SHIFTING MECHANISM
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54834201000 SHIFT FORK 5./6.G. | SHIFT FORK 5./6.G. | 1 | $72.26 | Available | 1 |
| 2 | 54834202000 SHIFT FORK 2./4.G. | SHIFT FORK 2./4.G. | 1 | $72.70 | Available | 1 |
| 3 | 54834203000 SHIFT FORK 1./3. G. | SHIFT FORK 1./3. G. | 1 | $72.70 | Available | 1 |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | $4.99 | Available | 3 |
| 5 | 54834005133 SHIFT SHAFT ASSY | SHIFT SHAFT ASSY | 1 | $67.31 | Available | 1 |
| 7 | 58038023200 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 3 | $4.99 | Available | 3 |
| 8 | 61234008044 SLIDING PLATE | SLIDING PLATE | 1 | $12.31 | Available | 1 |
| 9 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 10 | 54634120000 SPRING GUIDE | SPRING GUIDE | 1 | — | Obsolete | View Details |
| 11 | 0625069034 BALL BEARING 6903 C4 | BALL BEARING 6903 C4 | 1 | $23.97 | Available | 1 |
| 12 | 54834212200 GEAR SHIFT DRUM | GEAR SHIFT DRUM | 1 | $69.95 | Available | 1 |
| 13 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 14 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | $4.99 | Available | 1 |
| 15 | 54834015133 SHIFT DRUM LOCATING CPL. | SHIFT DRUM LOCATING CPL. | 1 | $56.53 | Available | 1 |
| 16 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 1 | $2.99 | Available | 1 |
| 17 | 0912060083 AH collar screw DIN 912 M6x8 | AH collar screw DIN 912 M6x8 | 1 | $2.99 | Available | 1 |
| 18 | 54634049000 RETAINING PLATE | RETAINING PLATE | 1 | $4.99 | Available | 1 |
| 19 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 | SHIFT. RAIL MAIN SHAFT 250/300 | 1 | $15.06 | Available | 1 |
| 20 | 54834020000 SHIFT. RAIL C. SHAFT 250/300 | SHIFT. RAIL C. SHAFT 250/300 | 1 | $16.16 | Available | 1 |
| 23 | 54834023000 LOCKING LEVER SPRING 03 | LOCKING LEVER SPRING 03 | 1 | $3.99 | Available | 1 |
| 24 | 50334024144 LOCATING LEVER CPL. 08 | LOCATING LEVER CPL. 08 | 1 | $17.15 | Available | 1 |
| 25 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 26 | 0349000050 WASHER DIN7349-5X15X2 | WASHER DIN7349-5X15X2 | 1 | $1.99 | Available | 1 |
| 27 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 1 | $2.99 | Available | 1 |
| 31 | 54834031000 SHIFT LEVER CPL. 250/300 05 | SHIFT LEVER CPL. 250/300 05 | 1 | $107.35 | Available | 1 |
| 32 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 | STEP PLATE FOR SHIFT LEVER 250 | 1 | $37.17 | Available | 1 |
| 33 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | $9.23 | Available | 1 |
| 34 | 54634032100 SHIFTING LEVER SPRING 250 | SHIFTING LEVER SPRING 250 | 1 | $3.99 | Available | 1 |
| 35 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 36 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 37 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 39 | 50233041500 PAIR NORDLOCK WASHER M6 | PAIR NORDLOCK WASHER M6 | 1 | $4.99 | Available | 1 |
| 40 | 0024060156S HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 1 | $2.99 | Available | 1 |
