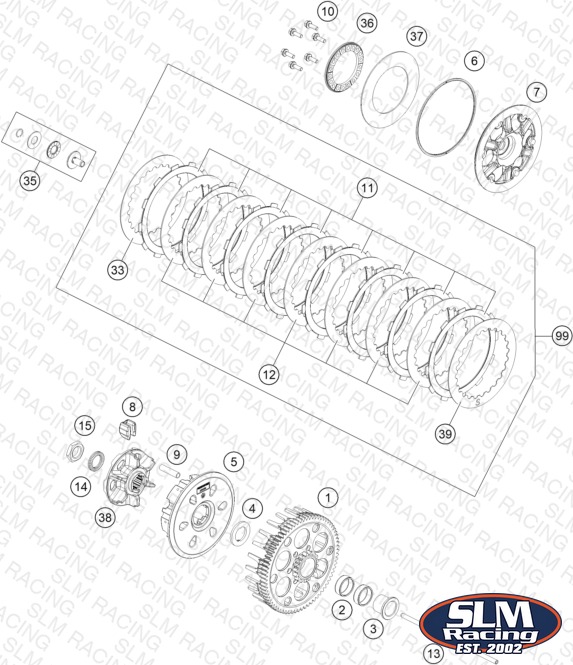

CLUTCH
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A46032001072 Outer clutch hub | Outer clutch hub | 1 | $224.72 | Available | 1 |
| 2 | 0405252910 NEEDLE BEAR K 25X29X10 | NEEDLE BEAR K 25X29X10 | 2 | $10.44 | Available | 2 |
| 3 | A46032015000 Collar sleeve | Collar sleeve | 1 | $16.05 | Available | 1 |
| 4 | 78932009000 WASHER 22 X 36,5 X 3 | WASHER 22 X 36,5 X 3 | 1 | $9.12 | Available | 1 |
| 5 | 78132002400 Inner clutch hub | Inner clutch hub | 1 | $120.66 | Available | 1 |
| 6 | 78132013000 WASHER 112X118X1.5 | WASHER 112X118X1.5 | 1 | $12.75 | Available | 1 |
| 7 | 79432003100 Clutch pressure plate | Clutch pressure plate | 1 | $27.93 | Available | 1 |
| 8 | 78132025100 DAMPING RUBBER | DAMPING RUBBER | 6 | $4.99 | Available | 6 |
| 9 | 77232104000 Sleeve, 7.95x38 | Sleeve, 7.95x38 | 6 | $3.99 | Available | 6 |
| 10 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 6 | $2.99 | Available | 6 |
| 11 | 79532011000 Lining disc 1,95mm | Lining disc 1,95mm | 8 | $26.39 | Available | 8 |
| 12 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | $12.86 | Available | 7 |
| 13 | A46032054000 Push rod | Push rod | 1 | $11.65 | Available | 1 |
| 14 | 0252012002900 Wedge lock washer 19.5x29x3.4 | Wedge lock washer 19.5x29x3.4 | 1 | $3.99 | Available | 1 |
| 15 | 0936181506 Hex nut DIN0936-M18x1.5 right | Hex nut DIN0936-M18x1.5 right | 1 | $3.99 | Available | 1 |
| 33 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | $11.54 | Available | 1 |
| 35 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | $30.68 | Available | 1 |
| 36 | 78132006200 Spring retainer | Spring retainer | 1 | $12.75 | Available | 1 |
| 37 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I | BELLEVILLE SPRING 71X115X1,5 I | 1 | $37.61 | Available | 1 |
| 38 | 78132002211 Clutch center | Clutch center | 1 | $78.97 | Available | 1 |
| 39 | 78932010000 INTERMEDIATE DISC 1MM | INTERMEDIATE DISC 1MM | 1 | $14.18 | Available | 1 |
| 99 | 79532010033 Clutch plate pack | Clutch plate pack | 1 | $246.06 | Available | 1 |
