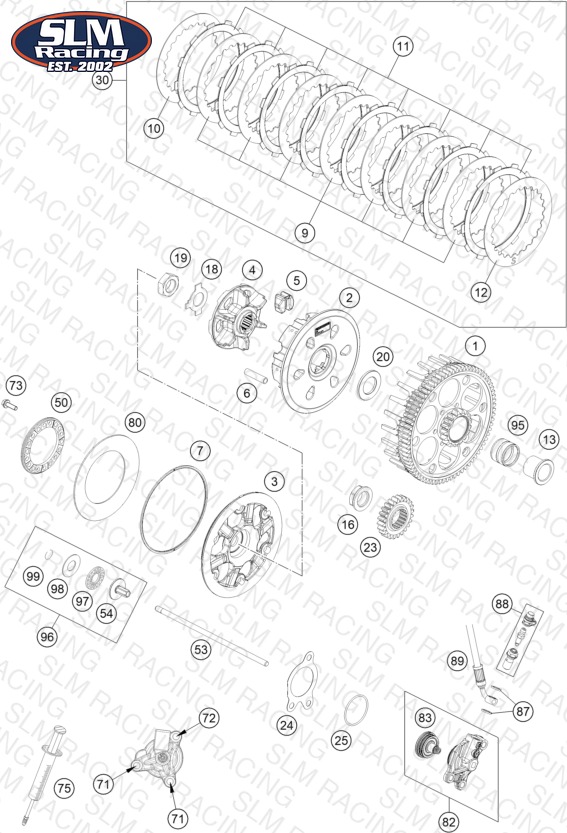

CLUTCH
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79232201073 CLUTCH BASKET EXC | CLUTCH BASKET EXC | 1 | $316.24 | Available | 1 |
| 2 | 78132002400 Inner clutch hub | Inner clutch hub | 1 | $120.66 | Available | 1 |
| 3 | 79432003100 Clutch pressure plate | Clutch pressure plate | 1 | $27.93 | Available | 1 |
| 4 | 78132002211 Clutch center | Clutch center | 1 | $78.97 | Available | 1 |
| 5 | 78132025100 DAMPING RUBBER | DAMPING RUBBER | 6 | $4.99 | Available | 6 |
| 6 | 77232004000 DRIVING SLEEVE D=7,95 L=38 | DRIVING SLEEVE D=7,95 L=38 | 6 | $3.99 | Available | 6 |
| 7 | 78132013000 WASHER 112X118X1.5 | WASHER 112X118X1.5 | 1 | $12.75 | Available | 1 |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | $12.86 | Available | 7 |
| 10 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | $11.54 | Available | 1 |
| 11 | 79532011000 Lining disc 1,95mm | Lining disc 1,95mm | 8 | $26.39 | Available | 8 |
| 12 | 78932010000 INTERMEDIATE DISC 1MM | INTERMEDIATE DISC 1MM | 1 | $14.18 | Available | 1 |
| 13 | 77232015000 INNER RING | INNER RING | 1 | $24.30 | Available | 1 |
| 16 | 0910001801000S Nut M18x1.5 Precote | Nut M18x1.5 Precote | 1 | $5.05 | Available | 1 |
| 18 | 78132018000 TAB WASHER | TAB WASHER | 1 | $6.92 | Available | 1 |
| 19 | 0009361800800S Hex nut DIN0936-M18x1.5 right | Hex nut DIN0936-M18x1.5 right | 1 | $8.68 | Available | 1 |
| 20 | 77232009000 WASHER 21,8 X 37 X 5,1 | WASHER 21,8 X 37 X 5,1 | 1 | $9.56 | Available | 1 |
| 23 | 79232023124 gear primary drive | gear primary drive | 1 | $119.34 | Available | 1 |
| 24 | 79232065000 GASKET FOR OUTPUT CYLINDER | GASKET FOR OUTPUT CYLINDER | 1 | $9.12 | Available | 1 |
| 25 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 30 | 79532010033 Clutch plate pack | Clutch plate pack | 1 | $246.06 | Available | 1 |
| 50 | 78132006200 Spring retainer | Spring retainer | 1 | $12.75 | Available | 1 |
| 53 | 79232054000 PUSH ROD | PUSH ROD | 1 | $21.66 | Available | 1 |
| 54 | 78032057000 PRESSURE PIECE | PRESSURE PIECE | 1 | $30.68 | Available | 1 |
| 71 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 72 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 1 | $3.99 | Available | 1 |
| 73 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 6 | $2.99 | Available | 6 |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 80 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I | BELLEVILLE SPRING 71X115X1,5 I | 1 | $37.61 | Available | 1 |
| 82 | A54032061044 Slave cilynder | Slave cilynder | 1 | $120.44 | Available | 1 |
| 87 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 2 | $3.99 | Available | 2 |
| 88 | A54013094000 kit bleeder M8 | kit bleeder M8 | 1 | $43.11 | Available | 1 |
| 89 | A54032063000 clutch hose | clutch hose | 1 | $85.68 | Available | 1 |
| 95 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 96 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | $30.68 | Available | 1 |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
| 83 | A54032066000 kit piston | kit piston | 1 | $61.37 | Backorder — Restocking | 1 |
