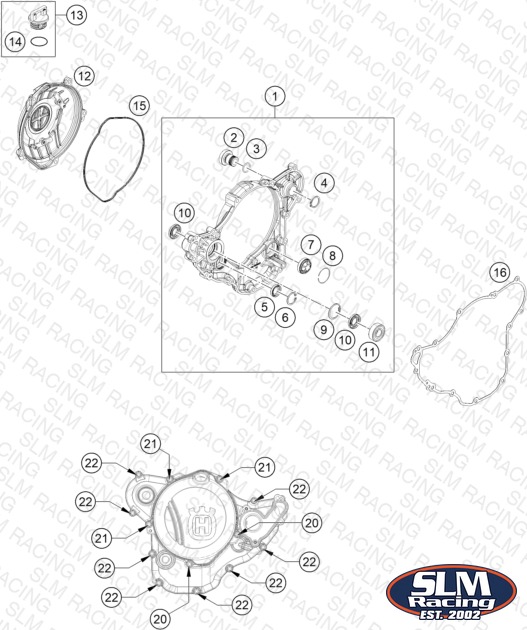

CLUTCH COVER
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79230101044 CLUTCH COVER CPL. | CLUTCH COVER CPL. | 1 | $252.00 | Available | 1 |
| 2 | 83033056100 KICK STARTER PLUG | KICK STARTER PLUG | 1 | $19.79 | Available | 1 |
| 3 | 0770160021 O-ring 16x2 Viton 75 | O-ring 16x2 Viton 75 | 1 | $3.99 | Available | 1 |
| 4 | 0471190120 CIRCLIP DIN0471-19X1,2 | CIRCLIP DIN0471-19X1,2 | 1 | $1.99 | Available | 1 |
| 5 | 0760142450 SHAFT SEAL RING 14X24X5 VITON | SHAFT SEAL RING 14X24X5 VITON | 1 | $18.91 | Available | 1 |
| 6 | 0472024120 CIRCLIP DIN0472-24X1.2 | CIRCLIP DIN0472-24X1.2 | 1 | $1.99 | Available | 1 |
| 7 | 59030019200 OIL SIGHT GLASS | OIL SIGHT GLASS | 1 | $25.07 | Available | 1 |
| 8 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 | CIRCLIP OIL LEVEL GLASS 03 | 1 | $1.99 | Available | 1 |
| 9 | 0472300120 CIRCLIP 30X1,2 | CIRCLIP 30X1,2 | 1 | $1.99 | Available | 1 |
| 10 | 07601530451 SHAFT SEAL RING 15X30X4.5 BAUD | SHAFT SEAL RING 15X30X4.5 BAUD | 2 | $8.02 | Available | 2 |
| 11 | 0625062022 BALL BEARING 6202 C0 2 | BALL BEARING 6202 C0 2 | 1 | $17.04 | Available | 1 |
| 12 | 79230726144JA Clutch cover outside | Clutch cover outside | 1 | $119.56 | Available | 1 |
| 13 | 79430020033 Oil filler cap cmpl. M24x3 | Oil filler cap cmpl. M24x3 | 1 | $9.45 | Available | 1 |
| 14 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 15 | 79230027000 CLUTCH COVER GASKET OUTSIDE | CLUTCH COVER GASKET OUTSIDE | 1 | $15.61 | Available | 1 |
| 16 | 79230125000 CLUTCH COVER GASKET | CLUTCH COVER GASKET | 1 | $25.62 | Available | 1 |
| 20 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $3.99 | Available | 2 |
| 21 | 0025060456 HH COLLAR SCREW M6X45 TX30 | HH COLLAR SCREW M6X45 TX30 | 3 | $2.99 | Available | 3 |
| 22 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 8 | $3.99 | Available | 8 |
