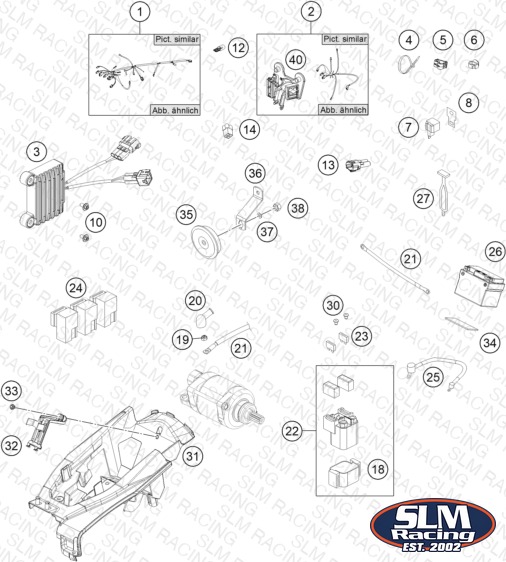

WIRING HARNESS
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 8 | 58211031100 BRACKET FOR FLASHER RELAY | BRACKET FOR FLASHER RELAY | 1 | — | Check availability | |
| 6 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | — | — | Check availability | |
| 3 | 79611034000 VOLTAGE REGULATOR | VOLTAGE REGULATOR | 1 | — | Check availability | |
| 4 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | — | — | Check availability | |
| 1 | 79611075000 MAIN WIRING HARNESS | MAIN WIRING HARNESS | 1 | — | Check availability | |
| 2 | 77711079000 WIRING HARNESS LIGHT CPL. EU | WIRING HARNESS LIGHT CPL. EU | 1 | — | Check availability | |
| 4 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | — | — | Check availability | |
| 4 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | — | — | Check availability | |
| 14 | 81211096000 DUMMY PLUG AN 4-PIN | DUMMY PLUG AN 4-PIN | 1 | — | Check availability | |
| 19 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | — | Check availability | |
| 20 | 77240099000 Protection cap for starter eng | Protection cap for starter eng | 1 | — | Check availability | |
| 21 | 58411059100 STARTERCABLE 700 MM '97 | STARTERCABLE 700 MM '97 | 2 | — | Check availability | |
| 22 | 58211058000 Starter reley 12V 99 | Starter reley 12V 99 | 1 | — | Check availability | |
| 24 | 61111057000 RELAY CM1A-R-12V-H80 07 | RELAY CM1A-R-12V-H80 07 | 3 | — | Check availability | |
| 25 | 58711086000 WIRING HARNESS BATTERY DUKE'99 | WIRING HARNESS BATTERY DUKE'99 | 1 | — | Check availability | |
| 26 | 77311953000 LITHIUM ION BATTERY 5S | LITHIUM ION BATTERY 5S | 1 | — | Check availability | View Details |
| 27 | 50303018000 RUBBER L=145MM | RUBBER L=145MM | 1 | — | Check availability | |
| 30 | 0902060083 Oval head screw ISO 7380 M 6X8 | Oval head screw ISO 7380 M 6X8 | 2 | — | Check availability | |
| 31 | 25011055100 BATTERY BOX | BATTERY BOX | 1 | — | Check availability | |
| 32 | 79011056100 BATTERY BOX SUPPORT | BATTERY BOX SUPPORT | 1 | — | Check availability | |
| 33 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 | SPECIAL SCREW M6X12,5 WS=8 | 1 | — | Check availability | |
| 35 | 50311060200 DC HORN 12V 07 | DC HORN 12V 07 | 1 | — | Check availability | |
| 36 | 78011061000 HORN BRACKET EXC 08 | HORN BRACKET EXC 08 | 1 | — | Check availability | |
| 37 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 1 | — | Check availability | |
| 38 | 0934050003 HEXAGON NUT DIN0934-M 5 | HEXAGON NUT DIN0934-M 5 | 1 | — | Check availability | |
| 40 | 77711083000 SUPPORT BRACKET | SUPPORT BRACKET | 1 | — | Check availability | |
| 6 | 57013072100 WIRING HOLDER 16MM | WIRING HOLDER 16MM | — | — | Check availability | |
| 34 | 59003001099 METAMOLL 90X45X3MM 03 | METAMOLL 90X45X3MM 03 | 1 | — | Check availability | |
| 5 | 83013026000 Line guide | Line guide | 2 | — | Check availability | |
| 7 | 76511030000 FLASHER UNIT | FLASHER UNIT | 1 | — | Check availability | |
| 10 | 0024060156 HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 2 | — | Check availability | |
| 12 | 49111425200 BULB 12V 2,3W (W2X4,6D) | BULB 12V 2,3W (W2X4,6D) | 3 | — | Check availability | |
| 23 | 58011109120 Plug-in fuse, big 20A | Plug-in fuse, big 20A | 2 | — | Check availability | |
| 13 | 69011040000 END PLUG CAN-BUS 08 | END PLUG CAN-BUS 08 | 1 | — | Check availability | View Details |
| 18 | 58211058050 BRACKET RUBBER F.STARTRELAY 07 | BRACKET RUBBER F.STARTRELAY 07 | 1 | — | Check availability |
