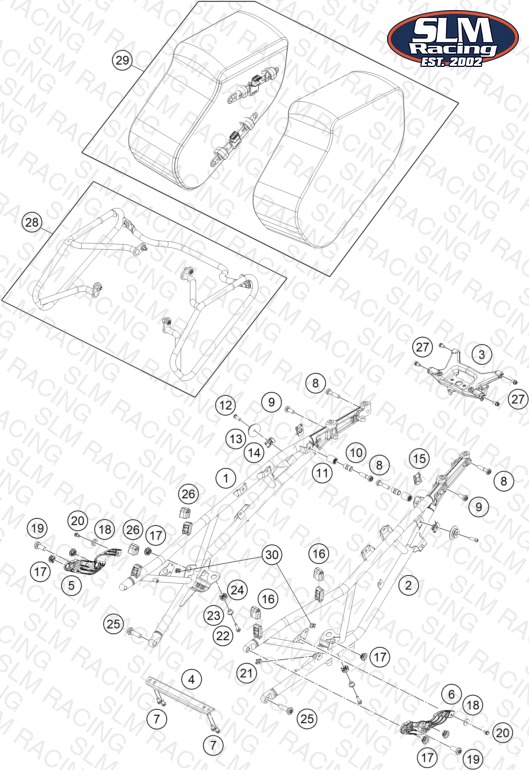

SUBFRAME
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 63703102006C1 Subframe right | Subframe right | 1 | $399.84 | Available | 1 |
| 2 | 63703102005C1 Subframe left | Subframe left | 1 | $398.19 | Available | 1 |
| 3 | 63508019050 Rear reinforcement | Rear reinforcement | 1 | $44.98 | Available | 1 |
| 4 | 6350300200733 Cross member, black | Cross member, black | 1 | $132.43 | Available | 1 |
| 5 | 22103102031 Right side fairing bracket | Right side fairing bracket | 1 | $20.67 | Available | 1 |
| 6 | 22103102021 Left side fairing bracket | Left side fairing bracket | 1 | $20.67 | Available | 1 |
| 7 | 0025060126S Hex collar screw M6x12 ISA30 s | Hex collar screw M6x12 ISA30 s | 4 | $1.99 | Available | 4 |
| 8 | 0000350803500S ISA collar screw, M8x35, MK-IS | ISA collar screw, M8x35, MK-IS | 4 | $2.99 | Available | 4 |
| 9 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 2 | $6.26 | Available | 2 |
| 10 | 0800000802300 Bushing, 8.4x12x23 | Bushing, 8.4x12x23 | 2 | $3.99 | Available | 2 |
| 11 | 60307048000 RUBBER SEAT-CONTACT SURFACE | RUBBER SEAT-CONTACT SURFACE | 2 | $6.70 | Available | 2 |
| 12 | 0738060205S Oval head screw ISR M6x20-A2-7 | Oval head screw ISR M6x20-A2-7 | 2 | $1.99 | Available | 2 |
| 13 | 63508040120 Socket sliding seat | Socket sliding seat | 2 | $6.15 | Available | 2 |
| 14 | 54603048100 clip nut M6 | clip nut M6 | 2 | $4.99 | Available | 2 |
| 15 | 54603048000 RANGE CHANGE METAL NUT M8 | RANGE CHANGE METAL NUT M8 | 2 | $4.99 | Available | 2 |
| 16 | 63503002090 Rubber seat cowl pad | Rubber seat cowl pad | 2 | $2.99 | Available | 2 |
| 17 | 47106003160 quick release rubber grommet | quick release rubber grommet | 6 | $4.99 | Available | 6 |
| 18 | 59032006000 SPRING RETAINER 6,2X12X18X3,6 | SPRING RETAINER 6,2X12X18X3,6 | 2 | $2.99 | Available | 2 |
| 19 | 0035100249S HH collar screw M10x24 ISA45 S | HH collar screw M10x24 ISA45 S | 2 | $2.99 | Available | 2 |
| 21 | 69008021080 clip nut M5 | clip nut M5 | 1 | $3.99 | Available | 1 |
| 22 | 0025050206S Hex collar screw, M5x20 ISA30 | Hex collar screw, M5x20 ISA30 | 2 | $1.99 | Available | 2 |
| 23 | 61314062050 Collar bushing 5.5x9x15x8.5 | Collar bushing 5.5x9x15x8.5 | 2 | $6.37 | Available | 2 |
| 24 | 62142041000 DAMP. COMPONENT ABS MODUL | DAMP. COMPONENT ABS MODUL | 2 | $4.99 | Available | 2 |
| 25 | 0035100356S ISA screw M10x35 ISA45 | ISA screw M10x35 ISA45 | 2 | $6.92 | Available | 2 |
| 26 | 63503002093 Retain. brack., seat cowl pad | Retain. brack., seat cowl pad | 2 | $2.99 | Backorder — Restocking | 2 |
| 27 | 0025060106S Hex collar screw M6x10 ISA30 S | Hex collar screw M6x10 ISA30 S | 4 | $1.99 | Available | 4 |
| 28 | 22112920044 Side bag carrier | Side bag carrier | 1 | $271.99 | Available | 1 |
| 29 | 22112925144 Side bag set | Side bag set | 1 | $399.99 | Available | 1 |
| 20 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 | SPECIAL SCREW M6X13 WS=8 10.9 | 2 | $2.99 | Available | 2 |
| 30 | 93008084010 Range change metal nut M6 | Range change metal nut M6 | 2 | $1.99 | Available | 2 |
