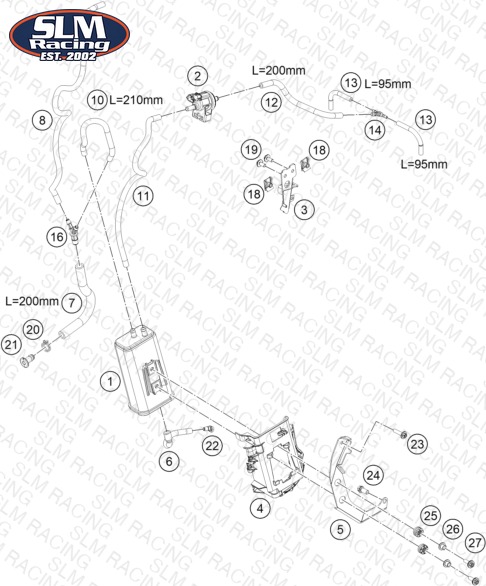

EVAPORATIVE CANISTER
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 75015001200 CARBON CANISTER | CARBON CANISTER | 1 | — | Check availability | |
| 2 | 76015015000 EVAP valve | EVAP valve | 1 | — | Check availability | |
| 3 | 63515026010 Retaining bracket ACF valve cp | Retaining bracket ACF valve cp | 1 | — | Check availability | |
| 4 | 63515003010 Hose clip ACF | Hose clip ACF | 1 | — | Check availability | |
| 5 | 6351500201033 Retaining bracket ACF | Retaining bracket ACF | 1 | — | Check availability | |
| 6 | 63515021000 ventilation hose evap.can. | ventilation hose evap.can. | 1 | — | Check availability | |
| 7 | 78015119000 HOSE EPA D=10/16 L=2000MM | HOSE EPA D=10/16 L=2000MM | 1 | — | Check availability | |
| 8 | 22115122000 Pre-formed hose, tank insert/A | Pre-formed hose, tank insert/A | 1 | — | Check availability | |
| 10 | 78015019000 HOSE EPA D=6/10 L=2000MM | HOSE EPA D=6/10 L=2000MM | 1 | — | Check availability | |
| 11 | 63515028000 Hose ACF purge valve | Hose ACF purge valve | 1 | — | Check availability | |
| 12 | 78015019000 HOSE EPA D=6/10 L=2000MM | HOSE EPA D=6/10 L=2000MM | 1 | — | Check availability | |
| 13 | 78015021000 HOSE EPA D=4/8 L=2000MM | HOSE EPA D=4/8 L=2000MM | 2 | — | Check availability | |
| 14 | 64115026000 Hose connection nozzles | Hose connection nozzles | 1 | — | Check availability | |
| 16 | 61315028100 Y-CONNECTOR YS 6-10-6 | Y-CONNECTOR YS 6-10-6 | 1 | — | Check availability | |
| 18 | 54603048100 clip nut M6 | clip nut M6 | 2 | — | Check availability | |
| 19 | 0024060136 HH collar screw M6x13 TX30 | HH collar screw M6x13 TX30 | 2 | — | Check availability | |
| 20 | 58431082100 YDNAC-clamp 10173 (16MM) | YDNAC-clamp 10173 (16MM) | 1 | — | Check availability | |
| 21 | 61315026100 Screw plug ACF | Screw plug ACF | 1 | — | Check availability | |
| 22 | 63503098030 Angle piece for overrun | Angle piece for overrun | 1 | — | Check availability | |
| 23 | 0024060256 HH COLLAR SCREW M6X25 TX30 | HH COLLAR SCREW M6X25 TX30 | 1 | — | Check availability | |
| 24 | 0025080166S HH collar screw M8x16 TX40 SL | HH collar screw M8x16 TX40 SL | 1 | — | Check availability | |
| 25 | 62142041000 DAMP. COMPONENT ABS MODUL | DAMP. COMPONENT ABS MODUL | 2 | — | Check availability | |
| 26 | 00185006009U0 Collar bushing 6.1x9.2x15x8.5x | Collar bushing 6.1x9.2x15x8.5x | 2 | — | Check availability | |
| 27 | 69014017000S special screw M6x18-8.8 ISA30 | special screw M6x18-8.8 ISA30 | 2 | — | Check availability |
