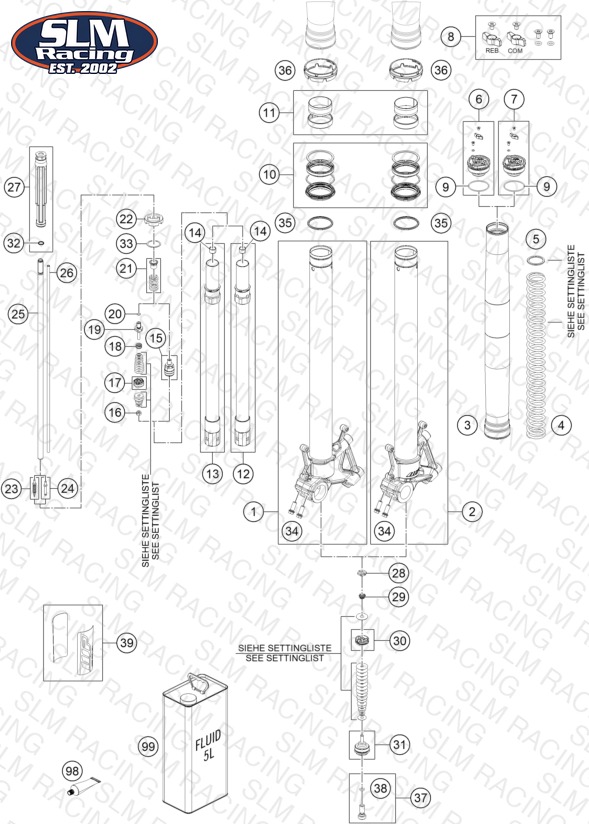

FRONT FORK DISASSEMBLED
Parts (45)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 48601952S1 axle clamp right d48 25mm cpl | axle clamp right d48 25mm cpl | 1 | $561.76 | Available | 1 |
| 2 | 48601951S1 axle clamp left d48 25mm cpl. | axle clamp left d48 25mm cpl. | 1 | $568.14 | Available | 1 |
| 3 | 48601794 Outer tube L567 D54 / D60 | Outer tube L567 D54 / D60 | 2 | $328.34 | Available | 2 |
| 4 | 91410142 Mainspring (44) 6,7-460 fork | Mainspring (44) 6,7-460 fork | 1 | $189.99 | Available | 1 |
| 5 | 48600458 Washer 35x43x1,5 plastic | Washer 35x43x1,5 plastic | — | $2.41 | Available | 1 |
| 5 | 48600456 Washer 35x43x2,5 plastic | Washer 35x43x2,5 plastic | — | $2.41 | Available | 1 |
| 5 | 48600457 Preload bush 35x43x3,5 | Preload bush 35x43x3,5 | — | $2.41 | Available | 1 |
| 6 | 48602028S4 screw cap M51x1,5 rebound cpl. | screw cap M51x1,5 rebound cpl. | 1 | $199.09 | Available | 1 |
| 7 | 48602028S3 screw cap M51x1.5 compression | screw cap M51x1.5 compression | 1 | $199.09 | Available | 1 |
| 8 | RP10021 Adjuster kit screw cap | Adjuster kit screw cap | — | $6.70 | Available | 1 |
| 9 | 48600048 O-ring 46x2 NBR70 siliconized | O-ring 46x2 NBR70 siliconized | 2 | $3.62 | Available | 2 |
| 10 | RP10012 Sealkit 48mm SKF black | Sealkit 48mm SKF black | — | $78.53 | Available | 1 |
| 11 | R14047 Guide bushing set fork 48mm | Guide bushing set fork 48mm | — | $32.99 | Available | 1 |
| 12 | 48600763S3 Tube L350 with screwsleeve and | Tube L350 with screwsleeve and | 1 | $153.88 | Out of Stock | Notify Me |
| 13 | 48600763S4 Tube L350 with screwsleeve | Tube L350 with screwsleeve | 1 | $158.06 | Available | 1 |
| 14 | 48600430 Guide bushing 12x14x10 | Guide bushing 12x14x10 | 2 | $7.58 | Available | 2 |
| 15 | 48601843S2 Tap compression cpl. | Tap compression cpl. | 1 | $57.74 | Out of Stock | Notify Me |
| 16 | 40540486 Nut M6x0,5 h6,5 WAF10 rebound | Nut M6x0,5 h6,5 WAF10 rebound | 1 | $4.83 | Available | 1 |
| 17 | 48602002S Midvalve piston assembly d23 | Midvalve piston assembly d23 | 1 | $21.66 | Available | 1 |
| 18 | 35480377 Spring (11,7) 1,5-8 valve | Spring (11,7) 1,5-8 valve | 1 | $2.41 | Available | 1 |
| 19 | 48600576 Tap 6x46 rebound | Tap 6x46 rebound | 1 | $14.99 | Available | 1 |
| 20 | 48600299 O-ring 6x1,2 NBR70 | O-ring 6x1,2 NBR70 | 1 | $1.20 | Available | 1 |
| 21 | 48601929S rebound spring C60 cpl | rebound spring C60 cpl | 2 | $4.83 | Available | 2 |
| 22 | 48601922 spring support ring | spring support ring | 2 | $20.23 | Available | 2 |
| 23 | 48601096S Needle 4,5x43,6 cpl. | Needle 4,5x43,6 cpl. | 1 | $6.69 | Backorder — Restocking | 1 |
| 24 | 48601558S Needle 4,5x38,2 cpl. | Needle 4,5x38,2 cpl. | 1 | $13.63 | Available | 1 |
| 25 | 48601923 Piston rod 12x501 | Piston rod 12x501 | 2 | $48.50 | Available | 2 |
| 26 | 48601924 Adjuster tube L=471.5 | Adjuster tube L=471.5 | 2 | $7.47 | Available | 2 |
| 27 | S228700003S0100 Stop 12,4x31,9x200,3 kpl. | Stop 12,4x31,9x200,3 kpl. | 2 | $14.95 | Available | 2 |
| 28 | 48600163 Nut valve M6x0,5 h6,5 WAF17 | Nut valve M6x0,5 h6,5 WAF17 | 2 | $3.62 | Available | 2 |
| 29 | 48600202 Spring (8,5) l6,5 valve | Spring (8,5) l6,5 valve | 2 | $2.41 | Available | 2 |
| 30 | 48601934S Piston 6x27,3x9 compression cp | Piston 6x27,3x9 compression cp | 2 | $15.83 | Available | 2 |
| 31 | 48601921 Tap 6x42,5 base valve | Tap 6x42,5 base valve | 2 | $27.05 | Available | 2 |
| 32 | 04500003 O-ring 11x2,5 NBR70 PTFE yello | O-ring 11x2,5 NBR70 PTFE yello | 2 | $1.20 | Available | 2 |
| 33 | 48601702 Shim 27,5x33x0,3 | Shim 27,5x33x0,3 | 2 | $12.64 | Available | 2 |
| 34 | 0025080206 HH collar screw M8x20 | HH collar screw M8x20 | 4 | $2.99 | Available | 4 |
| 35 | 48602007 Stroke indicator 48mm red | Stroke indicator 48mm red | 2 | $4.83 | Available | 2 |
| 36 | 48601986 Fork protection ring 60,1mm | Fork protection ring 60,1mm | 2 | $2.41 | Available | 2 |
| 37 | 48601976S RingISK screw M10x25 with o-ri | RingISK screw M10x25 with o-ri | 2 | $18.91 | Available | 2 |
| 39 | 52000281SET sticker Xplor OC 100x46 | sticker Xplor OC 100x46 | 1 | $58.95 | Available | 1 |
| 98 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | — | $40.69 | Available | 1 |
| 99 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | — | $175.99 | Available | 1 |
| 38 | 35480085 O-ring 7x2 NBR70 | O-ring 7x2 NBR70 | 2 | $1.20 | Available | 2 |
| 4 | 91410162S mainspring (44) 6.2-460 set fo | mainspring (44) 6.2-460 set fo | — | $189.99 | Available | 1 |
| 4 | 91410163S mainspring (44) 7.2-460 set fo | mainspring (44) 7.2-460 set fo | — | $189.99 | Available | 1 |
