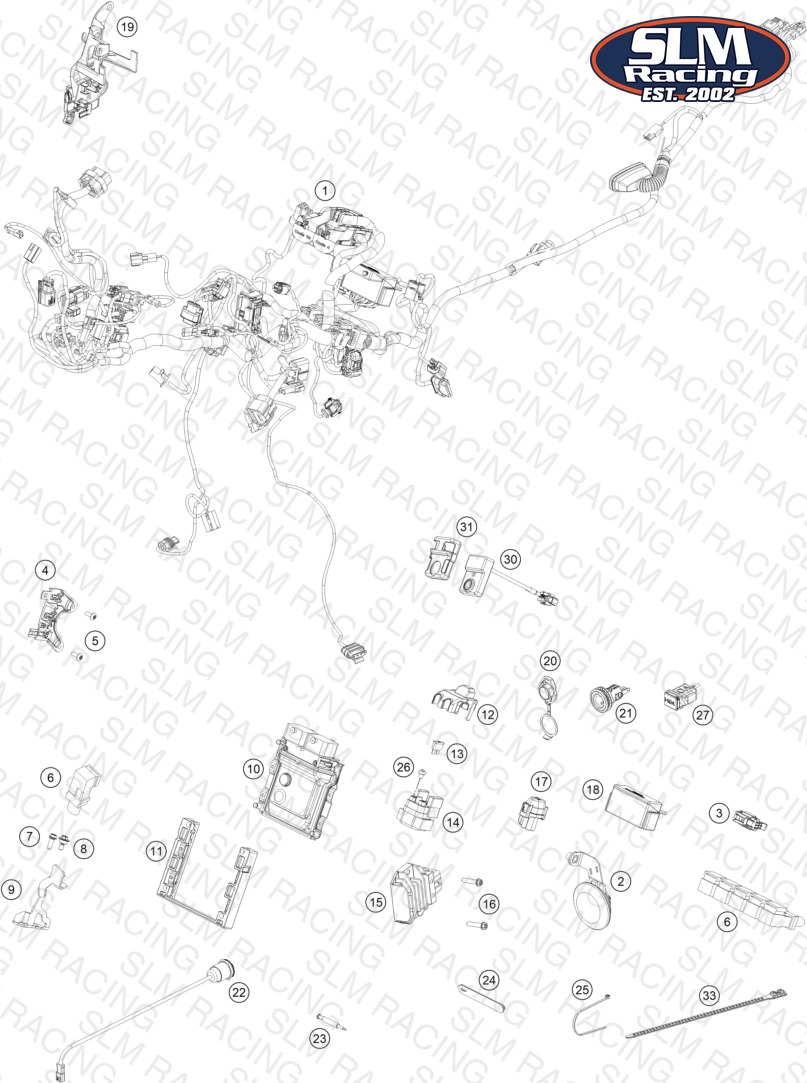

WIRING HARNESS
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 22111475100 Main wiring harness | Main wiring harness | 1 | — | Check availability | |
| 2 | 76011060100 DC HORN 12V | DC HORN 12V | 1 | — | Check availability | |
| 3 | 000700000OU002 Plug cap | Plug cap | 1 | — | Check availability | |
| 4 | A61011083000 CCU control unit support | CCU control unit support | 1 | — | Check availability | |
| 5 | 58605083014 Oval head screw M5x14 TX25 | Oval head screw M5x14 TX25 | 2 | — | Check availability | |
| 6 | 61111057000 RELAY CM1A-R-12V-H80 07 | RELAY CM1A-R-12V-H80 07 | 6 | — | Check availability | |
| 7 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 1 | — | Check availability | |
| 8 | 83008100015 Special screw M6x15x5.5 | Special screw M6x15x5.5 | 1 | — | Check availability | |
| 9 | 22111057050 Bracket, start auxiliary relay | Bracket, start auxiliary relay | 1 | — | Check availability | |
| 10 | A60741031000 EFI control unit | EFI control unit | 1 | — | Check availability | |
| 11 | 63511033050 rubber mount ECU | rubber mount ECU | 1 | — | Check availability | |
| 12 | 64111058110 Cover flap, starter relay | Cover flap, starter relay | 1 | — | Check availability | |
| 13 | 58011109130 Plug-in fuse, big 30A | Plug-in fuse, big 30A | 2 | — | Check availability | |
| 14 | 76211058000 Starter relay | Starter relay | 1 | — | Check availability | |
| 15 | 60311034000 VOLTAGE REGULATOR | VOLTAGE REGULATOR | 1 | — | Check availability | View Details |
| 16 | 0025060256S SK-BUNDSCHRAUBE M6X25 ISA30 | SK-BUNDSCHRAUBE M6X25 ISA30 | 2 | — | Check availability | |
| 17 | 000700000IH Spare Connector IH 4-Pins-BL | Spare Connector IH 4-Pins-BL | 1 | — | Check availability | |
| 18 | 61711087050 Fuse Box | Fuse Box | 1 | — | Check availability | |
| 19 | 22111083000 Front connector support | Front connector support | 1 | — | Check availability | |
| 20 | 60311042050 Lid 12V-socket | Lid 12V-socket | 1 | — | Check availability | |
| 21 | 60711042000 Power socket 12V | Power socket 12V | 1 | — | Check availability | |
| 22 | 60311910010 FRONT FOG LIGHT SWITCH | FRONT FOG LIGHT SWITCH | 1 | — | Check availability | |
| 23 | 61111018100 Temperatur sensor | Temperatur sensor | 1 | — | Check availability | |
| 24 | 60011093075 RUBBER CABLE TIE 75MM 03 | RUBBER CABLE TIE 75MM 03 | 1 | — | Check availability | |
| 25 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | 0 | — | Check availability | |
| 25 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 0 | — | Check availability | |
| 25 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 0 | — | Check availability | |
| 26 | 0902060083 Oval head screw ISO 7380 M 6X8 | Oval head screw ISO 7380 M 6X8 | 2 | — | Check availability | |
| 27 | 64111043000 USB power socket 12 V | USB power socket 12 V | 1 | — | Check availability | |
| 33 | 0330000726000 Cable tie flexible 7x260 | Cable tie flexible 7x260 | 0 | — | Check availability | |
| 30 | 79114086100 Connectivity unit | Connectivity unit | 1 | — | Check availability | |
| 31 | 79114086050 Rubber support, CCU | Rubber support, CCU | 1 | — | Check availability |
