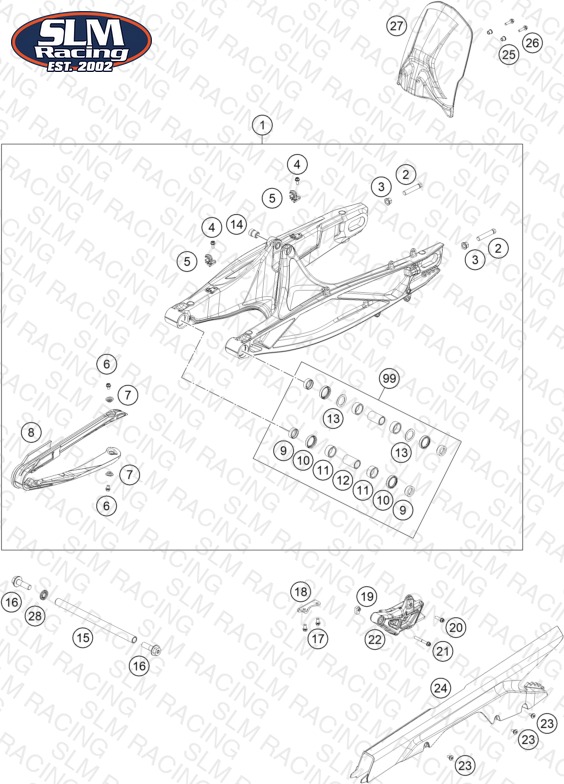

SWING ARM
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 6350403004433 Swingarm cpml. Black | Swingarm cpml. Black | 1 | $927.18 | Available | 1 |
| 2 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | $6.15 | Available | 2 |
| 3 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | $2.99 | Available | 2 |
| 4 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | $3.99 | Available | 2 |
| 5 | 60104142000 Clamp | Clamp | 2 | $2.99 | Available | 2 |
| 6 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 2 | $1.99 | Available | 2 |
| 7 | 46104066050 BUSH FOR CHAINSLIDER GUARD 02 | BUSH FOR CHAINSLIDER GUARD 02 | 2 | $9.78 | Available | 2 |
| 8 | 64104066000 chain slide protection | chain slide protection | 1 | $29.14 | Available | 1 |
| 9 | 54804034000 Bucket f. shaft seal ring 03 | Bucket f. shaft seal ring 03 | 4 | $15.83 | Available | 4 |
| 10 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 11 | 0618222812 Needle bushing HK2212V 22/28/1 | Needle bushing HK2212V 22/28/1 | 4 | $11.54 | Available | 4 |
| 12 | 59404032000 Bearing sleeve 17x22x38.7 03 | Bearing sleeve 17x22x38.7 03 | 2 | $11.87 | Available | 2 |
| 13 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 14 | A63604030020 Shock absorber support bushing | Shock absorber support bushing | 1 | $10.99 | Available | 1 |
| 15 | 64104037000 swing arm bolt | swing arm bolt | 1 | $69.18 | Available | 1 |
| 16 | 76504038000 Special screw M12x40 WS19 | Special screw M12x40 WS19 | 2 | $21.33 | Available | 2 |
| 17 | 0025060126S Hex collar screw M6x12 ISA30 s | Hex collar screw M6x12 ISA30 s | 2 | $1.99 | Available | 2 |
| 18 | 63504030010 Retaining bracket, chain guide | Retaining bracket, chain guide | 1 | $28.70 | Available | 1 |
| 19 | 77304070030 INSERTION NUT F. CHAIN GUIDE | INSERTION NUT F. CHAIN GUIDE | 1 | $10.44 | Available | 1 |
| 20 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $2.99 | Available | 1 |
| 21 | 0025060456 HH COLLAR SCREW M6X45 TX30 | HH COLLAR SCREW M6X45 TX30 | 1 | $2.99 | Available | 1 |
| 22 | 78004070100 CHAIN GUIDE CPL. | CHAIN GUIDE CPL. | 1 | $51.69 | Available | 1 |
| 23 | 69008021160 special screw M5x12 | special screw M5x12 | 3 | $4.99 | Available | 3 |
| 24 | 22104061000 Chainguard | Chainguard | 1 | $39.39 | Available | 1 |
| 25 | 64104150010 Bushing 5.5x8.3x9 | Bushing 5.5x8.3x9 | 2 | $2.99 | Available | 2 |
| 26 | 0025050206S Hex collar screw, M5x20 ISA30 | Hex collar screw, M5x20 ISA30 | 2 | $1.99 | Available | 2 |
| 27 | 63504050000 splash protection swingarm | splash protection swingarm | 1 | $16.60 | Available | 1 |
| 28 | 0252011302500 Wedge lock washer DIN 25201-13 | Wedge lock washer DIN 25201-13 | 1 | $3.99 | Available | 1 |
| 99 | 79004030010 SWING ARM REPAIR KIT SX-F | SWING ARM REPAIR KIT SX-F | 1 | $153.00 | Available | 1 |
